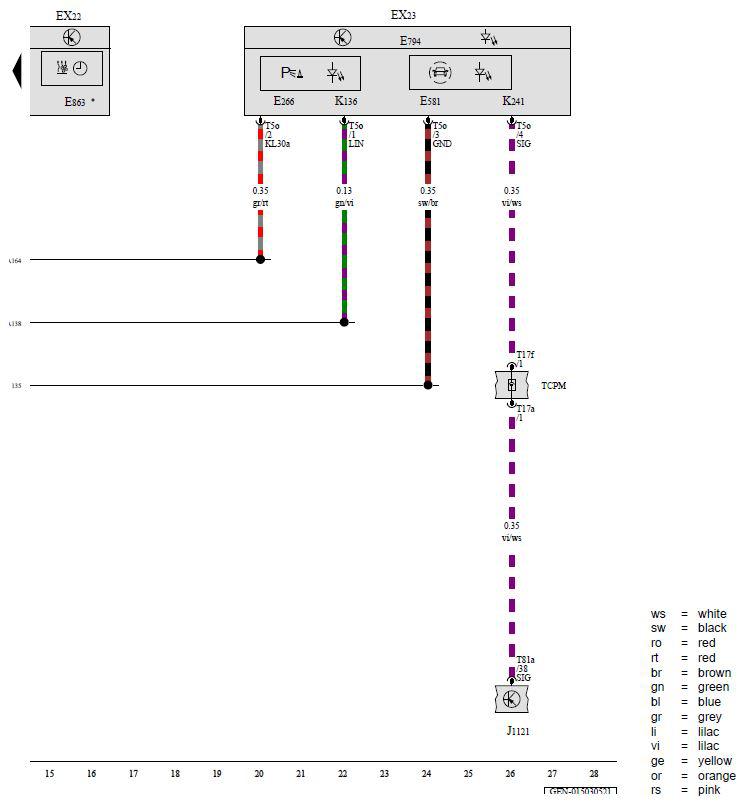

Center Instrument Panel Switch Module, Center Console Switch Module 1, Driver Assistance Systems Control Module
EX22 - Center Instrument Panel Switch Module
EX23 - Center Console Switch Module 1
E266 - Parking Aid Button
E581 - Parallel Parking Assistance Button
E794 - Control Unit 2 for Driving and Convenience Functions
E863 - Auxiliary Coolant Heater Button
J1121 - Driver Assistance Systems Control Module
K136 - Parking Aid Indicator Lamp
K241 - Parallel Parking Assistance Indicator Lamp
T5o - 5-Pin Connector, Black
T17a - 17-Pin Connector, Red
T17f - 17-Pin Connector, Red
T81a - 81-Pin Connector, Black
TCPM - Coupling Point on Instrument Panel, Center
135 - Ground Connection 2 (in Instrument Panel Wiring Harness)
A138 - Connection 2 (in Instrument Panel Wiring Harness)
A164 - Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
* - Depending on Equipment
