Spring, Removing And Installing, Coil Spring: Notes

Special tools and workshop equipment required

WARNING:
  • Before removing and installing the coil spring the :VAS6274  with the :VAS6274/10  must be retrofitted.
  • Retrofit the :VAS6274  with the :VAS6274/10  . Refer to SPRING TENSIONING SYSTEM, CONVERTING .
NOTE:

The rest of the tools from the :VAS6274/10  are needed later in the procedure.

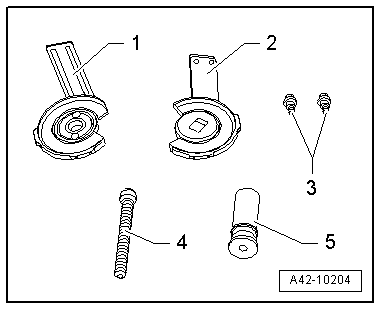

GWWA42-10204Courtesy of AUDI OF AMERICA, LLC
  1. : VAS6274/10-1
  2. : VAS6274/10-2
  3. Locking device Bolts
  4. : VAS6274/10-4
  5. Sleeve
