Steering Column, Removing And Installing: Installing
Install in reverse order of removal while noting the following:

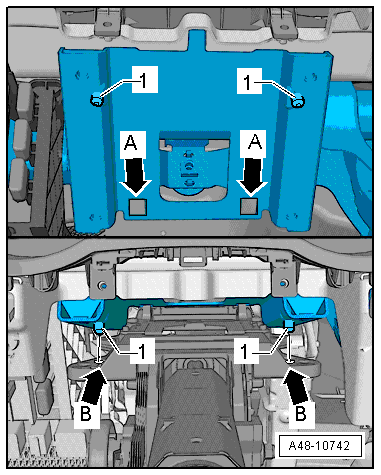

-- Hook the steering column into assembly aid on mounting bracket -A arrows-.
-- Align the steering column to the mounting bracket and install.
- While doing so, pins -1- of mounting bracket and holes -B arrows- of the steering column must be positioned together and inserted into one another.
- Only in this way is the correct installation position of steering column to mounting bracket guaranteed.

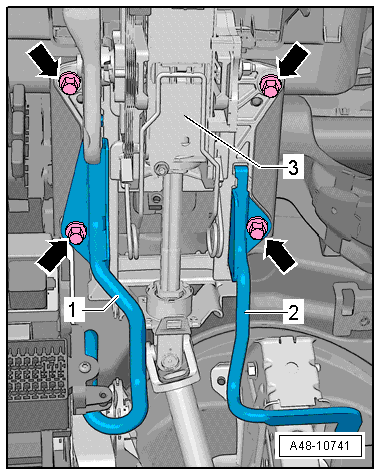

-- Tighten the upper bolts -arrows- for the steering column -3-.
-- If equipped, insert the crash bolsters -1 and 2- and tighten the lower bolts -arrows- of the steering column bolted connections.
WARNING:

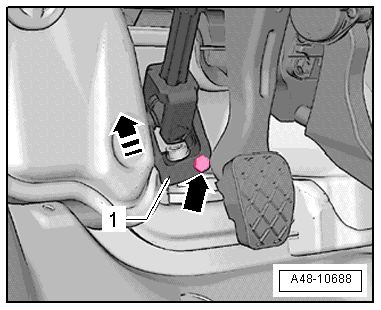

Pull on the universal joint to make sure it is secure when the bolt -arrow- is installed. Then tighten the bolt -arrow-.
- After installing the steering column switch module, the Steering Angle Sensor -G85- must be calibrated by starting the respective program on the Vehicle Diagnostic Tester.
