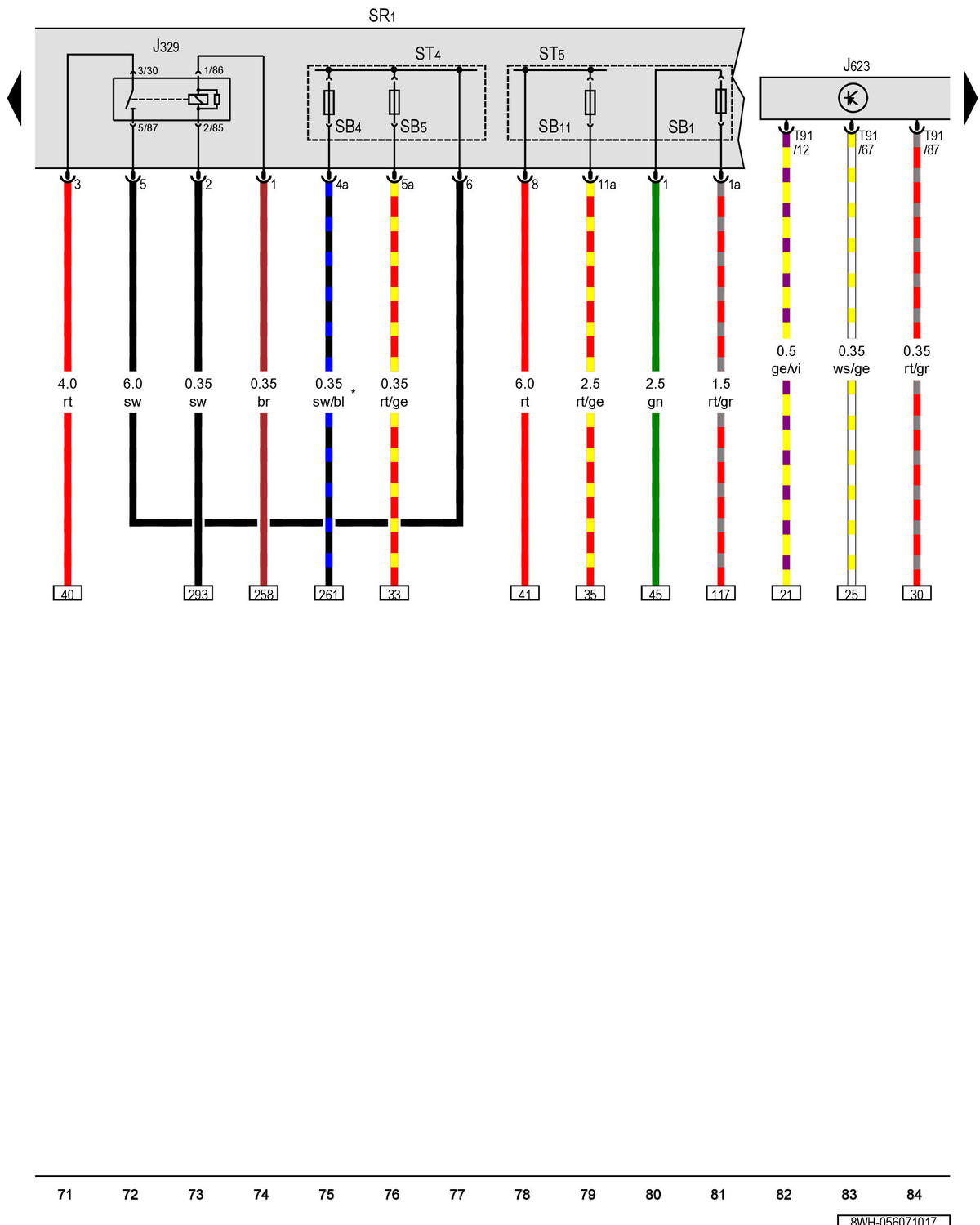

Terminal 15 Power Supply Relay, Engine/Motor Control Module, Relay And Fuse Panel 1: Notes

GWW8WH-056071017

Courtesy of AUDI OF AMERICA, LLC
