Home >> Audi >> 2017 >> A4 Prestige >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Wiring Diagram [CYMC] >> Wiring Diagrams >> Oil Level Thermal Sensor, Engine/Motor Control Module >> Notes

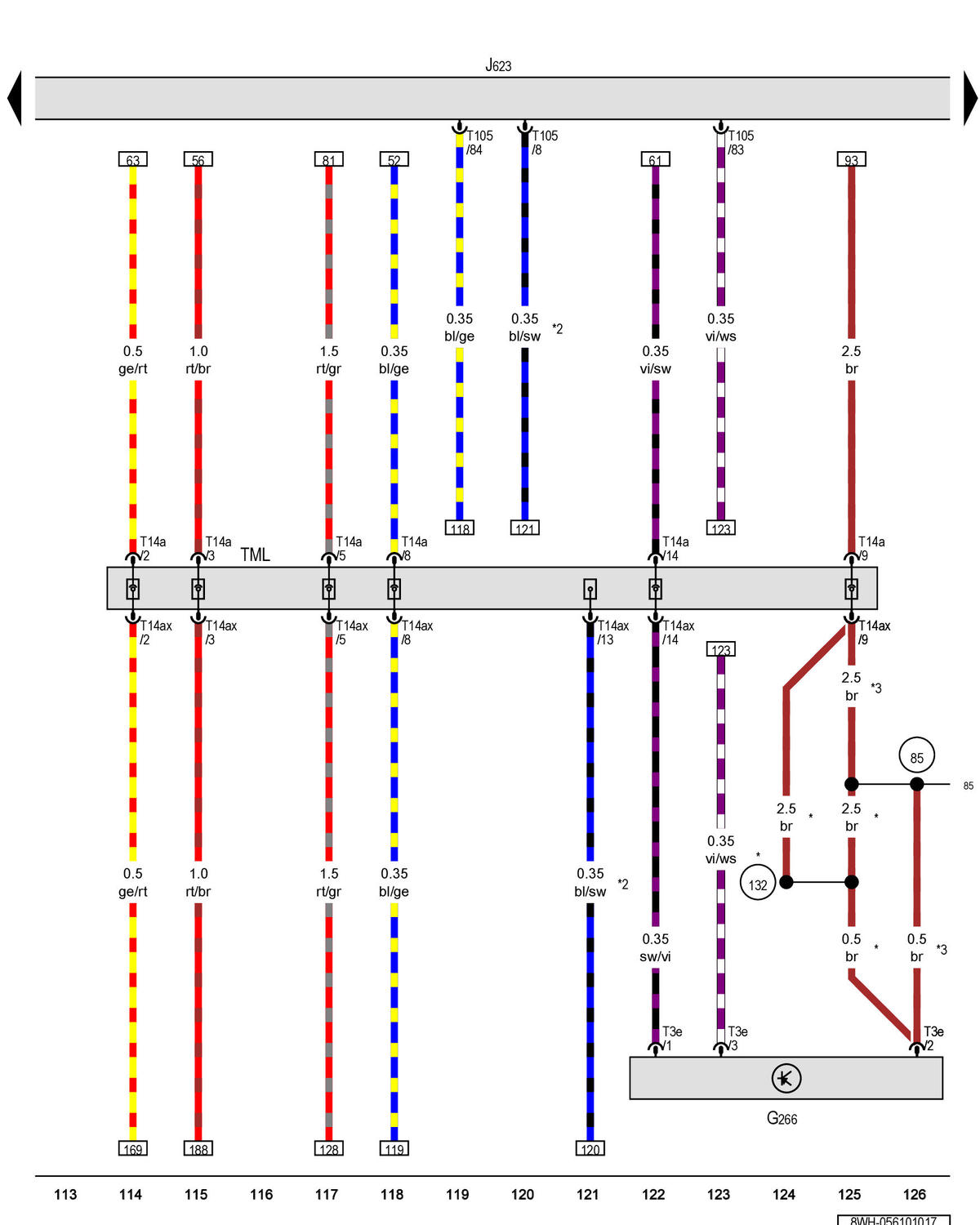

Oil Level Thermal Sensor, Engine/Motor Control Module: Notes

GWW8WH-056101017

Courtesy of AUDI OF AMERICA, LLC
