Wiring Diagram [CYMC]
>>
Wiring Diagrams
>>

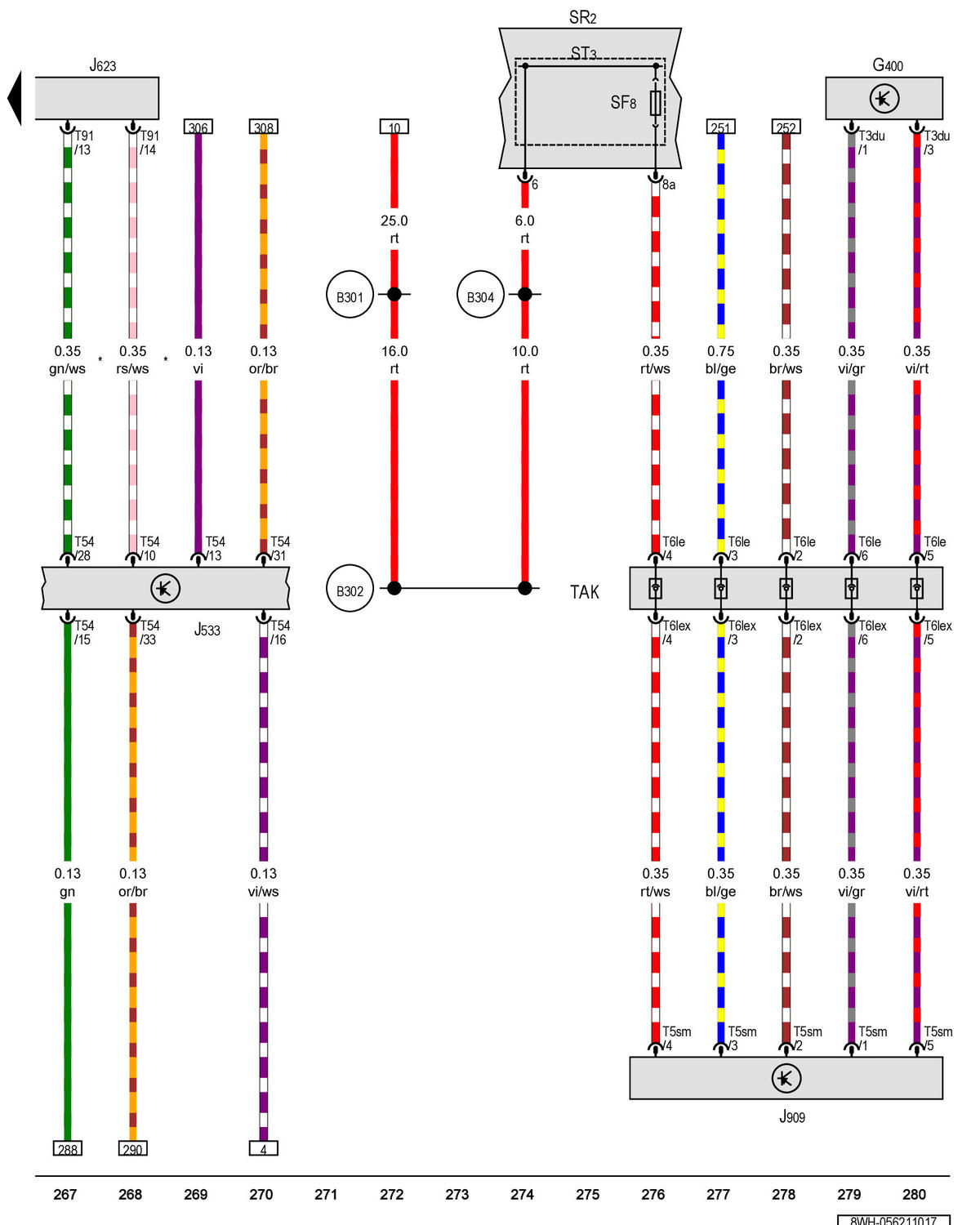

Fuel Tank Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Relay And Fuse Panel 2
>>
Notes
Fuel Tank Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Relay And Fuse Panel 2: Notes
Courtesy of AUDI OF AMERICA, LLC
