Transmission, Transporting
Special tools and workshop equipment required
- Engine Sling: 2024A
- Shop Crane: VAS6100
Procedure

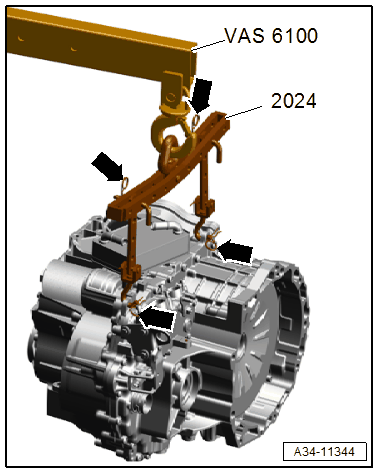

-- Engage the : 2024A to the transmission lifting eyes and secure with the securing pins -arrows-.
-- Engage the : VAS6100 to the : 2024A .
CAUTION:
Risk of Damaging the Transmission Fluid Cooler.
- Guide the transmission when transporting.
