Overview - Center Console, Front Center Console: Notes

Support with Attachments

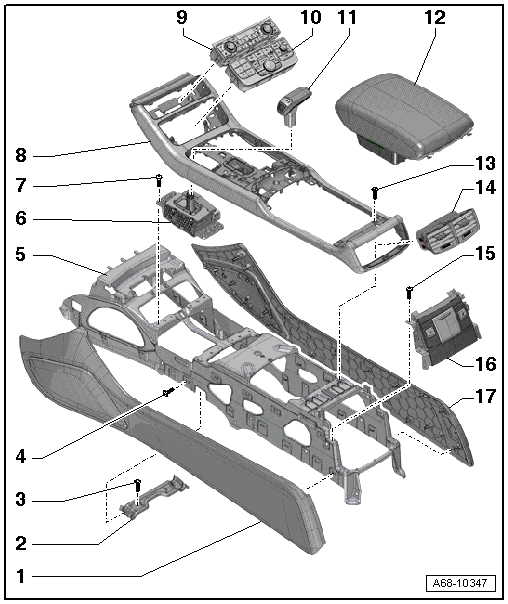

Fig 1: Exploded View Of Front Center Console

Courtesy of AUDI OF AMERICA, LLC

1. Side Trim Panel
   • Replace damaged or deformed retaining clips
   • For the center console
   • Vehicle versions
   • Removing and installing, refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
2. Bracket
   • Quantity: 2
   • For the center console
   • Removing and installing, refer to CENTER CONSOLE BRACKET, FRONT CENTER CONSOLE, REMOVING AND INSTALLING .
3. Bolt
   • 5 Nm
   • Quantity: 4
   • For bracket -2-
4. Bolt
   • 4.3 Nm
   • Quantity: 6
   • Tightening sequence, refer to Installing - Tighten the bolts in the following sequence: -1, 2 and 3-.
5. Support
   • For the center console
   • Removing and installing, refer to CENTER CONSOLE SUPPORT, FRONT CENTER CONSOLE, REMOVING AND INSTALLING .
6. Selector Mechanism
   • Removing and installing, refer to Selector Mechanism, Removing and Installing .
7. Bolt
   • Tightening specification, refer to OVERVIEW - SELECTOR MECHANISM .
   • Quantity: 4
8. Center Console
   • Accessories, refer to Center Console with Attachments .
   • Removing and installing, refer to CENTER CONSOLE, FRONT CENTER CONSOLE, REMOVING AND INSTALLING .
9. Climatronic Control Module -J255-
   • Removing and installing, refer to Display and Control Head, Removing and Installing .
10. Multimedia System Control Head -E380-
    • Removing and Installing, refer to MULTIMEDIA SYSTEM CONTROL HEAD -E380-, REMOVING AND INSTALLING .
11. Selector Lever Handle
    • Removing and installing, refer to Selector Lever Handle, Removing and Installing .
12. Front Center Armrest
    • Overview, refer to OVERVIEW - FRONT CENTER ARMREST ASSEMBLY .
13. Bolt
    • Tightening specification, refer to -item  ) Center Console with Attachments - List Item:Bolt.
    • Quantity: 7
14. Rear Vent
    • Replace damaged or deformed retaining clips
    • Removing and installing, refer to CENTER CONSOLE, FRONT CENTER CONSOLE, REMOVING AND INSTALLING .
    • Press into the installation opening as far as the stop.
15. Bolt
    • Tightening specification, refer to -item  ) Storage Compartment with Attachments - Vehicles with a Short Wheel Base - List Item:Bolt.
    • Quantity: 4
16. Rear Storage Compartment
    • Vehicles with the short wheel base
    • Accessories, refer to Storage Compartment with Attachments - Vehicles with a Short Wheel Base .
    • Removing and installing, refer to CENTER CONSOLE FRONT STORAGE COMPARTMENT, REMOVING AND INSTALLING .
17. Side Trim Panel
    • Replace damaged or deformed retaining clips
    • For the center console
    • Vehicle versions
    • Removing and installing, refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
