Overview - Display Control Head
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

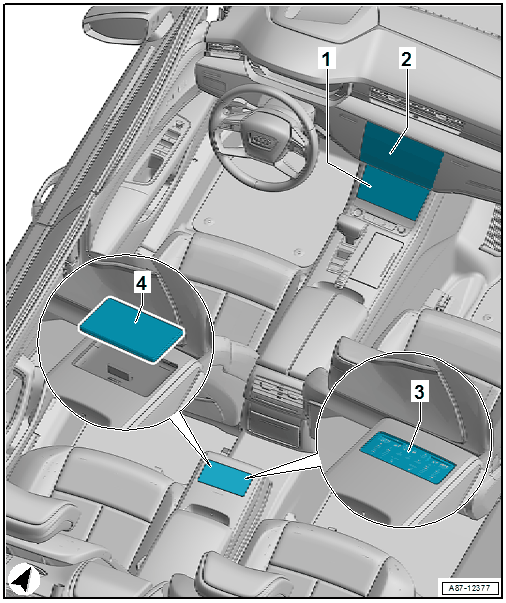

- Front Information Display Control Head 2 -J1060-
- Removing and installing. Refer to Front Information Display Control Head 2 -J1060-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
- Rear A/C Display Control Head -E265-
- Installed depending on vehicle equipment
- Removing and installing. Refer to Rear A/C Display Control Head -E265-, REMOVING AND INSTALLING .
- Auxiliary Display Control Head 1 -E857-
- Installed depending on vehicle equipment
- Removing and installing. Refer to Auxiliary Display Control Head 1 -E857-, REMOVING AND INSTALLING .

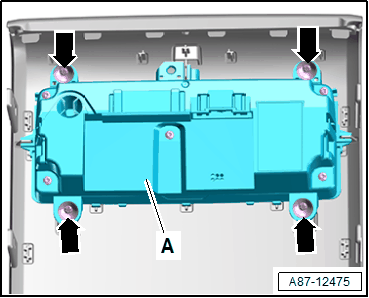

Rear A/C Display Control HeadE265 - Tightening Specification and Sequence
-- Tighten the screws -arrows- to 1.5 Nm.
