Ionizer Control Module -J897-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Infotainment system display. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .

-- If equipped, remove the Active Steering Control Module - J792-. Refer to ACTIVE STEERING CONTROL MODULE -J792-, REMOVING AND INSTALLING .

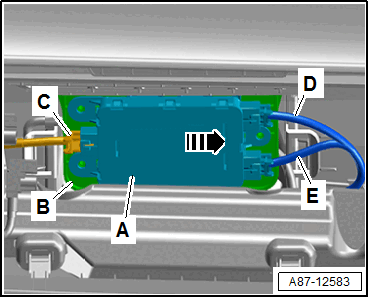

-- Disconnect the connectors -C, D, and E-.

GWWA87-12583Courtesy of AUDI OF AMERICA, LLC

-- Push the Ionizer Control Module -J897- -A- in the direction of -arrow- out of the mount -B-.
