Special Tools

Fig 1: Identifying Special Tools -- Oil Extraction And Replacement

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit: SMN372500
• Step Ladder: VAS5085
• Engine Bung Set: VAS6122
• Shop Crane - Drip Tray: VAS6208
• Hose Clip Pliers: VAS6362

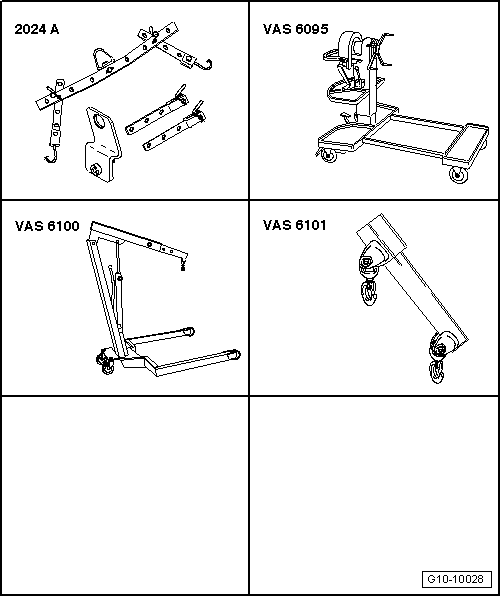

Fig 2: Identifying Special Tools - Engine, Securing To Engine And Transmission Holder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Electric Drive Unit Guide Pins: T10441
• Scissor Lift Table - Q7 Set - Articulated Joint Support: VAS6131/13-7
• Scissor Lift Table - Touareg Set - Mount: VAS6131/6-7
• Bits for VAG1331/13 - Bit: T10099/1
• Scissor Lift Table: VAS6131B  .
• Engine Sling: 2024A
• Engine And Transmission Holder: VAS6095  with Engine/Transmission Holder - V6 FSI Bracket: VAS6095/1-5
• Shop Crane: VAS6100
• Lift Arm Extension: VAS6101

Fig 3: Identifying Special Tools -- Engine, Support

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Support Bridge: 10-222A  with Engine Support Bridge - Engine Support 29: 10-222A/29
• Engine Support - Bracket w/Spindle and Hook: 10-222A/10
• Engine Support Bridge - Engine Support 3: 10-222A/3
• Engine Support Bridge - Engine Support 28: 10-222A/28
• Quantity: 2 Engine Support - Basic Set - Square Pipes: T40091/1
• Engine Support - Basic Set - Rail with Holes: T40091/2
• Quantity: 2 Engine Support - Basic Set - Moveable Joints: T40091/3
• Engine Support - Supplement Kit - Mount: T40093/5
• Quantity: 2 Engine Support - Supplement Kit - Moveable Joints: T40093/4

Special tools and workshop equipment required

• Puller - Ball Joint: T10187
  Fig 4: Ball Joint Puller T10187

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Not illustrated:
• Scissor Lift Table - Touareg Set: VAS6131/6
• Scissor Lift Table - Touareg Set - Support: VAS6131/8
• Torque Wrench 1331 5-50Nm: VAG1331
