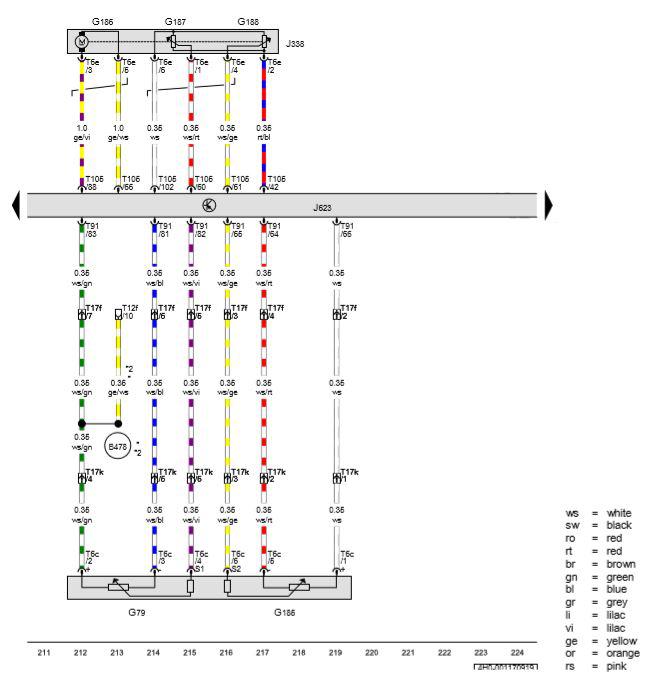

Accelerator Pedal Position Sensor, Throttle Valve Control Module, Engine Control Module: Notes

GWW4H0-001170412

Courtesy of AUDI OF AMERICA, LLC
