Home >> Audi >> 2016 >> A3 Sportback e-tron Premium Plus >> Repair and Diagnosis (Single Page) >> Engine Performance >> Ignition System >> Wiring Diagram [CXUA] >> Wiring Diagram >> Oil Level Thermal Sensor, Engine/Motor Control Module >> Notes

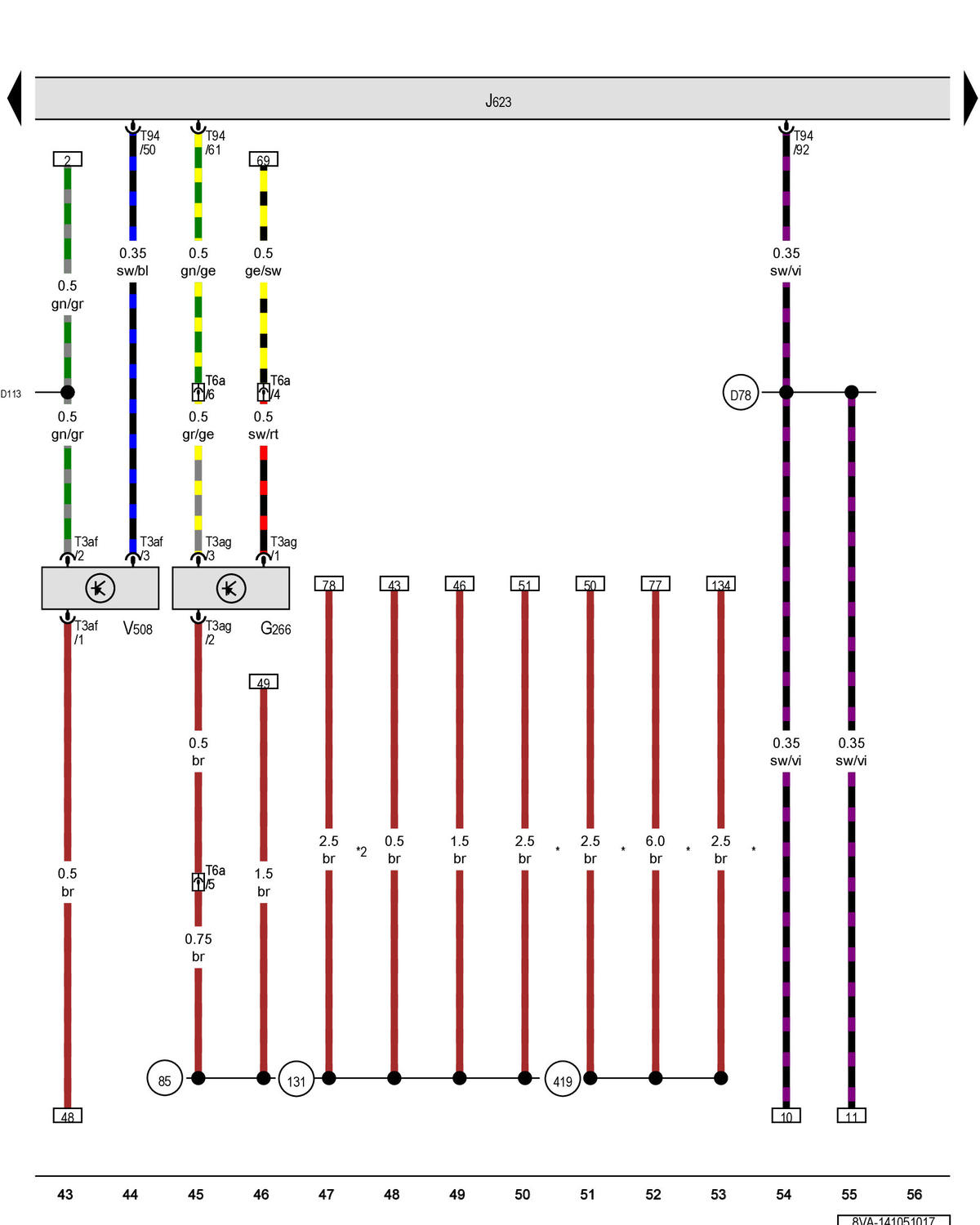

Oil Level Thermal Sensor, Engine/Motor Control Module: Notes

GWW8VA-141051017

Courtesy of AUDI OF AMERICA, LLC
