Special Tools

Fig 1: Identifying Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pry Lever 80-200
• Step Ladder VAS5085
• Engine Bung Set VAS6122
• Scissor Lift Table VAS6131B with Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A8 Set VAS6131/11 and Scissor Lift Table - Q7 Set VAS6131/13
• Shop Crane - Drip Tray VAS6208
• Hose Clip Pliers VAS6362

Special tools and workshop equipment required

• Socket T30T10405

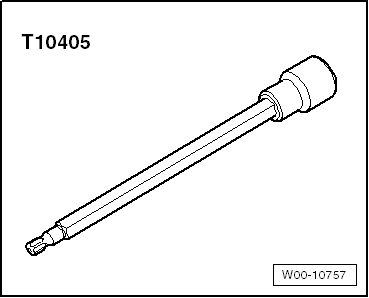

  Fig 2: Socket T10405

  Courtesy of AUDI OF AMERICA, LLC
• Clutch Module Assembly Aid T40169 for vehicles with a DSG transmission 0B5
  Fig 3: Assembly Aid T40169

  Courtesy of AUDI OF AMERICA, LLC
• Clutch Module Transportation Lock T40170
  Fig 4: Identifying Transportation Lock T40170

  Courtesy of AUDI OF AMERICA, LLC
• Wrench - 21mm T40263
  Fig 5: Identifying Wrench 21 mm T40263

  Courtesy of AUDI OF AMERICA, LLC
• Crankshaft Turning Tool T40272

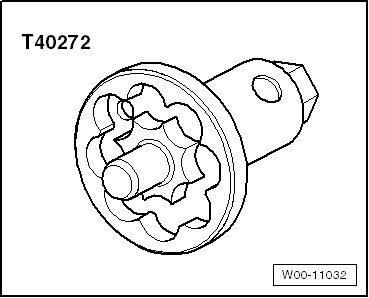

  Fig 6: Identifying Crankshaft Turning Tool T40272

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 Insert - Ring Wrench - 16mm VAG1332/14
  Fig 7: Identifying Ring Spanner Insert AF 16 V.A.G 1332/14

  Courtesy of AUDI OF AMERICA, LLC
• Engine And Transmission HolderVAS6095 with Engine/Transmission Holder - V8 Engine Bracket VAS6095/1-13
  Fig 8: Identifying Engine And Transmission Holder VAS 6095

  Courtesy of AUDI OF AMERICA, LLC
• Shop CraneVAS6100
  Fig 9: Identifying Shop Crane

  Courtesy of AUDI OF AMERICA, LLC
• Lift Arm Extension VAS6101
  Fig 10: Identifying Lift Arm Ext./Workshop Hoist VAS 6101

  Courtesy of AUDI OF AMERICA, LLC
• Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A8 Set VAS6131/11 and Scissor Lift Table - Q7 Set Articulated Joint Support VAS6131/13-7
• Hose Clip Pliers VAS6340
  Fig 11: Identifying Hose Clamp Pliers

  Courtesy of AUDI OF AMERICA, LLC
• Used Oil Collection and Extraction Unit SMN372500
  Fig 12: Identifying Used Oil Collection And Extraction Unit

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Bridge 10-222A
  Fig 13: Identifying Engine Support Bridge

  Courtesy of AUDI OF AMERICA, LLC
• Lifting Tackle 3033

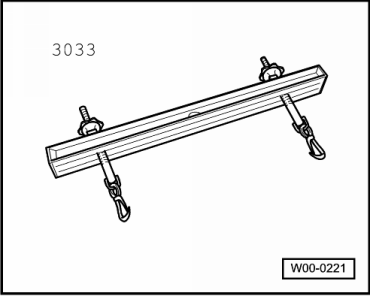

  Fig 14: Identifying Lifting Tackle 3033

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clamps - Up To 25 mm 3094
  Fig 15: Identifying Hose Clamps

  Courtesy of AUDI OF AMERICA, LLC
