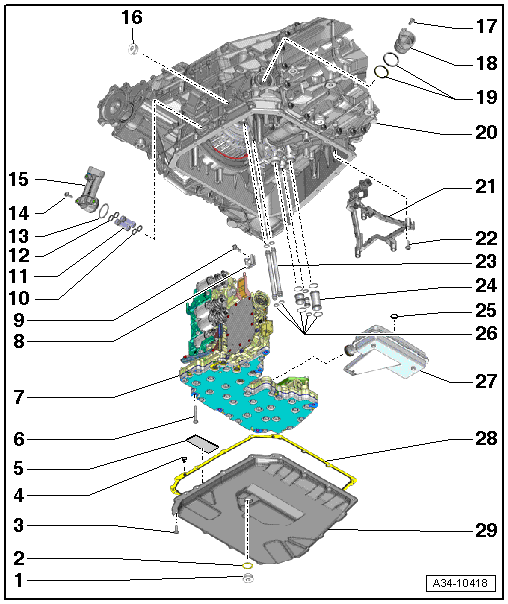

Overview - MECHATRONIC

• Tightening specification:

  45 Nm

• Replacing

• Tightening specification:

  10 Nm

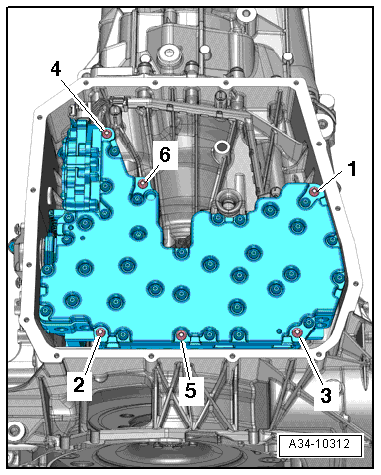

• Tightening Sequence:
  Fig 2: Identifying Mechatronic, Tightening Sequence

  Courtesy of AUDI OF AMERICA, LLC

• For attaching the gasket to the ATF oil pan
• Not required for installation

• Quantity: 2
• insert into the depression in the ATF oil pan
• Make sure the entire surface contacts oil pan

• Tightening specification:

  10 Nm

• Tightening Sequence:
  Fig 3: Identifying Mechatronic, Tightening Sequence

  Courtesy of AUDI OF AMERICA, LLC

• Refer to MECHATRONIC, REMOVING AND INSTALLING
  • After replacing the S tronic Transmission Mechatronic -J743-, the corresponding "Guided Functions" must be performed with the Vehicle Diagnostic Tester, refer to TRANSMISSION GUIDED FUNCTIONS .

• for the ATF oil pipes

• Are replaced together with the ATF pipe (-item  11-)
• Coat with ATF before installing

• Replacing

• Are replaced together with the ATF pipe (-item  9-)
• Coat with ATF before installing

• Replacing
• Coat with ATF before installing

• Tightening specification -item  12-.

• Removing and installing, refer to ATF FILTER HOUSING, REMOVING AND INSTALLING .
• Different versions depending on the date of manufacture, pat attention to the correct allocation.

• Tightening specification:

  45 Nm

-- Remove the screw -item 17- and turn the connection housing counter-clockwise.

• Replacing

• Different versions depending on the date of manufacture, one or three pieces

• Replacing

• Replacing

• Removing and Installing, refer to ATF SUCTION FILTER, REMOVING AND INSTALLING  .

• Replacing
• Installing, refer to Installing .

• Refer to OIL PAN, REMOVING AND INSTALLING
