Telephone Transceiver -R36-

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

The telephone transceiver is located under the right front seat.

-- Turn off all electrical consumers.

-- Remove the key.

-- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault Finding".

Use the Vehicle Diagnostic Tester.

Removing

-- Remove the right front seat. Refer to Removal and Installation .

-- Fold back the floor covering. Refer to Removal and Installation .

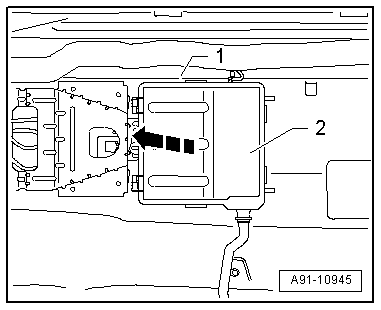

-- Disengage cover of E-box -2- and open the E-box -1-.

Fig 1: Disengaging Cover Of E-Box

Courtesy of AUDI OF AMERICA, LLC

The telephone transceiver is only wedged into the electronics box.

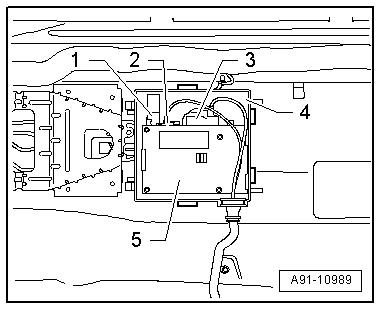

-- Pry the telephone transceiver -5- out of the E-box -4-.

Fig 2: Prying Telephone Transceiver

Courtesy of AUDI OF AMERICA, LLC

Only with MOST-BUS

-- Disconnect the connector -2-.

-- Connect the VAS 6223/9 -1- to the connector for the MOST-Bus -2-.

Fig 3: Identifying Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

All

-- Disconnect the connector -3-.

Fig 4: Disconnecting Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect Bluetooth antenna -R152- -1-.

Installing

-- Install in reverse order of removal.

-- Adapt Bluetooth connection between the telephone transceiver and telephone handset -R36- /cell phone -R54-.
