Overview - Memory Seat/Steering Column Adjustment Control Module

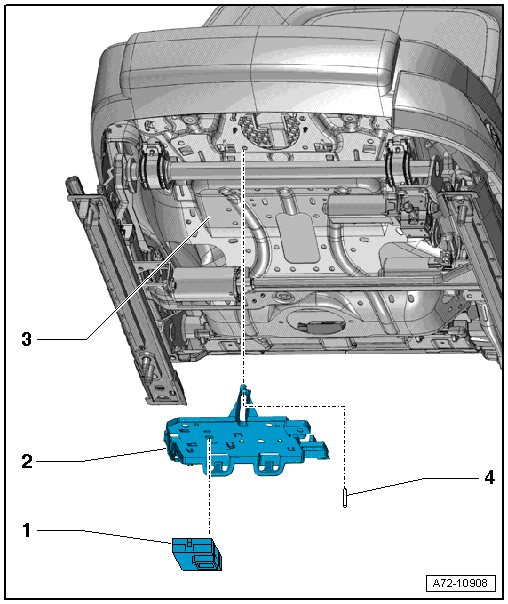

Fig 1: Overview Of Front Control Module and Mounting Bracket

Courtesy of AUDI OF AMERICA, LLC

1. Control Module
   • Driver side: Memory Seat/Steering Column Adjustment Control Module -J136-
   • Front passenger side: Front Passenger Memory Seat Control Module -J521-
   • Comfort driver seat: Left Front Seat Ventilation Control Module -J800- integrated
   • Comfort front passenger seat: Right Front Seat Ventilation Control Module -J799- integrated
   • Clipped with the bracket
   • Removing and installing. Refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE, REMOVING AND INSTALLING .
2. Bracket
   • Removing and installing. Refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
3. Front Seat
4. Pin
   • For securing the bracket to the seat pan

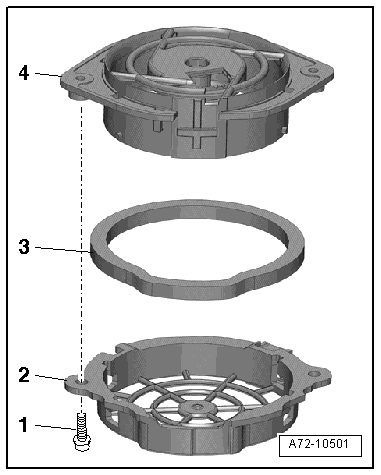

Fig 2: Identifying Seat Cushion Fan Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Bolt - 1.5 Nm
2. Cover grille
3. Seal
4. Seat cushion fan
