Accelerator Pedal Module, Version 1
>>
Removing
Accelerator Pedal Module, Version 1: Removing
Remove driver's side instrument panel cover. Refer to
INSTRUMENT PANEL COVER
.
Separate the electrical connector -2-.
Remove the screws -1- and -3-.

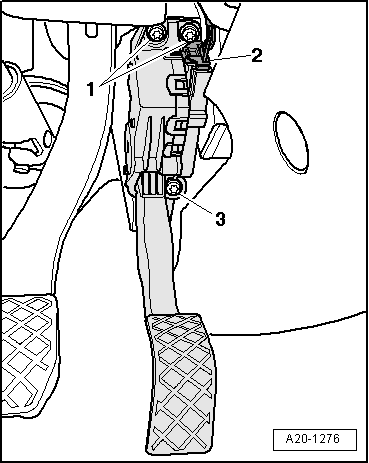

Fig 1: Accelerator Pedal Module Electrical Connector & Screws
Courtesy of AUDI OF AMERICA, LLC
Remove accelerator pedal module.
