Mode 6

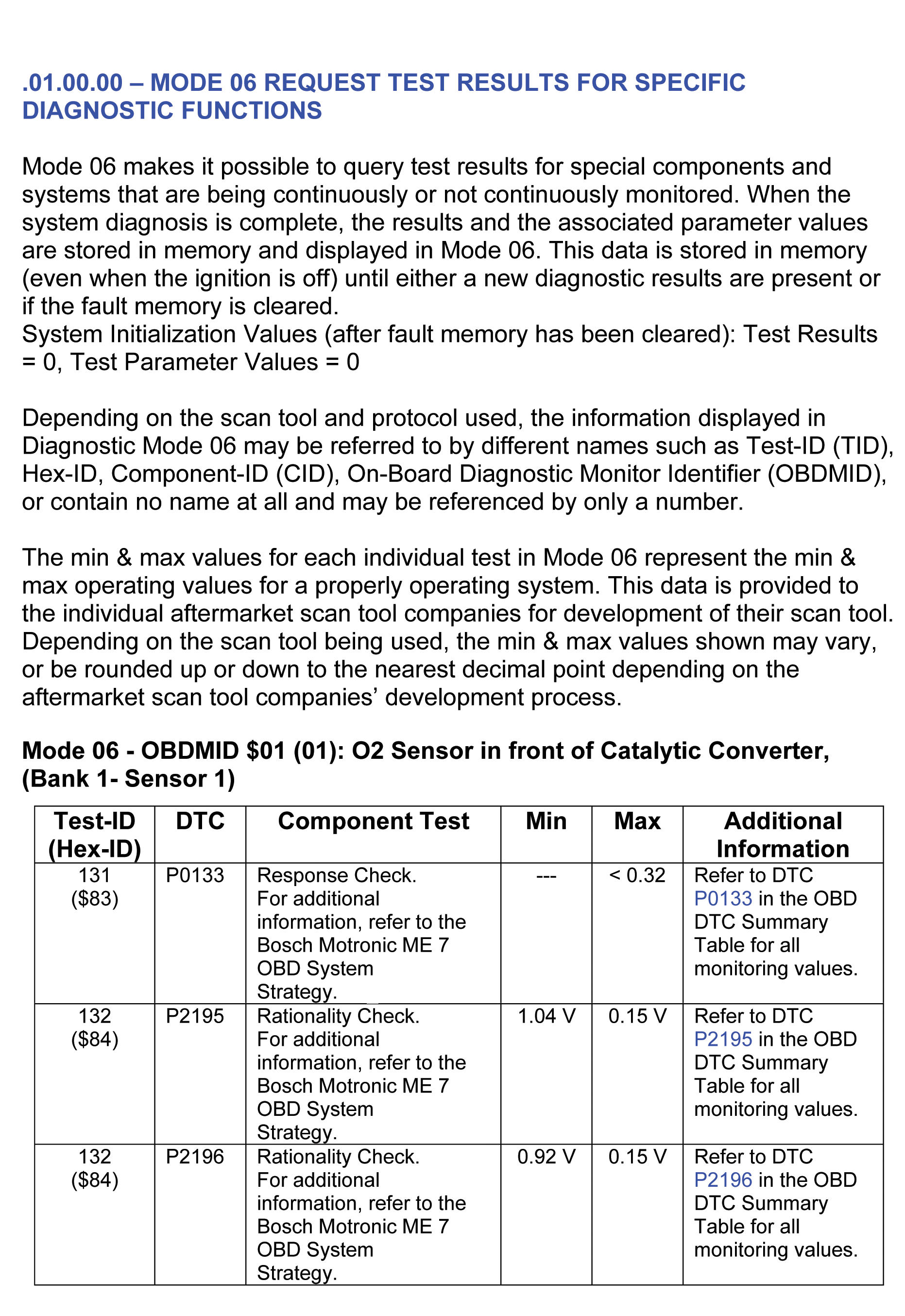

Fig 1: Mode 6 Data (2007 6.0L BSB) (1 Of 18)

G00448700

Courtesy of AUDI OF AMERICA, INC.

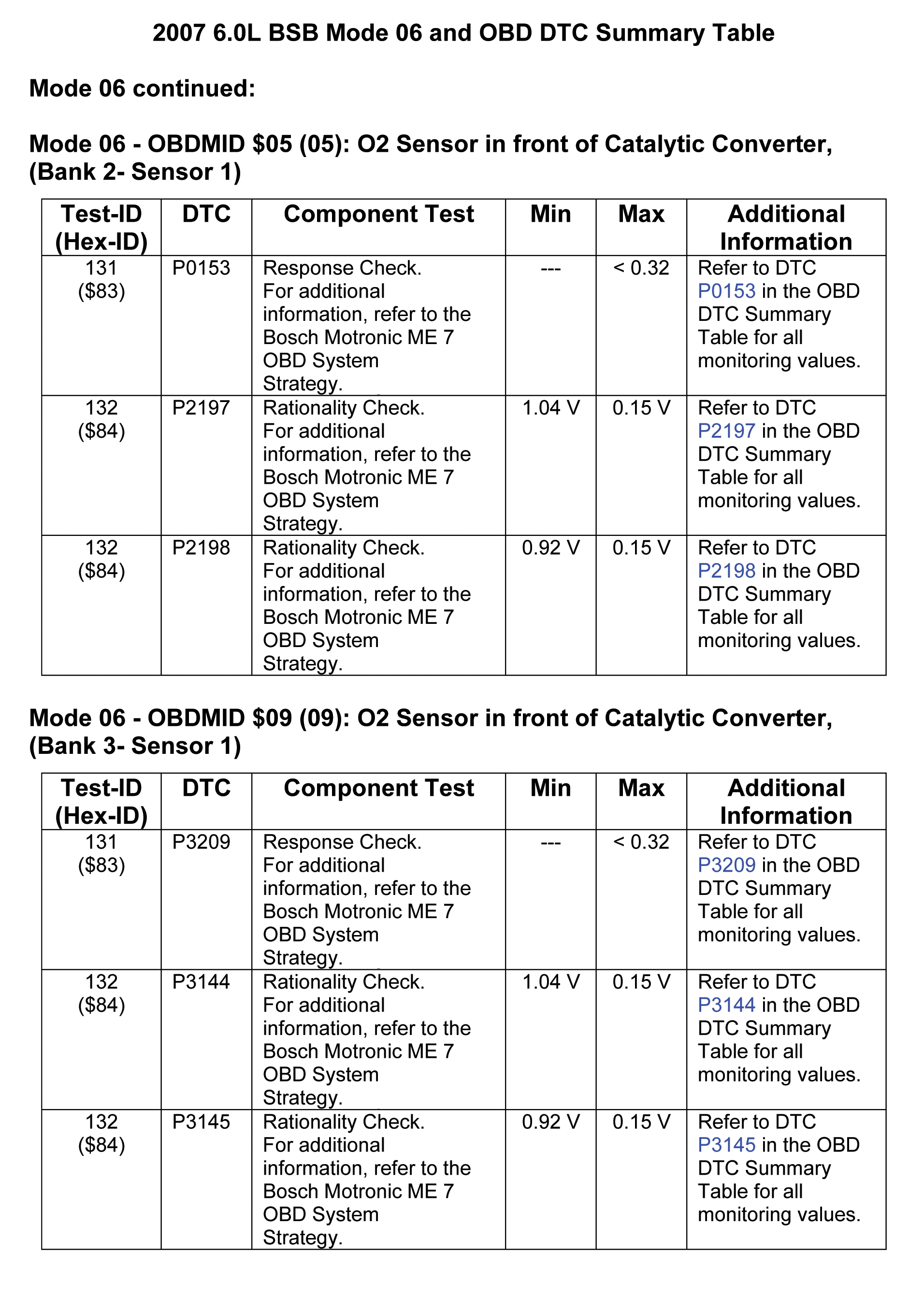

Fig 2: Mode 6 Data (2007 6.0L BSB) (2 Of 18)

G00448701

Courtesy of AUDI OF AMERICA, INC.

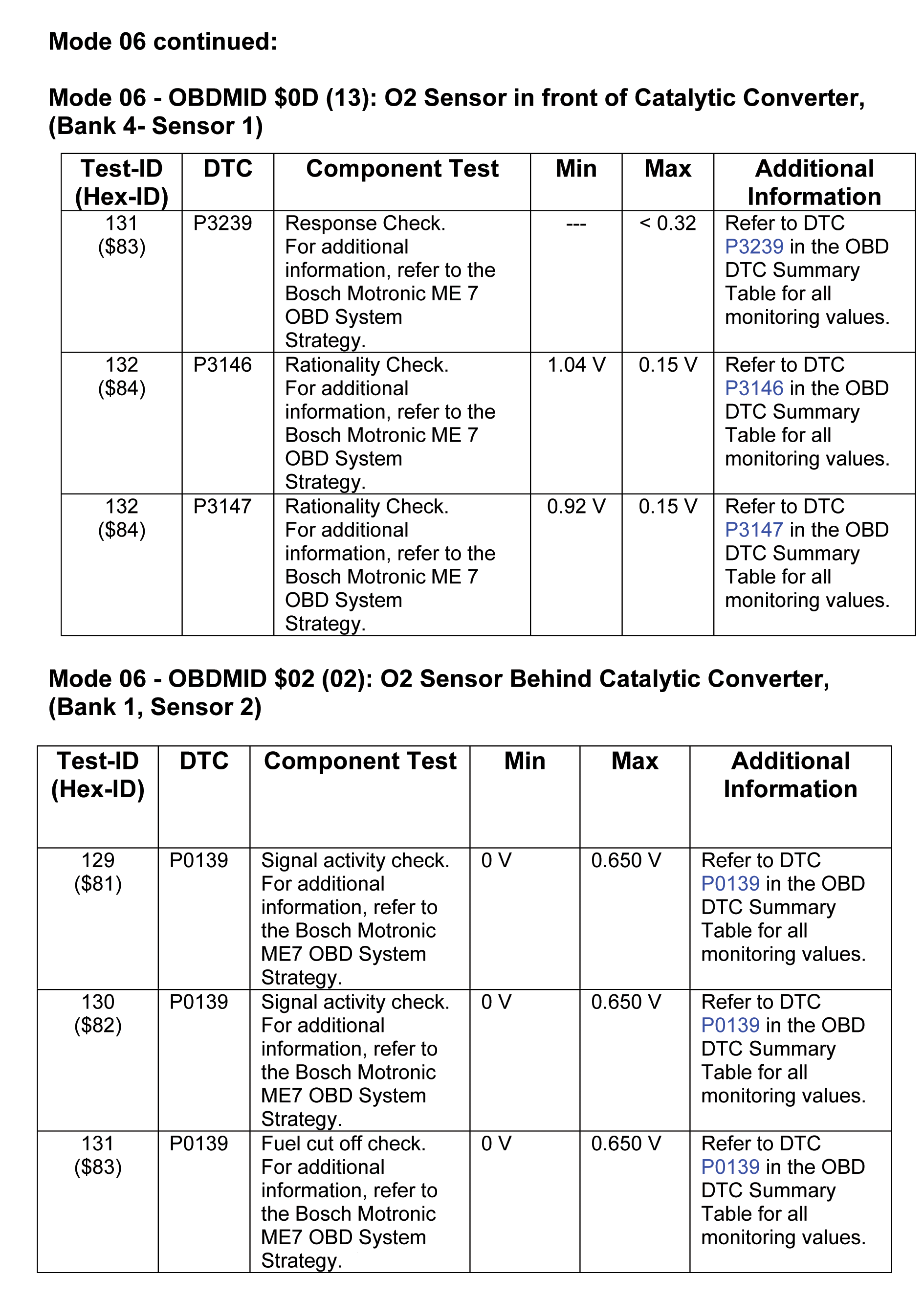

Fig 3: Mode 6 Data (2007 6.0L BSB) (3 Of 18)

G00448702

Courtesy of AUDI OF AMERICA, INC.

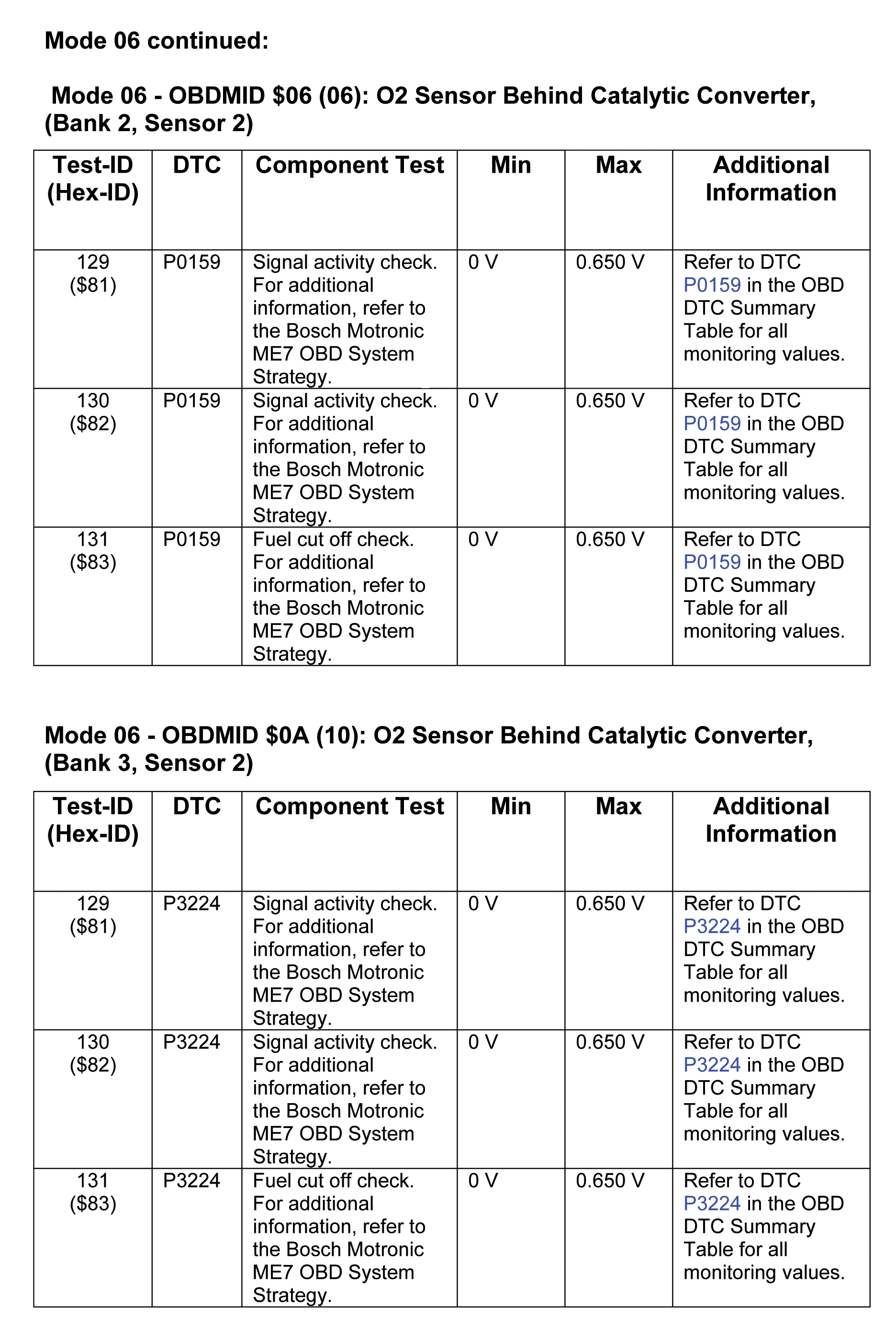

Fig 4: Mode 6 Data (2007 6.0L BSB) (4 Of 18)

G00448703

Courtesy of AUDI OF AMERICA, INC.

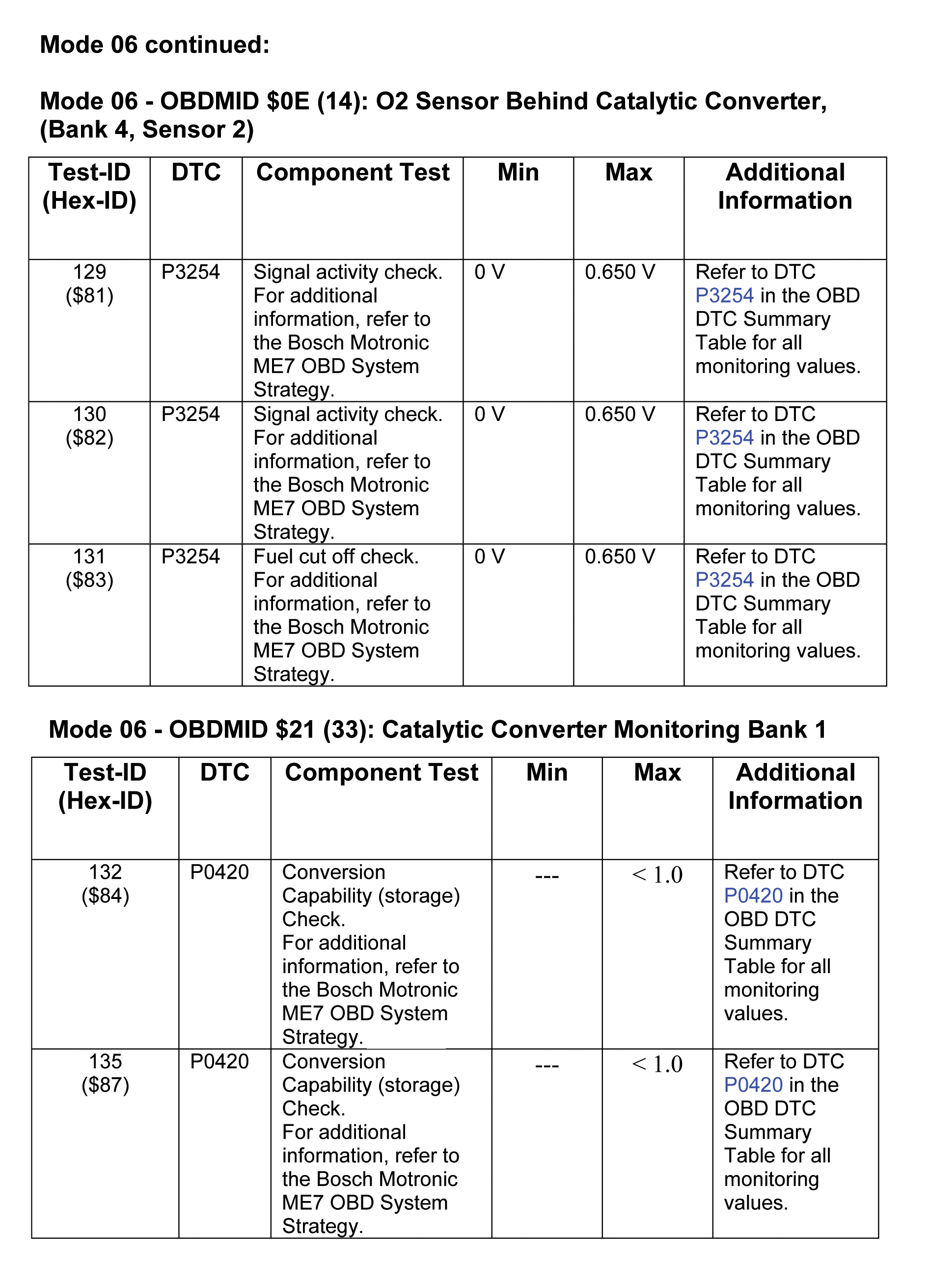

Fig 5: Mode 6 Data (2007 6.0L BSB) (5 Of 18)

G00448704

Courtesy of AUDI OF AMERICA, INC.

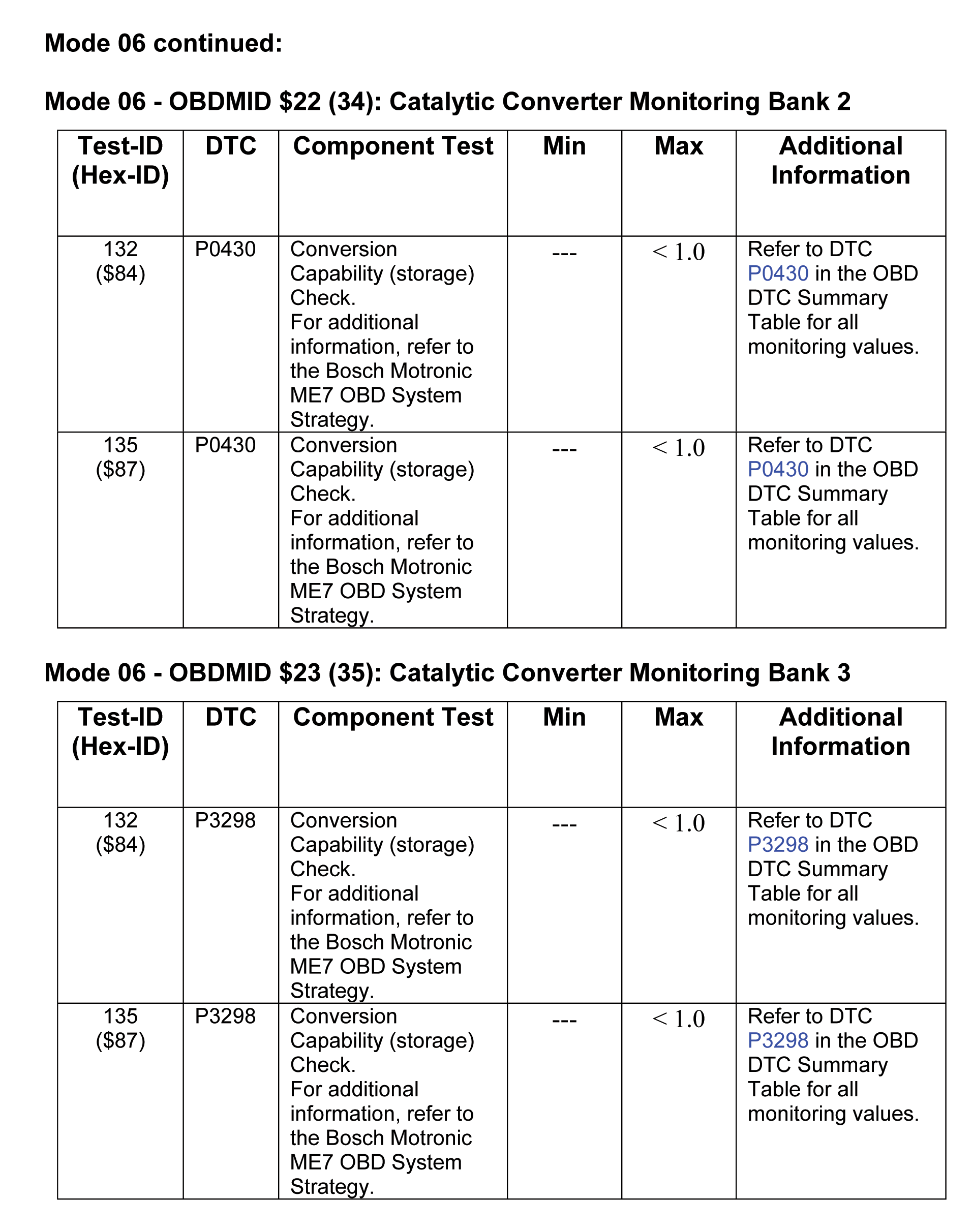

Fig 6: Mode 6 Data (2007 6.0L BSB) (6 Of 18)

G00448705

Courtesy of AUDI OF AMERICA, INC.

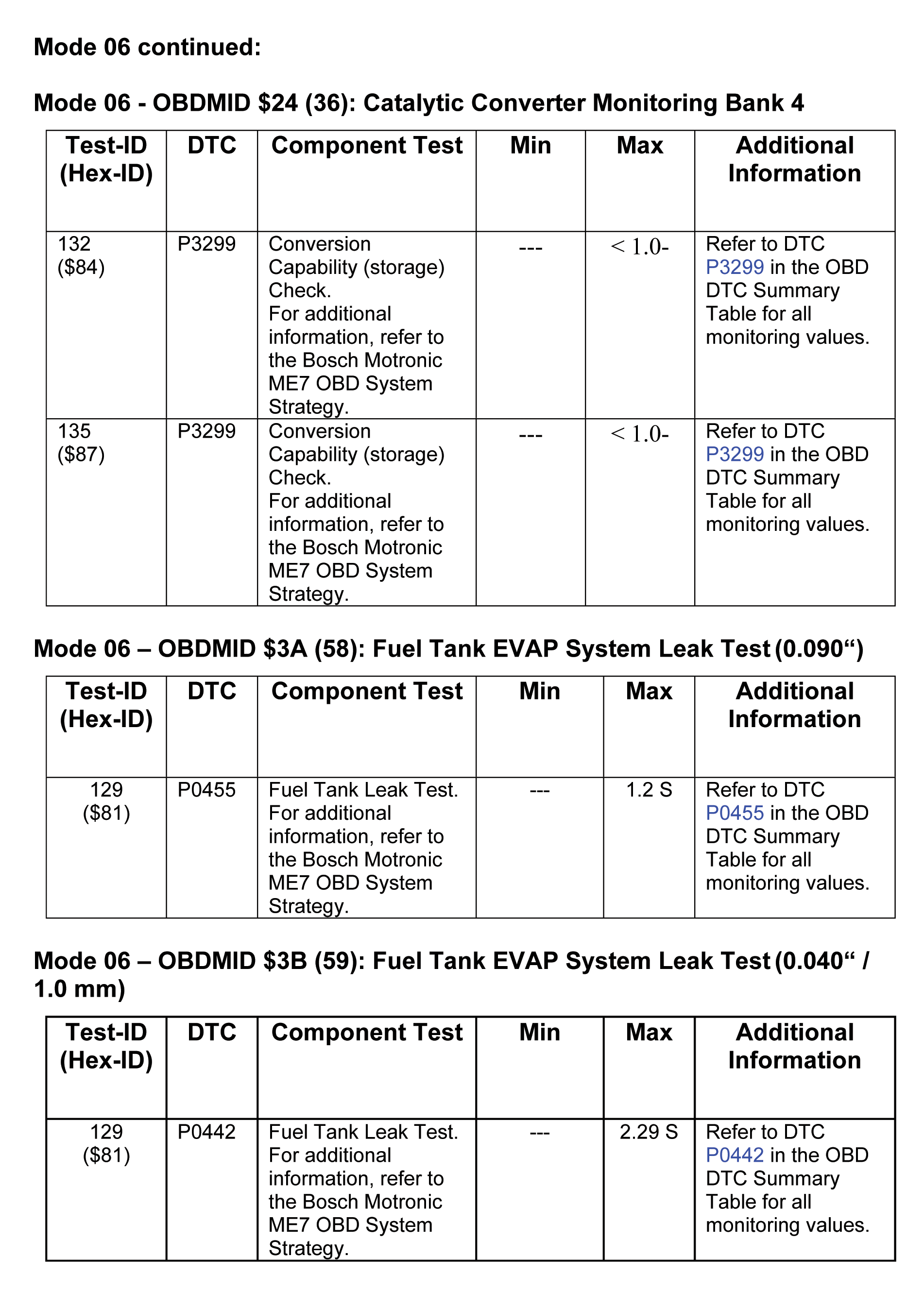

Fig 7: Mode 6 Data (2007 6.0L BSB) (7 Of 18)

G00448706

Courtesy of AUDI OF AMERICA, INC.

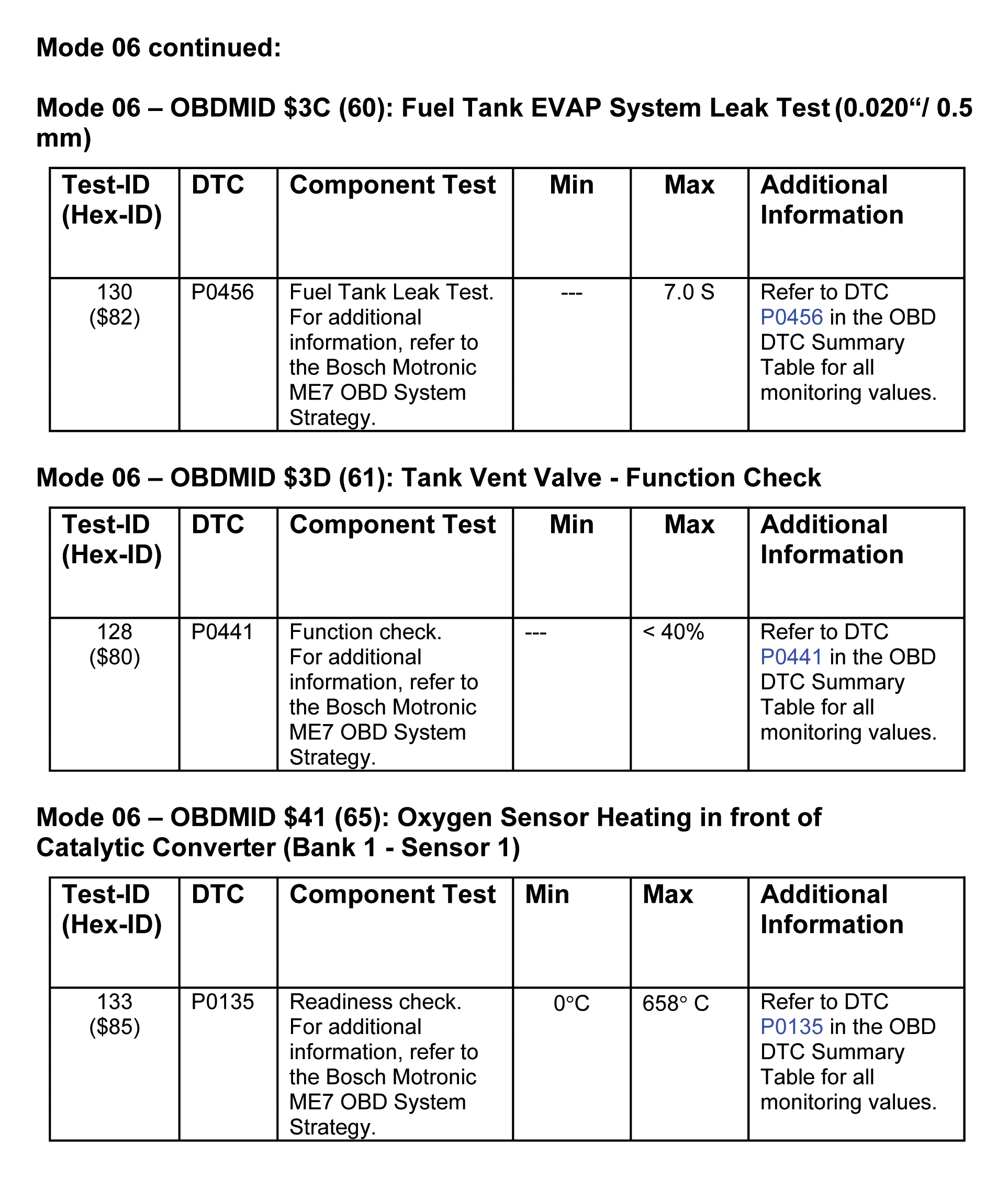

Fig 8: Mode 6 Data (2007 6.0L BSB) (8 Of 18)

G00448707

Courtesy of AUDI OF AMERICA, INC.

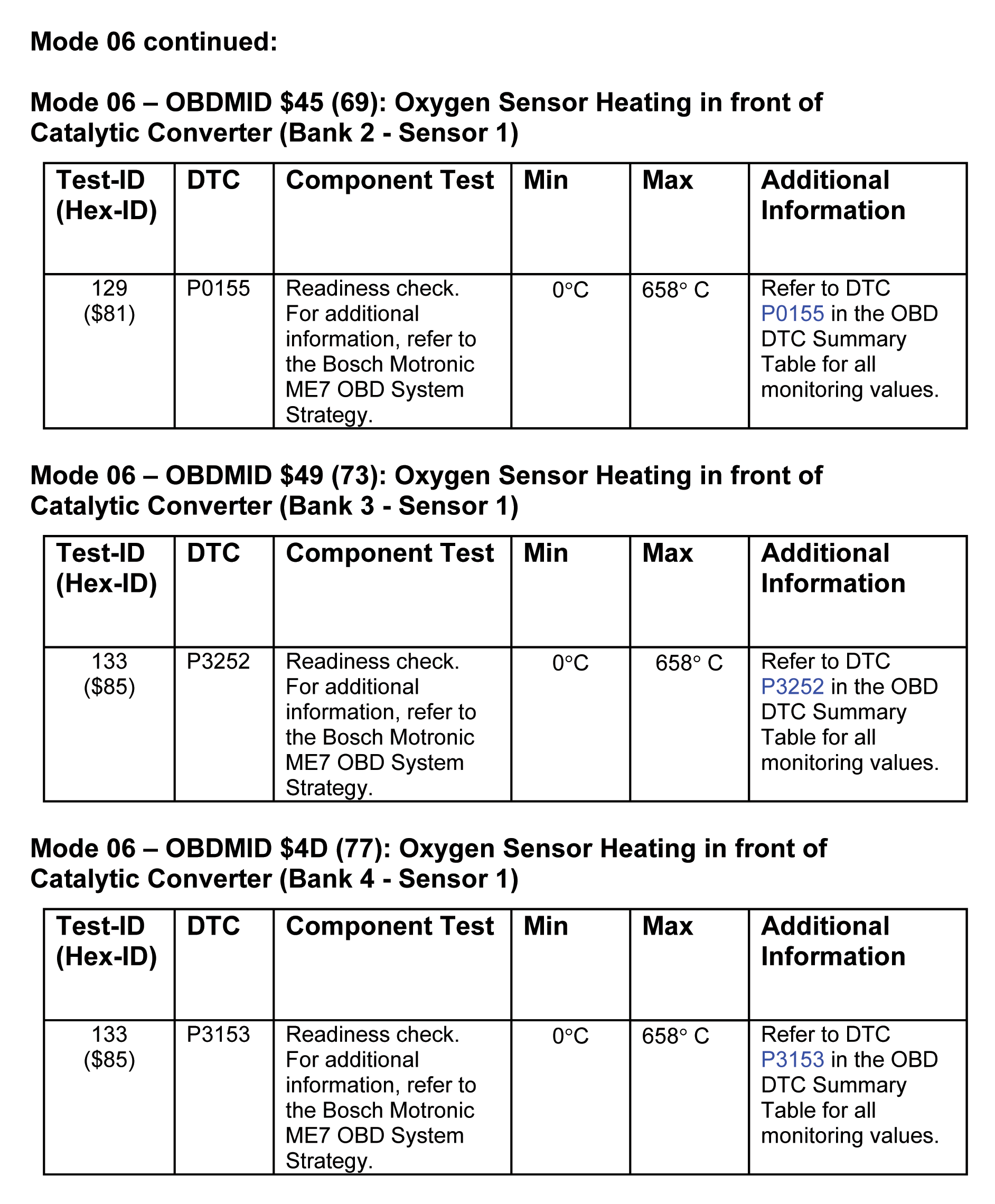

Fig 9: Mode 6 Data (2007 6.0L BSB) (9 Of 18)

G00448708

Courtesy of AUDI OF AMERICA, INC.

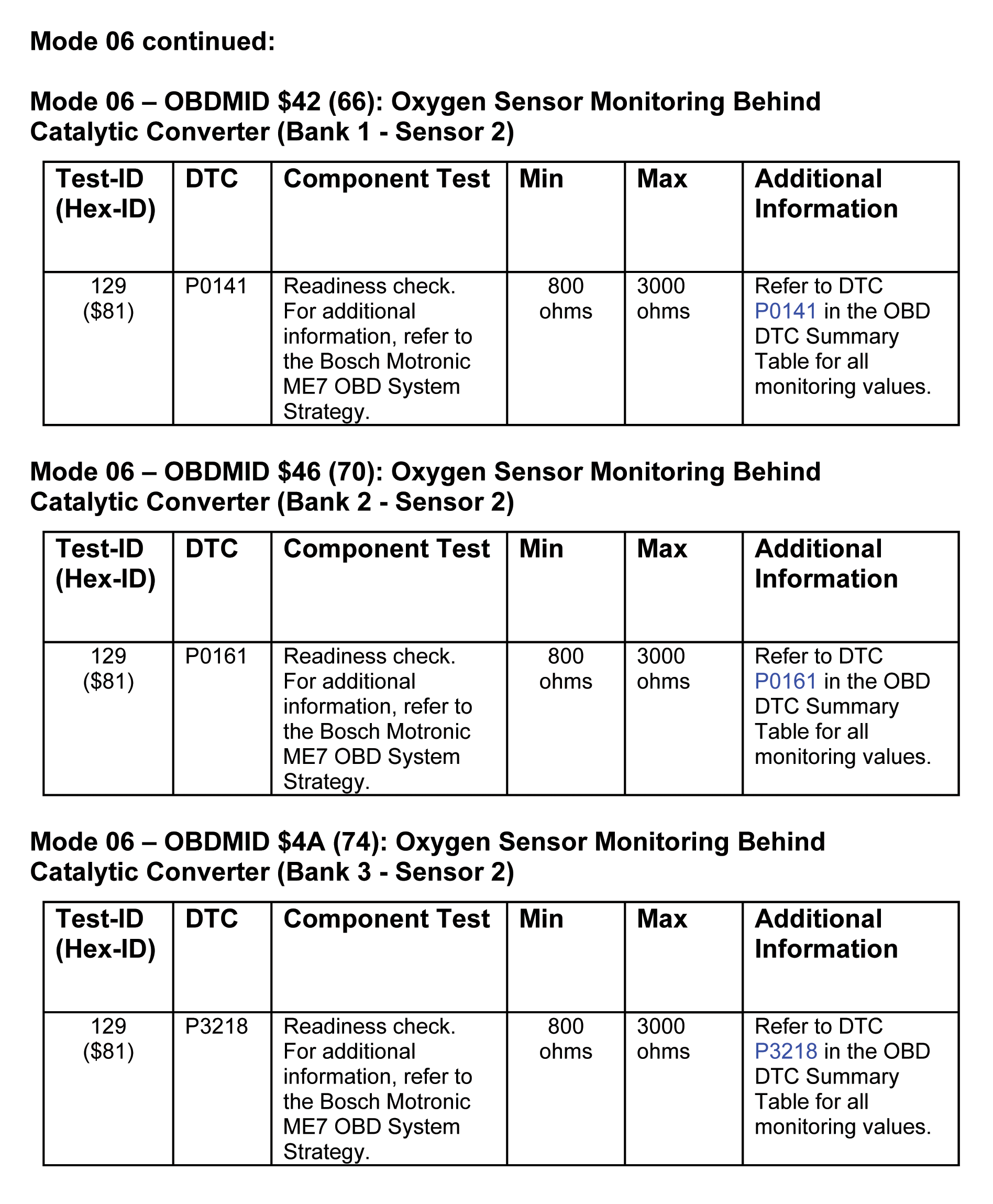

Fig 10: Mode 6 Data (2007 6.0L BSB) (10 Of 18)

G00448709

Courtesy of AUDI OF AMERICA, INC.

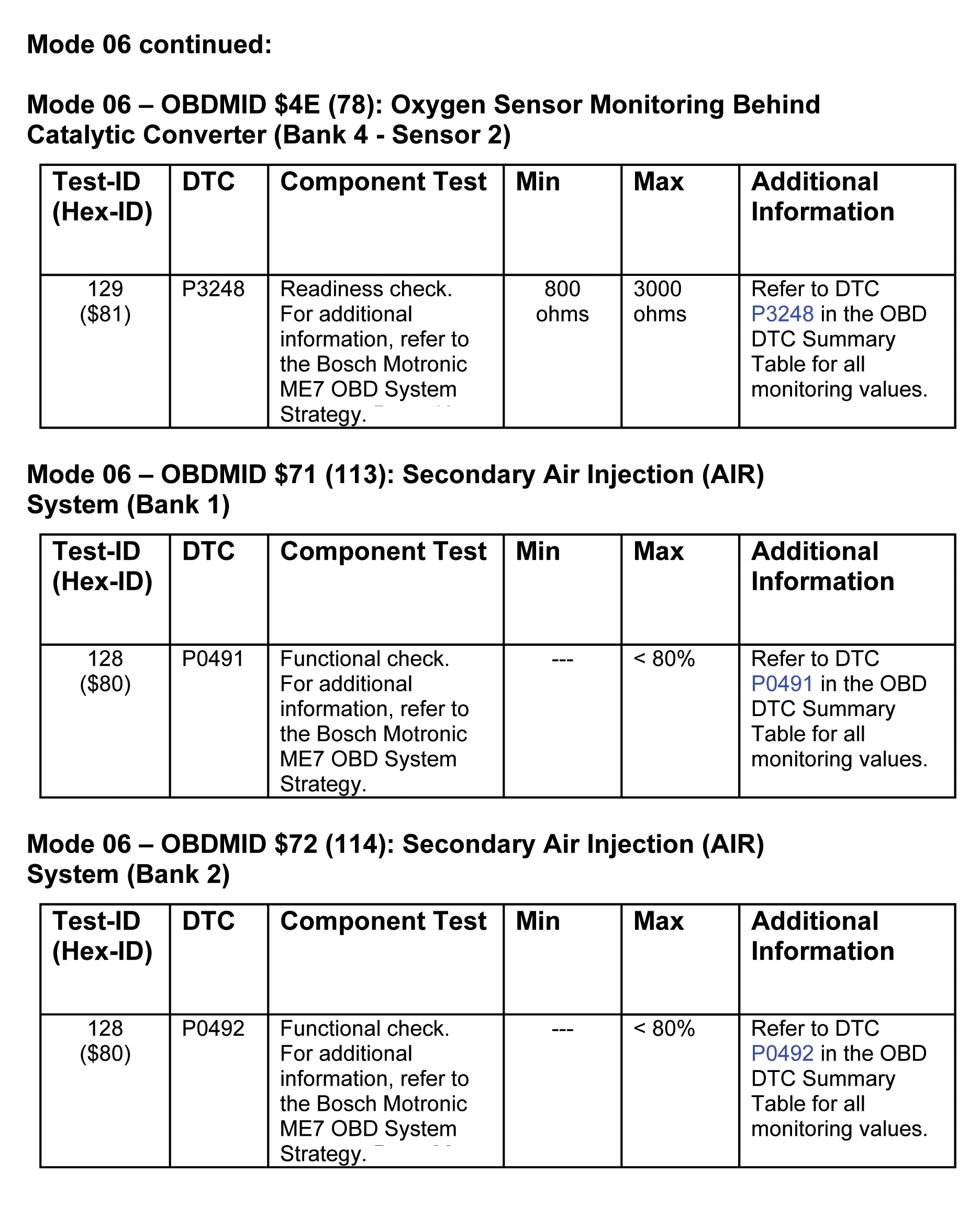

Fig 11: Mode 6 Data (2007 6.0L BSB) (11 Of 18)

G00448710

Courtesy of AUDI OF AMERICA, INC.

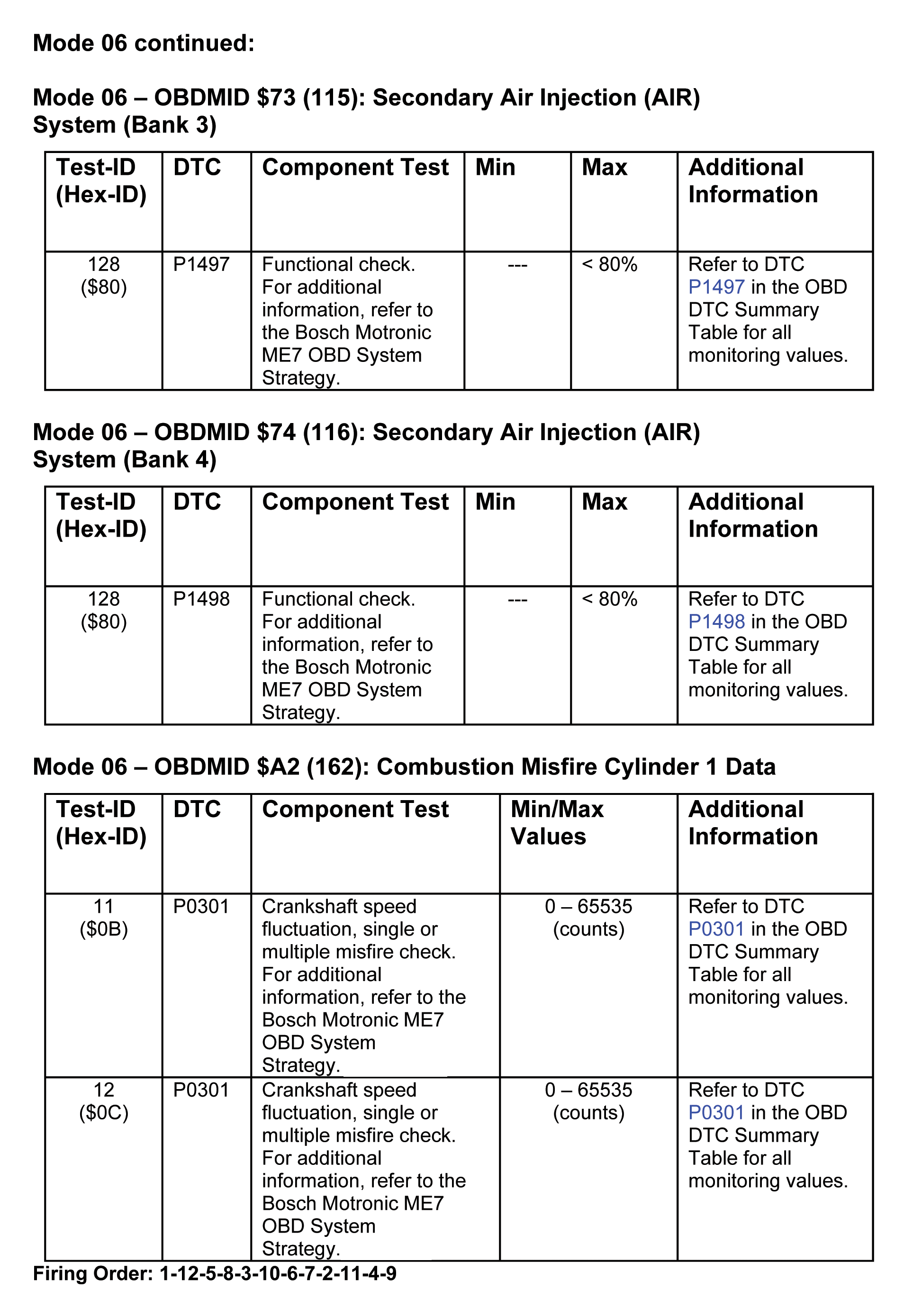

Fig 12: Mode 6 Data (2007 6.0L BSB) (12 Of 18)

G00448711

Courtesy of AUDI OF AMERICA, INC.

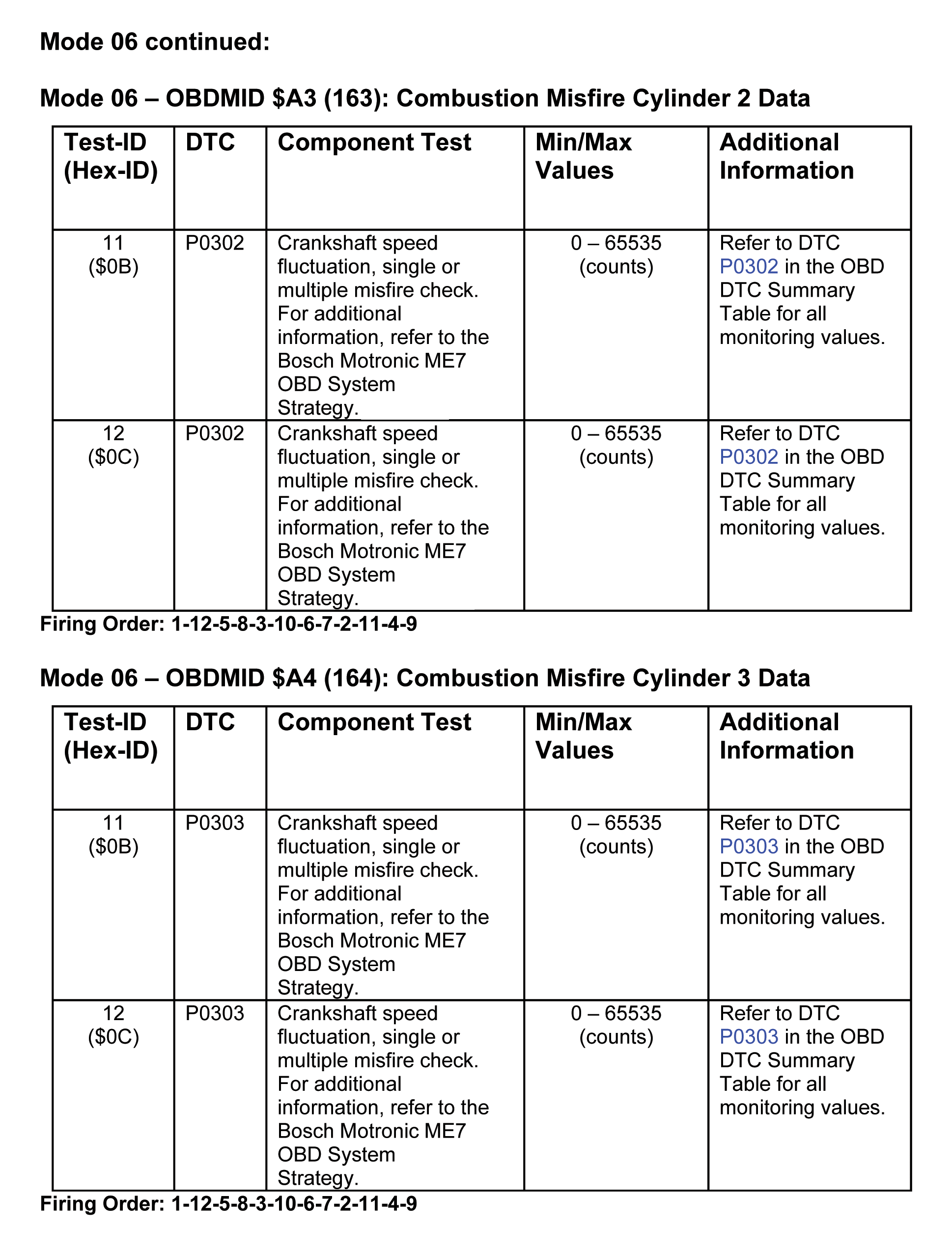

Fig 13: Mode 6 Data (2007 6.0L BSB) (13 Of 18)

G00448712

Courtesy of AUDI OF AMERICA, INC.

Fig 14: Mode 6 Data (2007 6.0L BSB) (14 Of 18)

G00448713

Courtesy of AUDI OF AMERICA, INC.

Fig 15: Mode 6 Data (2007 6.0L BSB) (15 Of 18)

G00448714

Courtesy of AUDI OF AMERICA, INC.

Fig 16: Mode 6 Data (2007 6.0L BSB) (16 Of 18)

G00448715

Courtesy of AUDI OF AMERICA, INC.

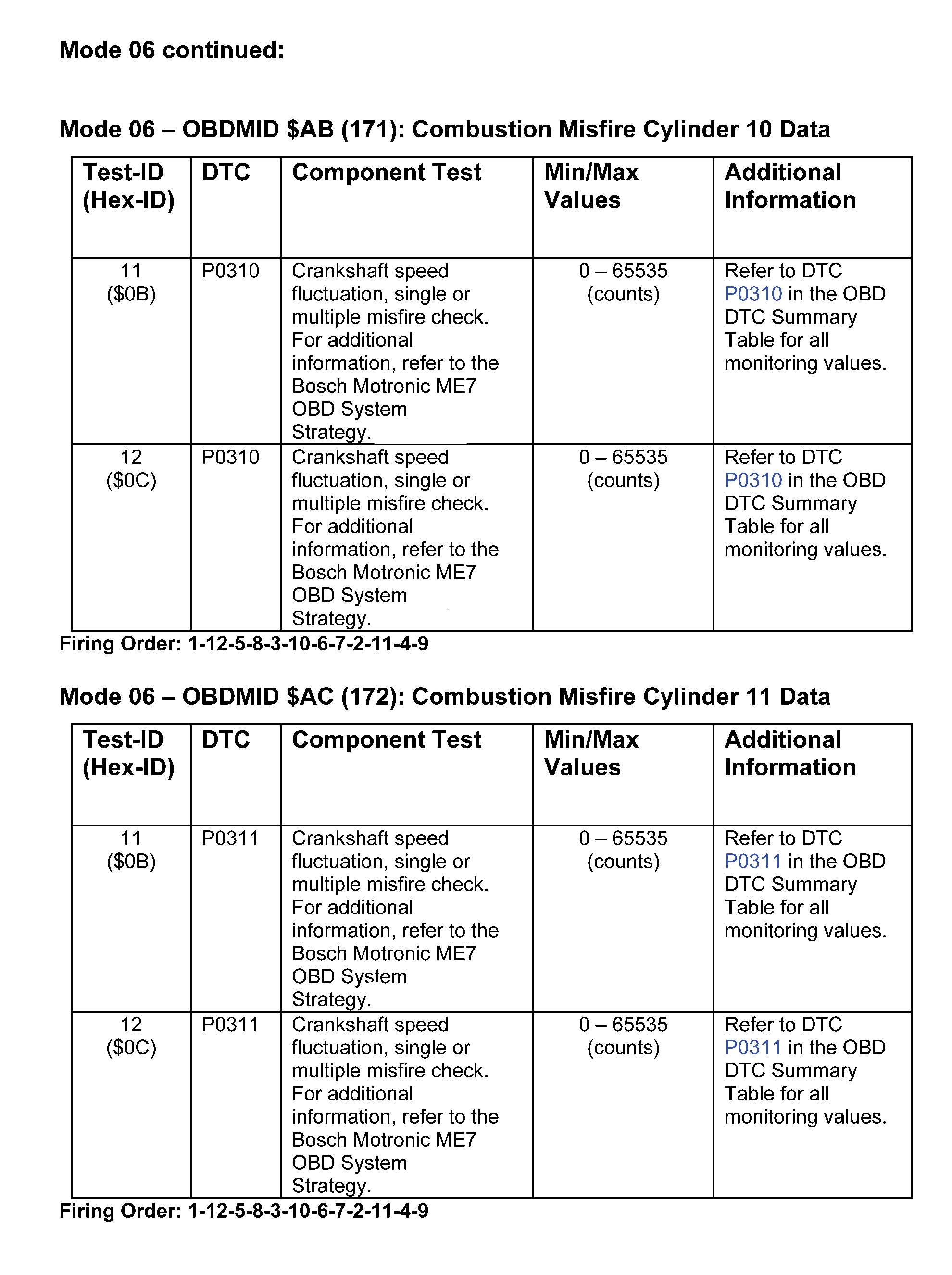

Fig 17: Mode 6 Data (2007 6.0L BSB) (17 Of 18)

G00448716

Courtesy of AUDI OF AMERICA, INC.

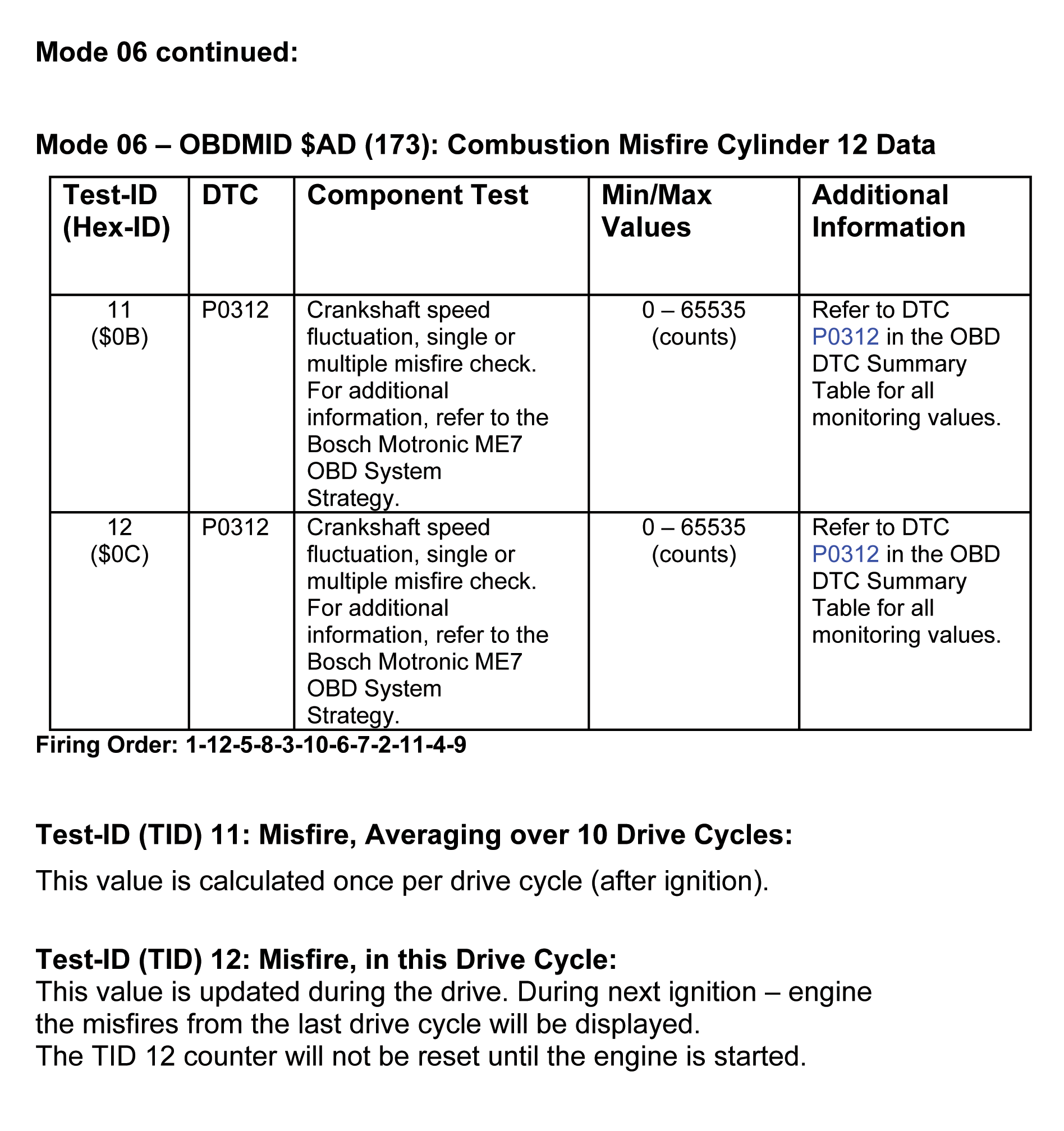

Fig 18: Mode 6 Data (2007 6.0L BSB) (18 Of 18)

G00448717

Courtesy of AUDI OF AMERICA, INC.

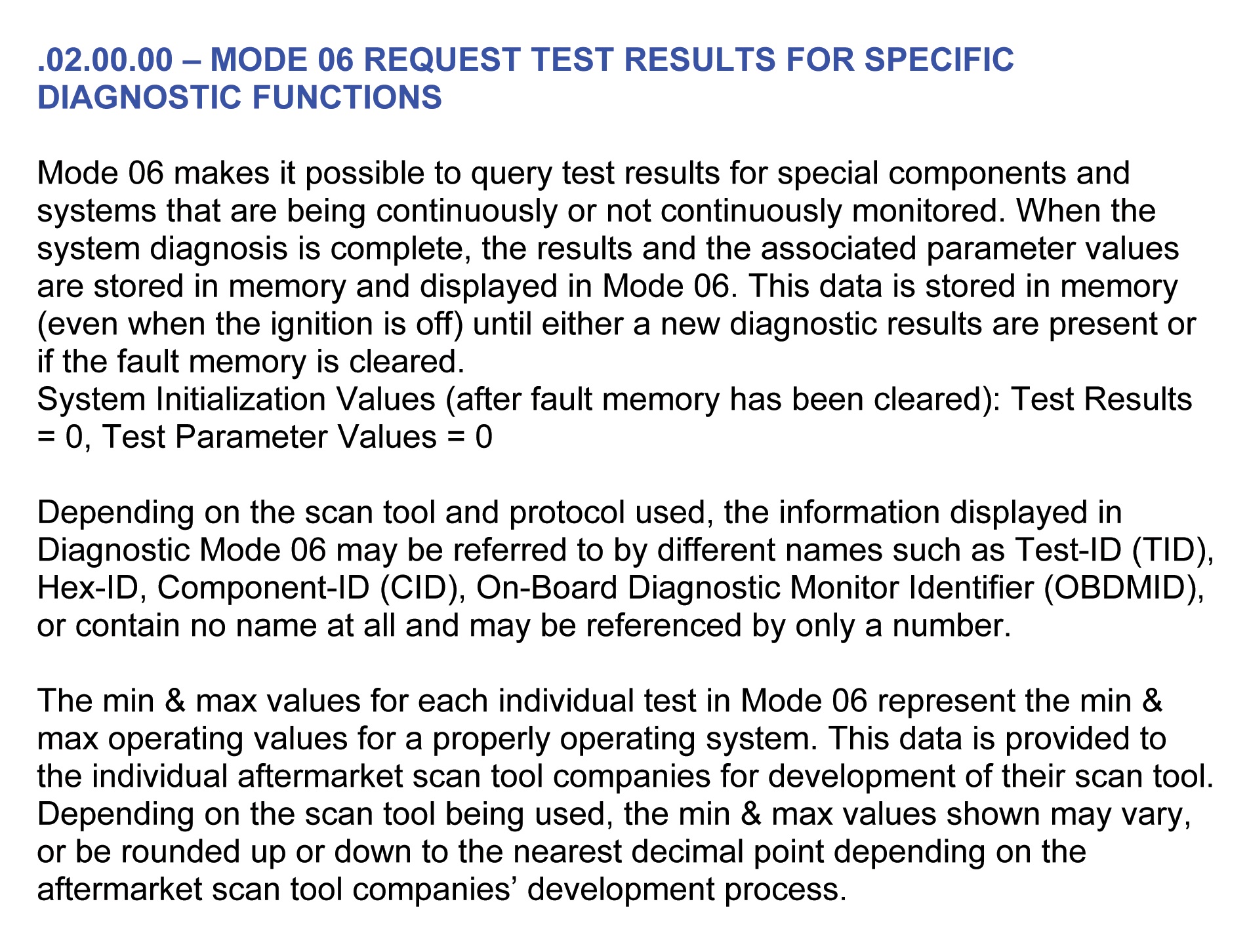

Fig 19: Mode 6 Data (2005-06 6.0L BSB) (1 Of 9)

G00448718

Courtesy of AUDI OF AMERICA, INC.

Fig 20: Mode 6 Data (2005-06 6.0L BSB) (2 Of 9)

G00448719

Courtesy of AUDI OF AMERICA, INC.

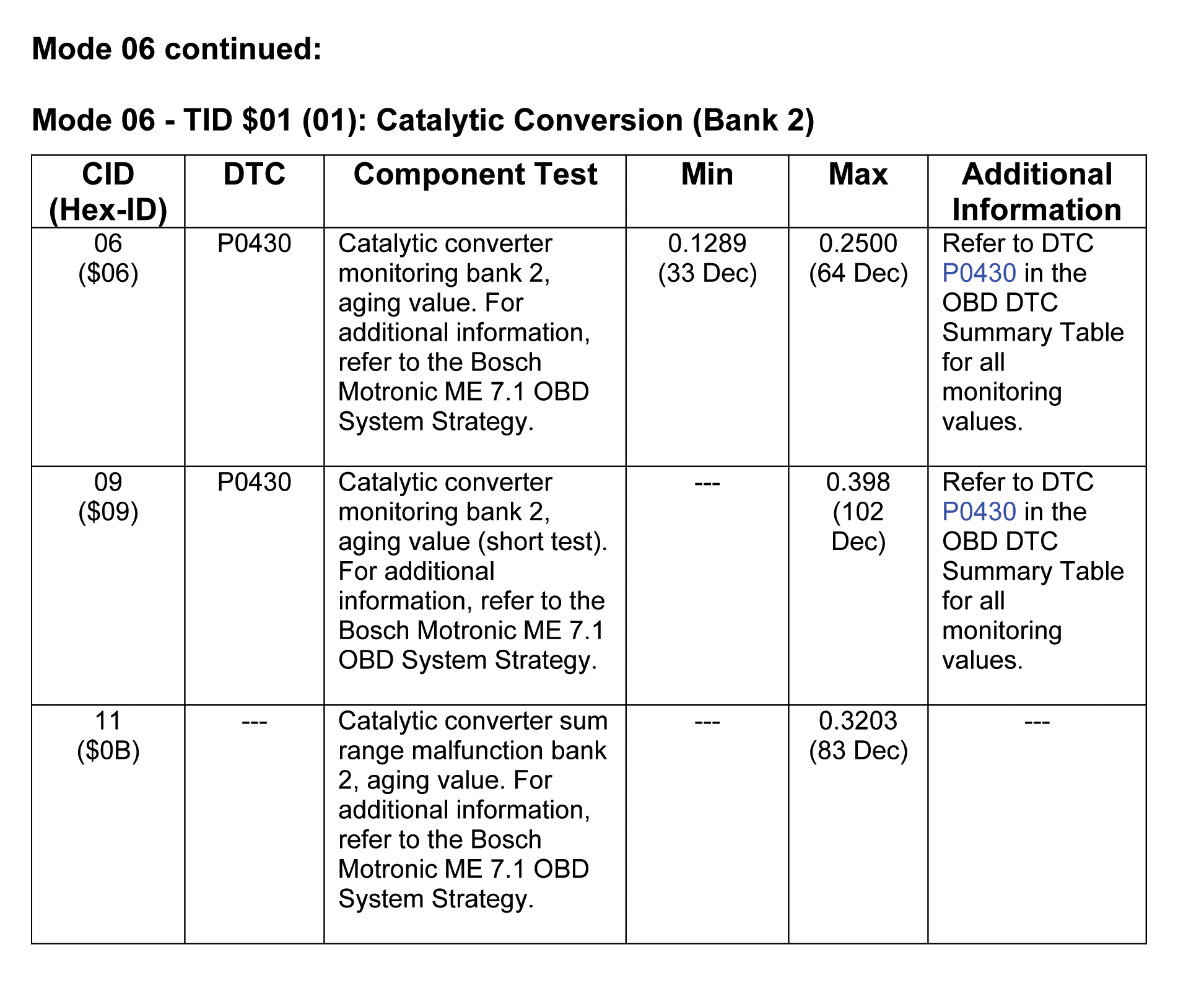

Fig 21: Mode 6 Data (2005-06 6.0L BSB) (3 Of 9)

G00448720

Courtesy of AUDI OF AMERICA, INC.

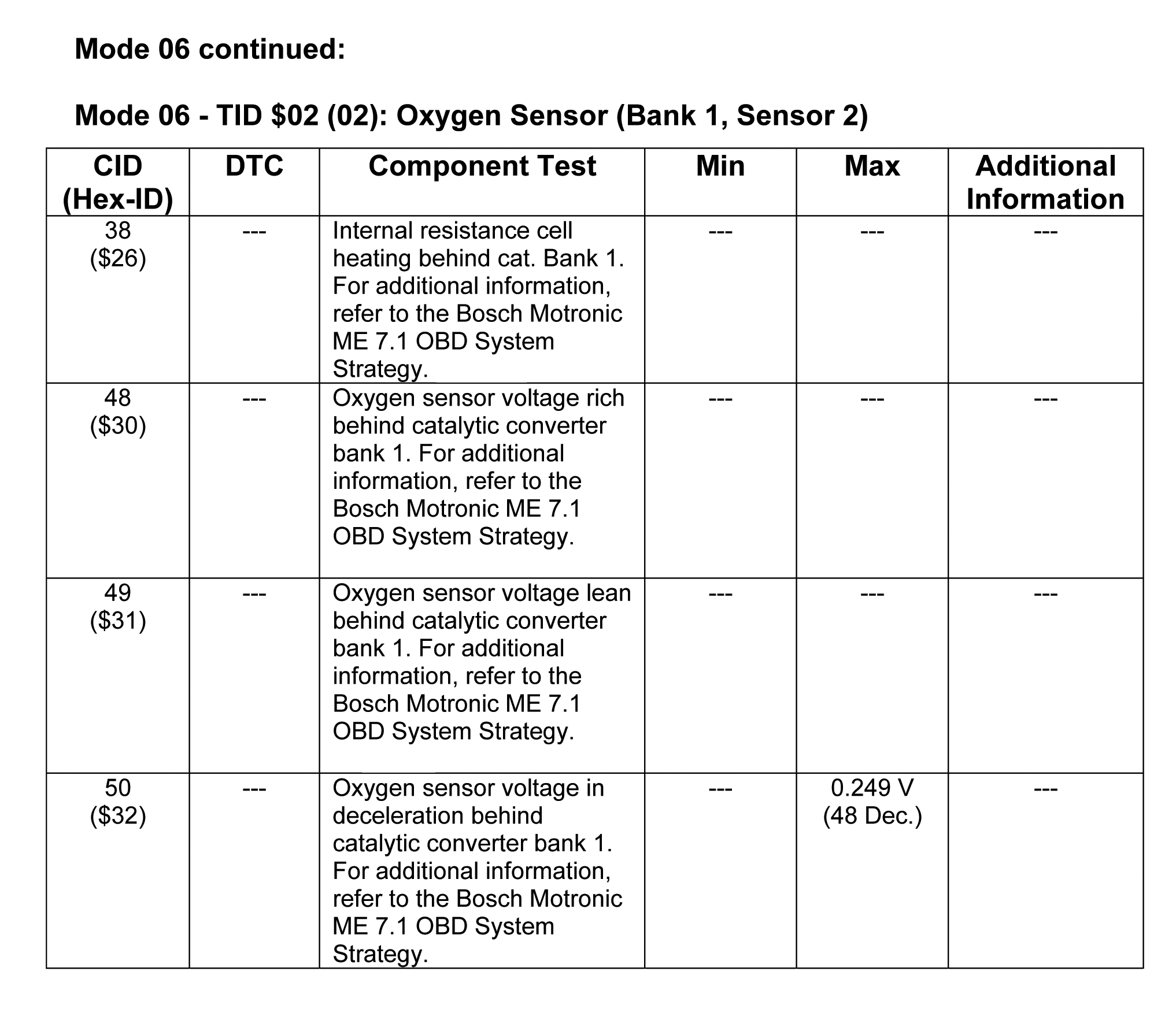

Fig 22: Mode 6 Data (2005-06 6.0L BSB) (4 Of 9)

G00104992

Courtesy of AUDI OF AMERICA, INC.

Fig 23: Mode 6 Data (2005-06 6.0L BSB) (5 Of 9)

G00104993

Courtesy of AUDI OF AMERICA, INC.

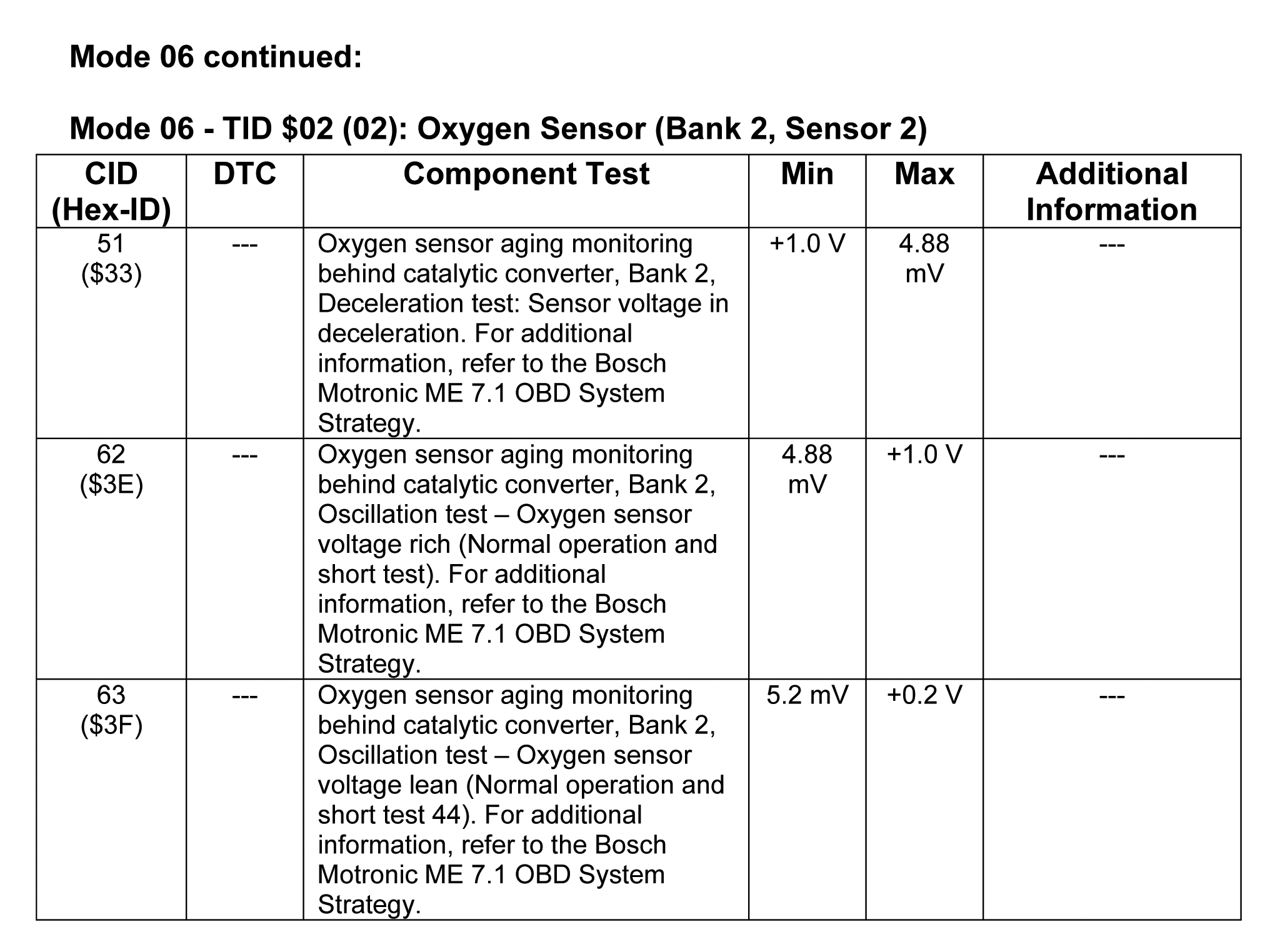

Fig 24: Mode 6 Data (2005-06 6.0L BSB) (6 Of 9)

G00104994

Courtesy of AUDI OF AMERICA, INC.

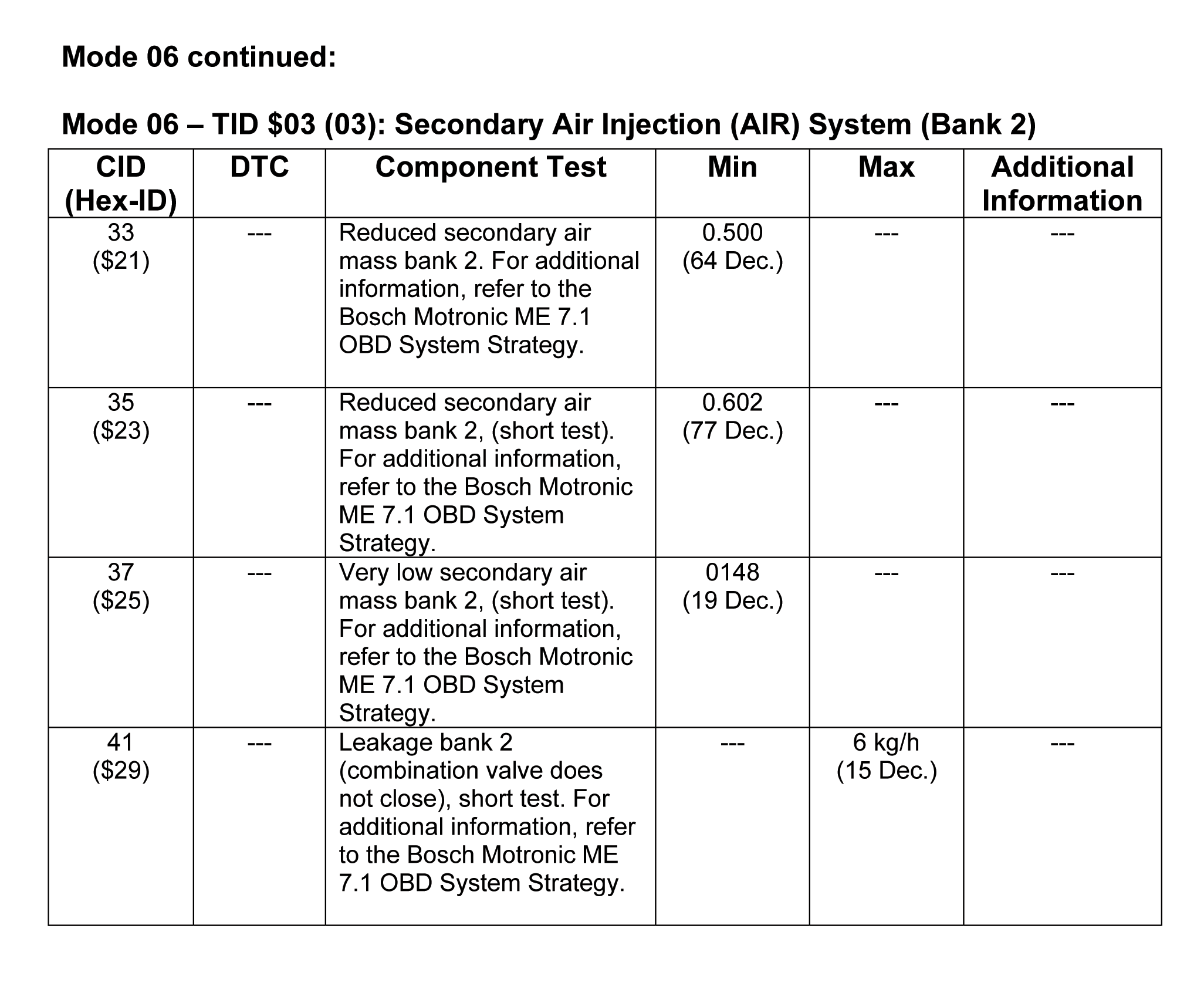

Fig 25: Mode 6 Data (2005-06 6.0L BSB) (7 Of 9)

G00104995

Courtesy of AUDI OF AMERICA, INC.

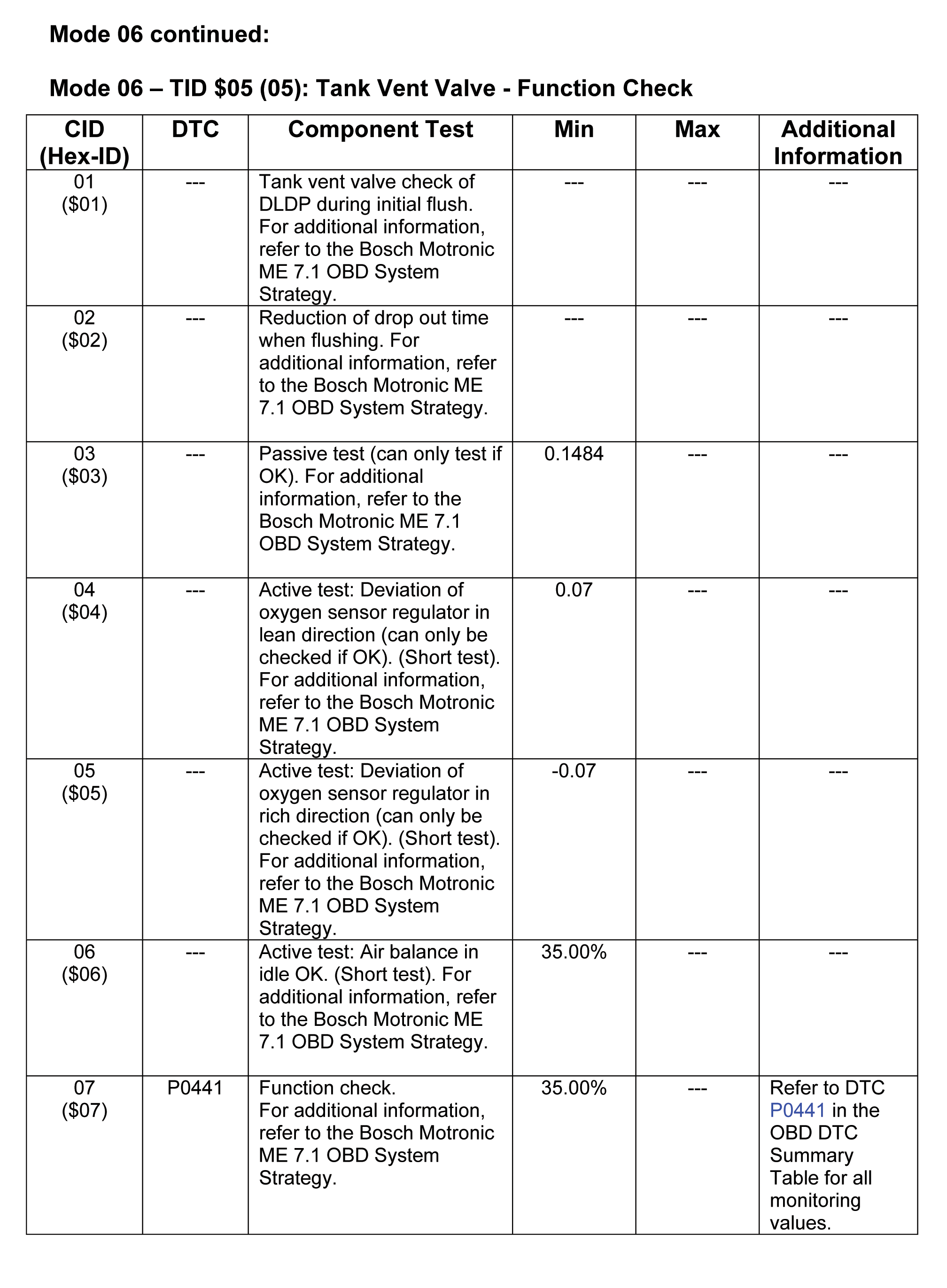

Fig 26: Mode 6 Data (2005-06 6.0L BSB) (8 Of 9)

G00104996

Courtesy of AUDI OF AMERICA, INC.

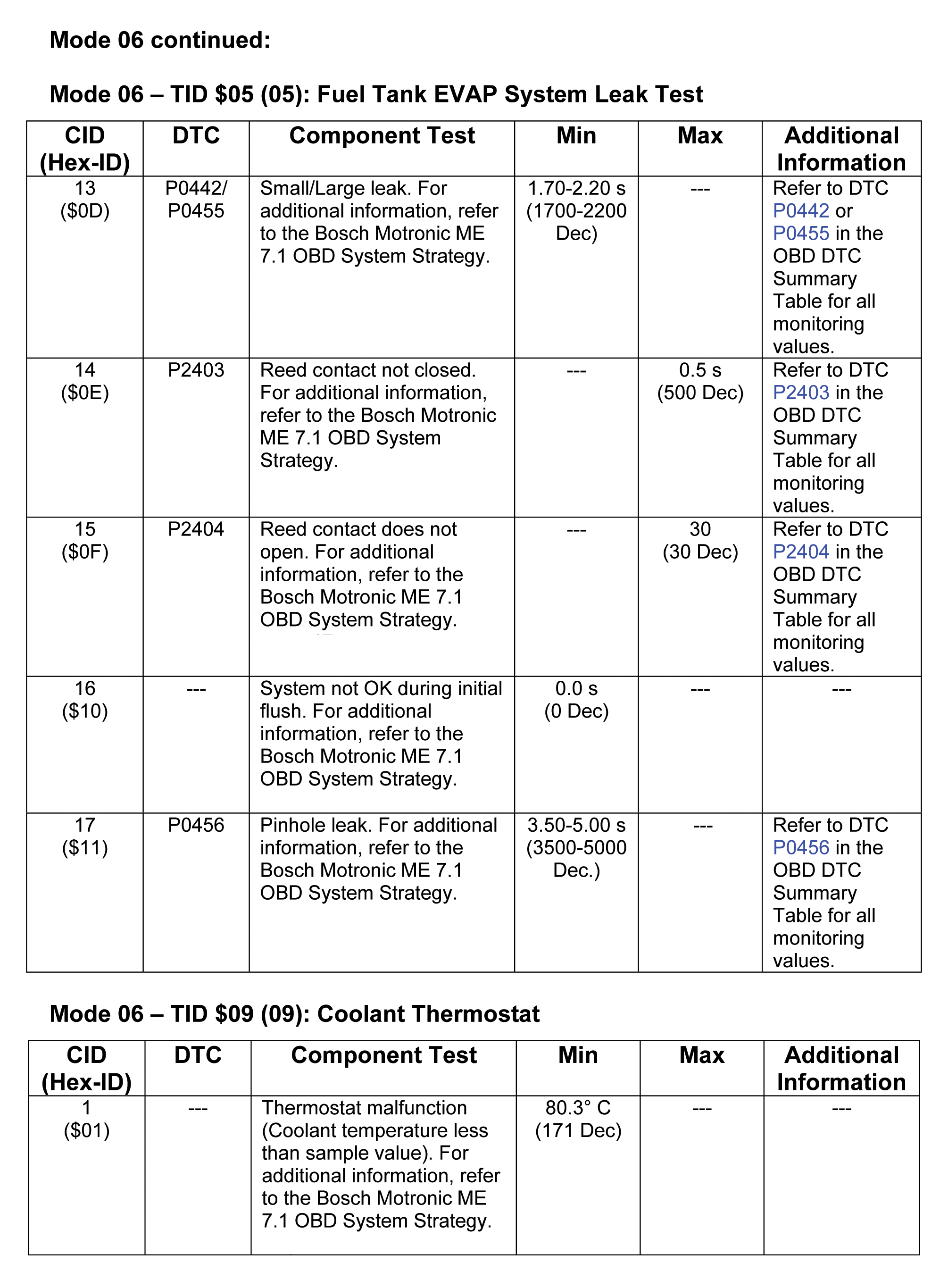

Fig 27: Mode 6 Data (2005-06 6.0L BSB) (9 Of 9)

G00104997

Courtesy of AUDI OF AMERICA, INC.

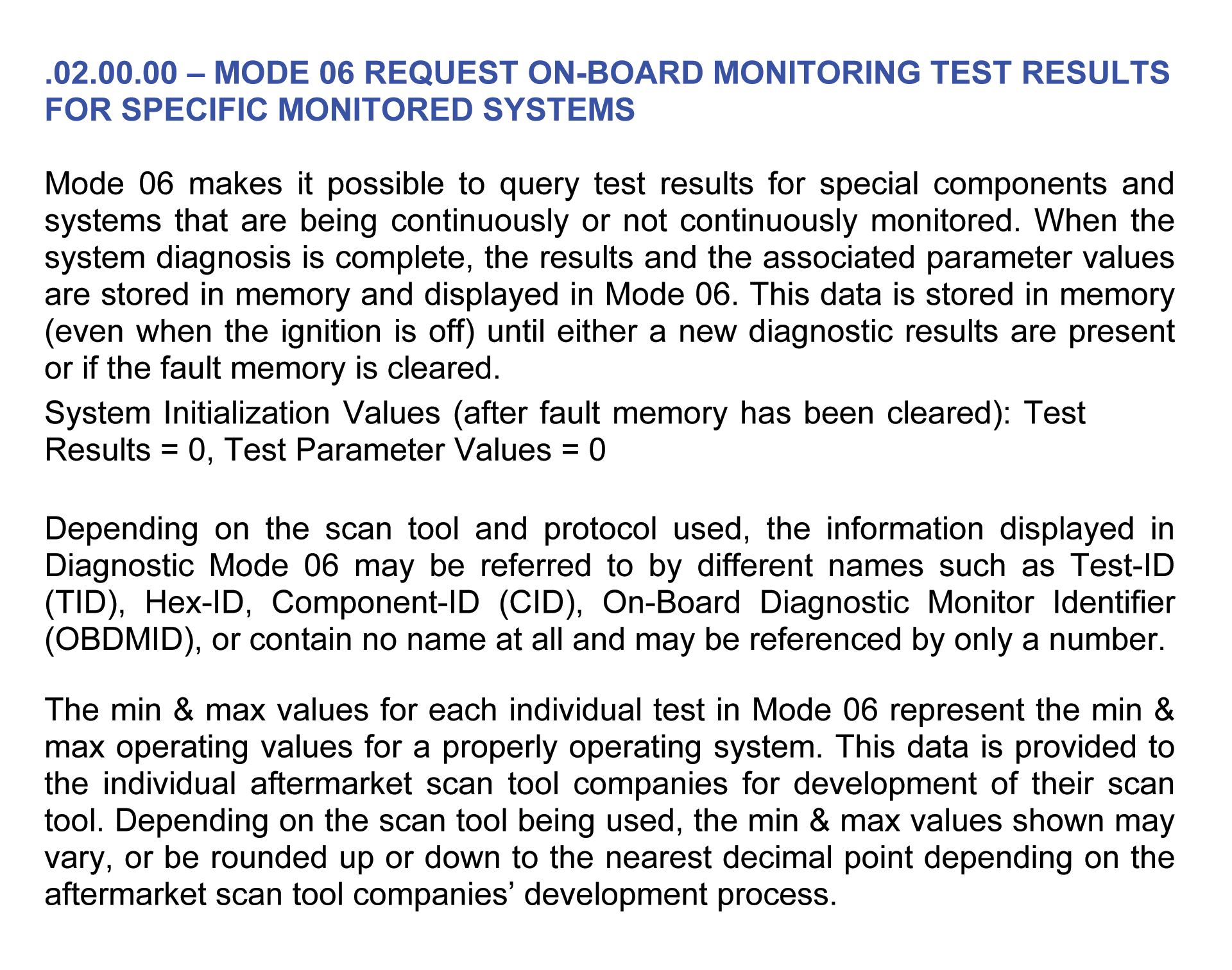

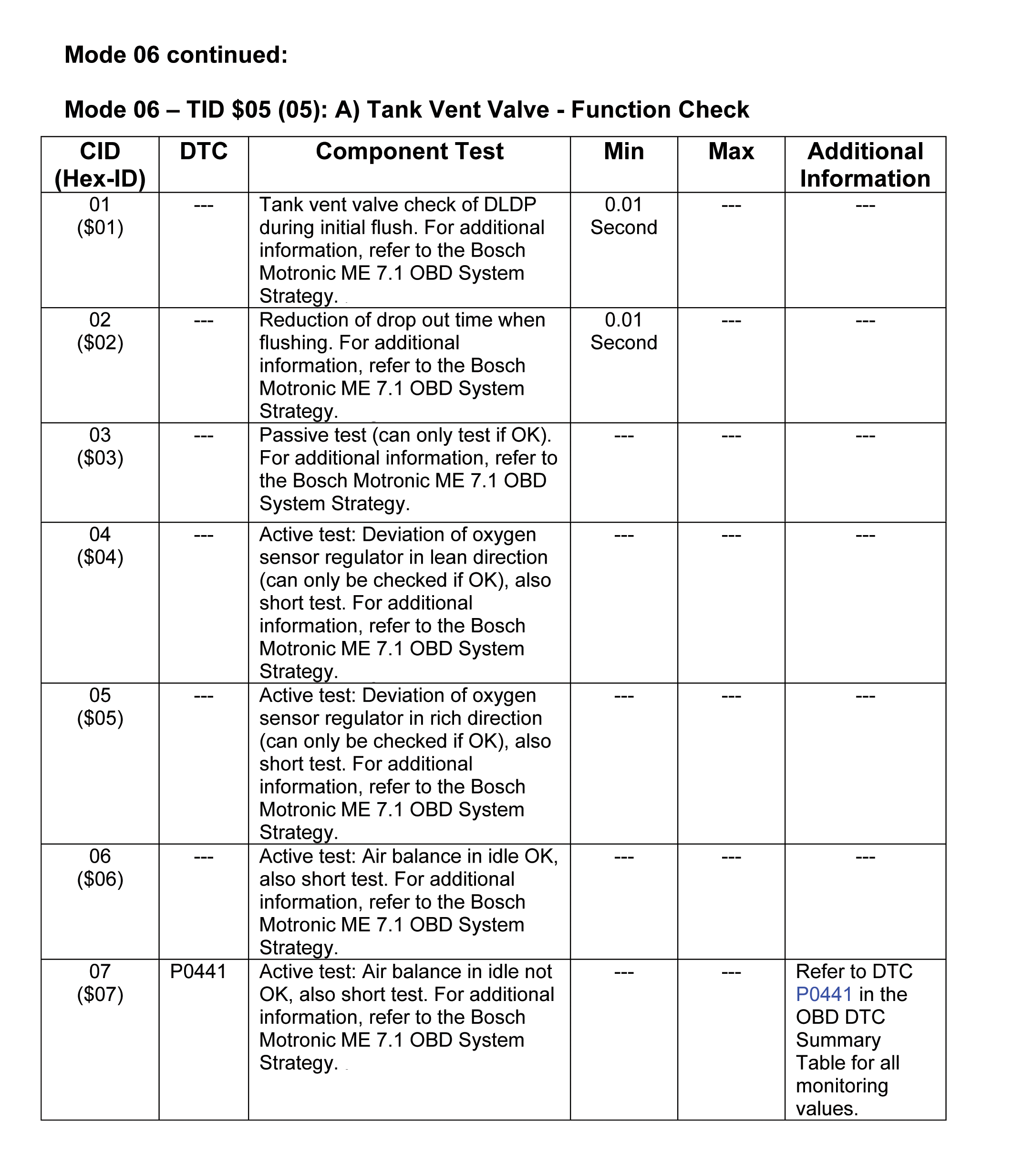

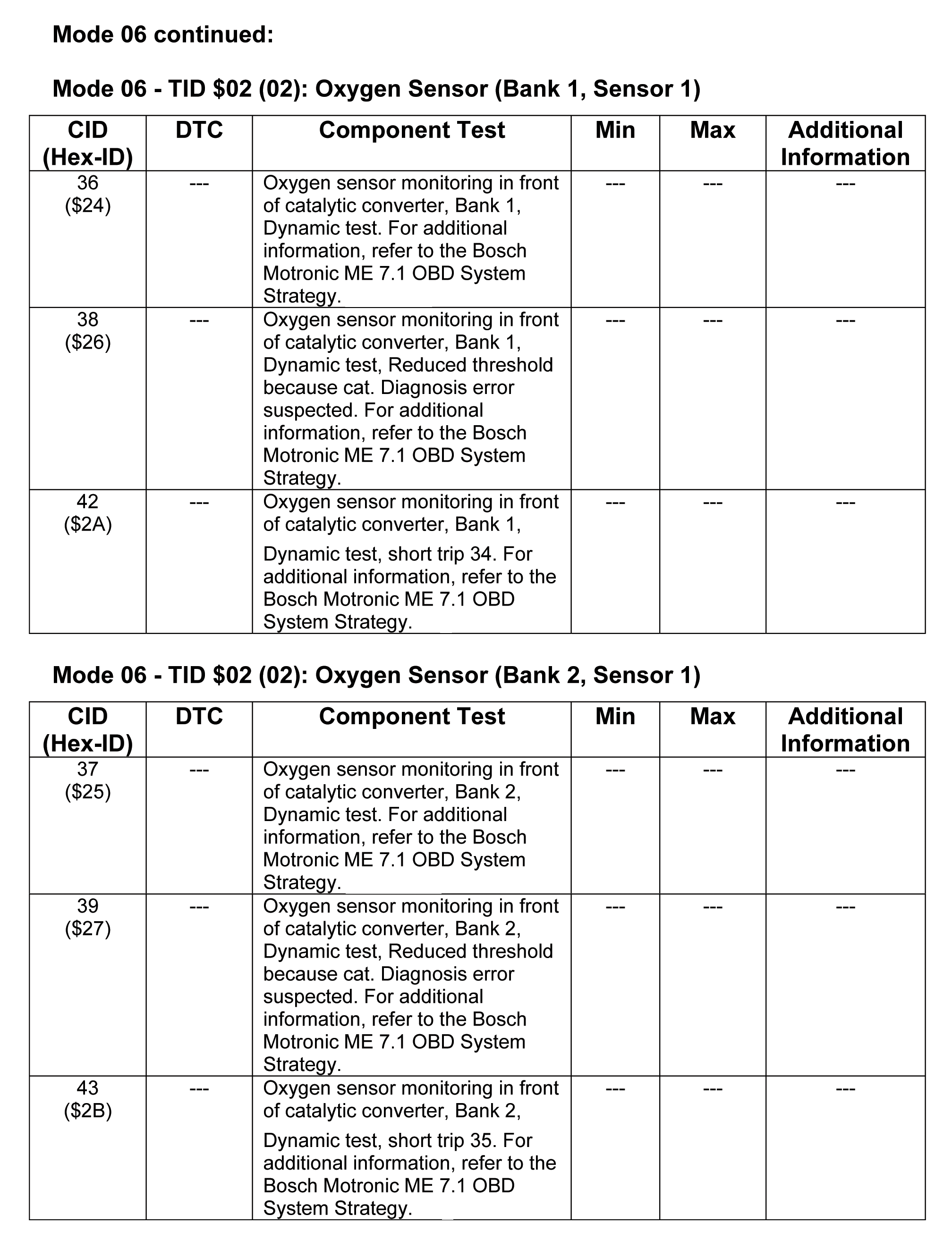

Fig 28: Mode 6 Data (2006 4.2L BGK) (1 Of 12)

G00104998

Courtesy of AUDI OF AMERICA, INC.

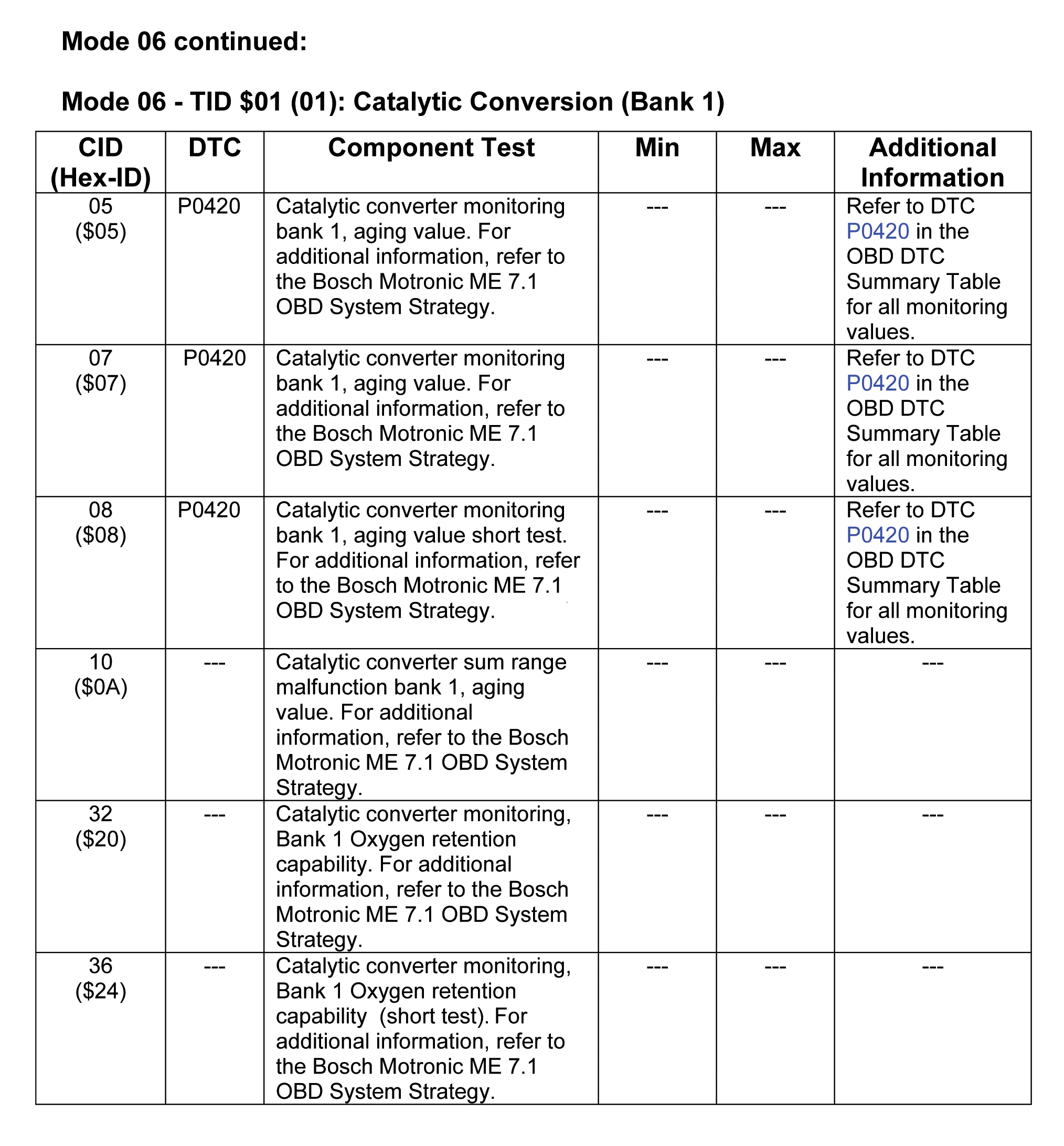

Fig 29: Mode 6 Data (2006 4.2L BGK) (2 Of 12)

G00104999

Courtesy of AUDI OF AMERICA, INC.

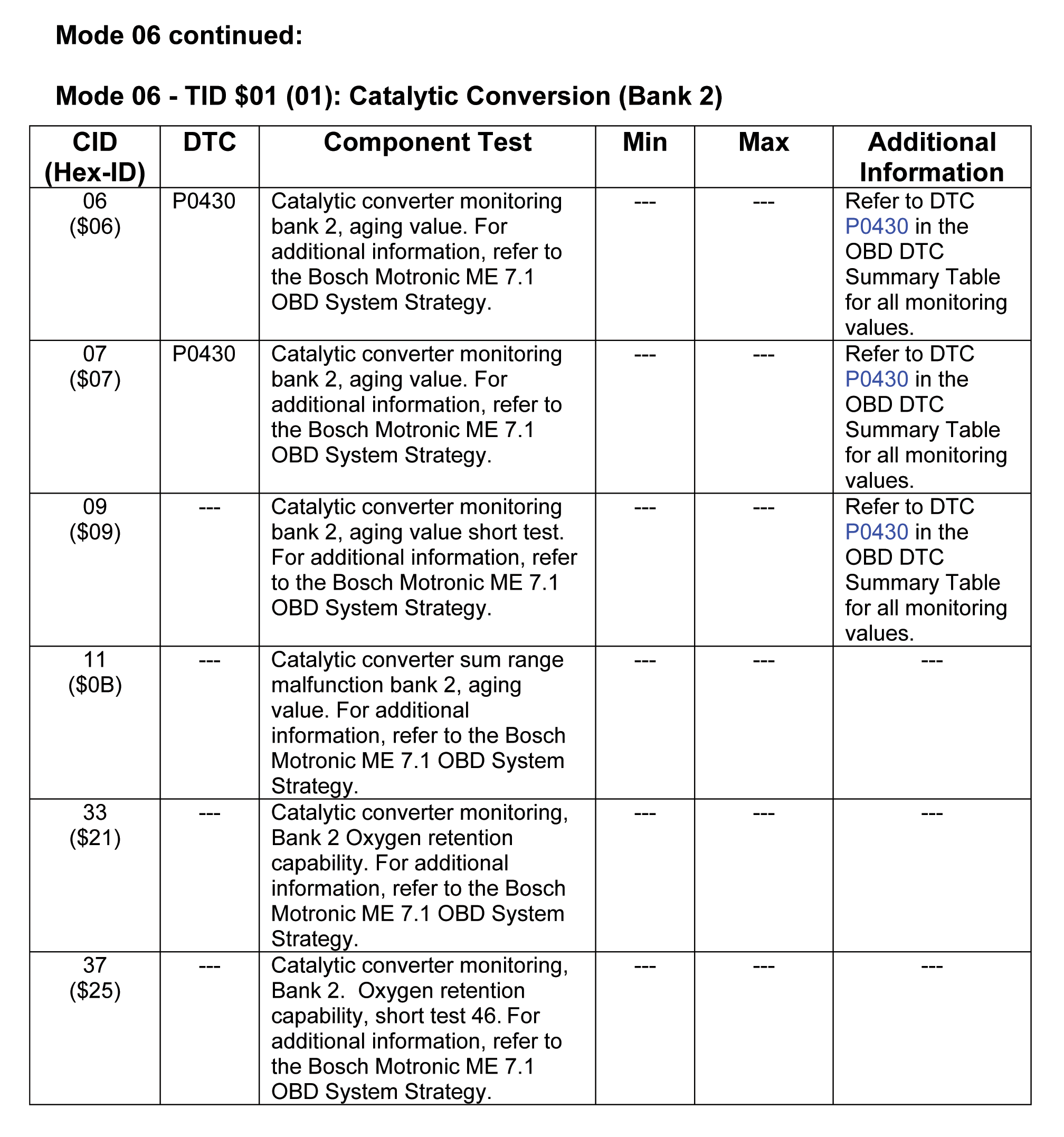

Fig 30: Mode 6 Data (2006 4.2L BGK) (3 Of 12)

G00105000

Courtesy of AUDI OF AMERICA, INC.

Fig 31: Mode 6 Data (2006 4.2L BGK) (4 Of 12)

G00105001

Courtesy of AUDI OF AMERICA, INC.

Fig 32: Mode 6 Data (2006 4.2L BGK) (5 Of 12)

G00105002

Courtesy of AUDI OF AMERICA, INC.

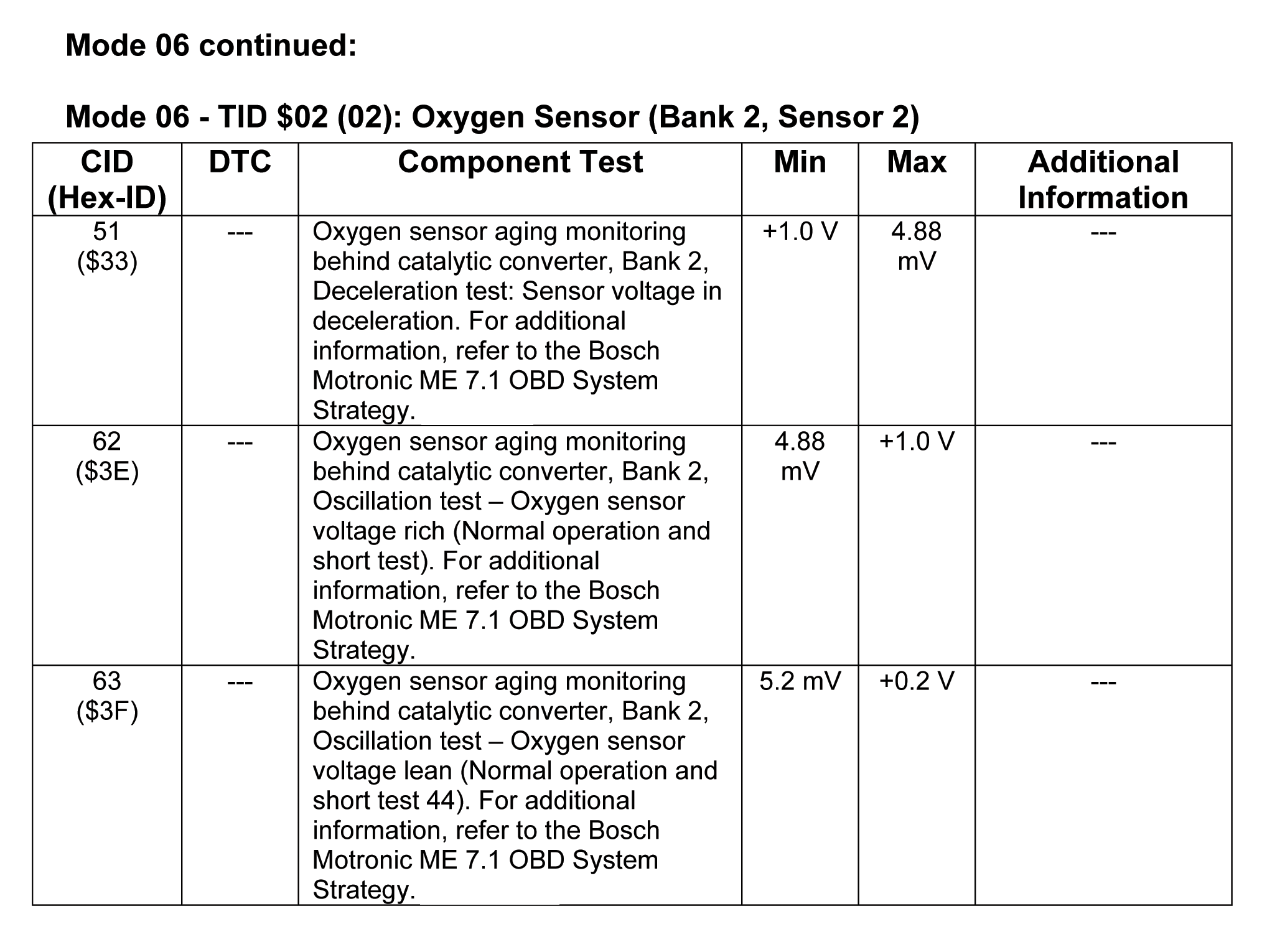

Fig 33: Mode 6 Data (2006 4.2L BGK) (6 Of 12)

G00105003

Courtesy of AUDI OF AMERICA, INC.

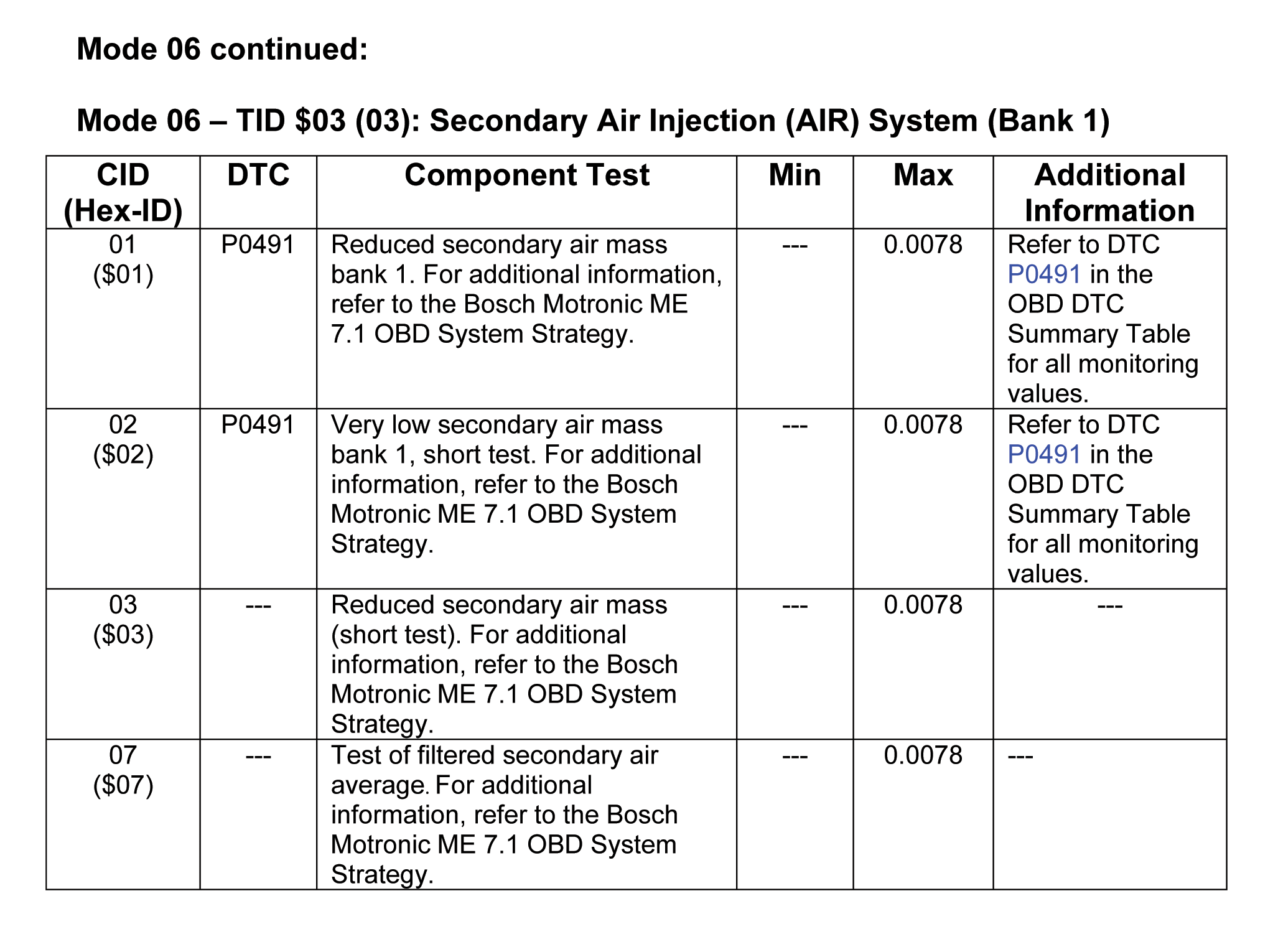

Fig 34: Mode 6 Data (2006 4.2L BGK) (7 Of 12)

G00105004

Courtesy of AUDI OF AMERICA, INC.

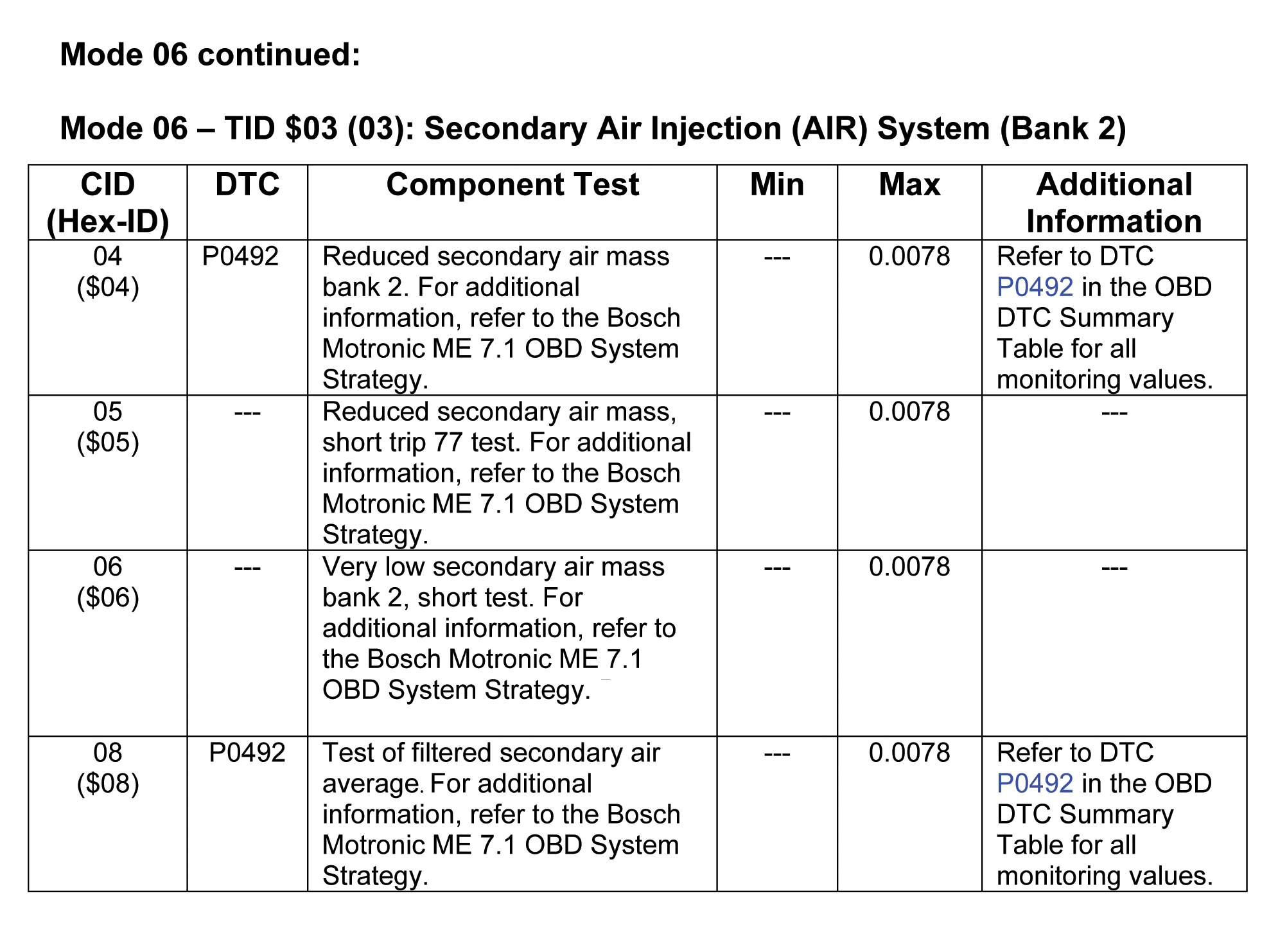

Fig 35: Mode 6 Data (2006 4.2L BGK) (8 Of 12)

G00105005

Courtesy of AUDI OF AMERICA, INC.

Fig 36: Mode 6 Data (2006 4.2L BGK) (9 Of 12)

G00105006

Courtesy of AUDI OF AMERICA, INC.

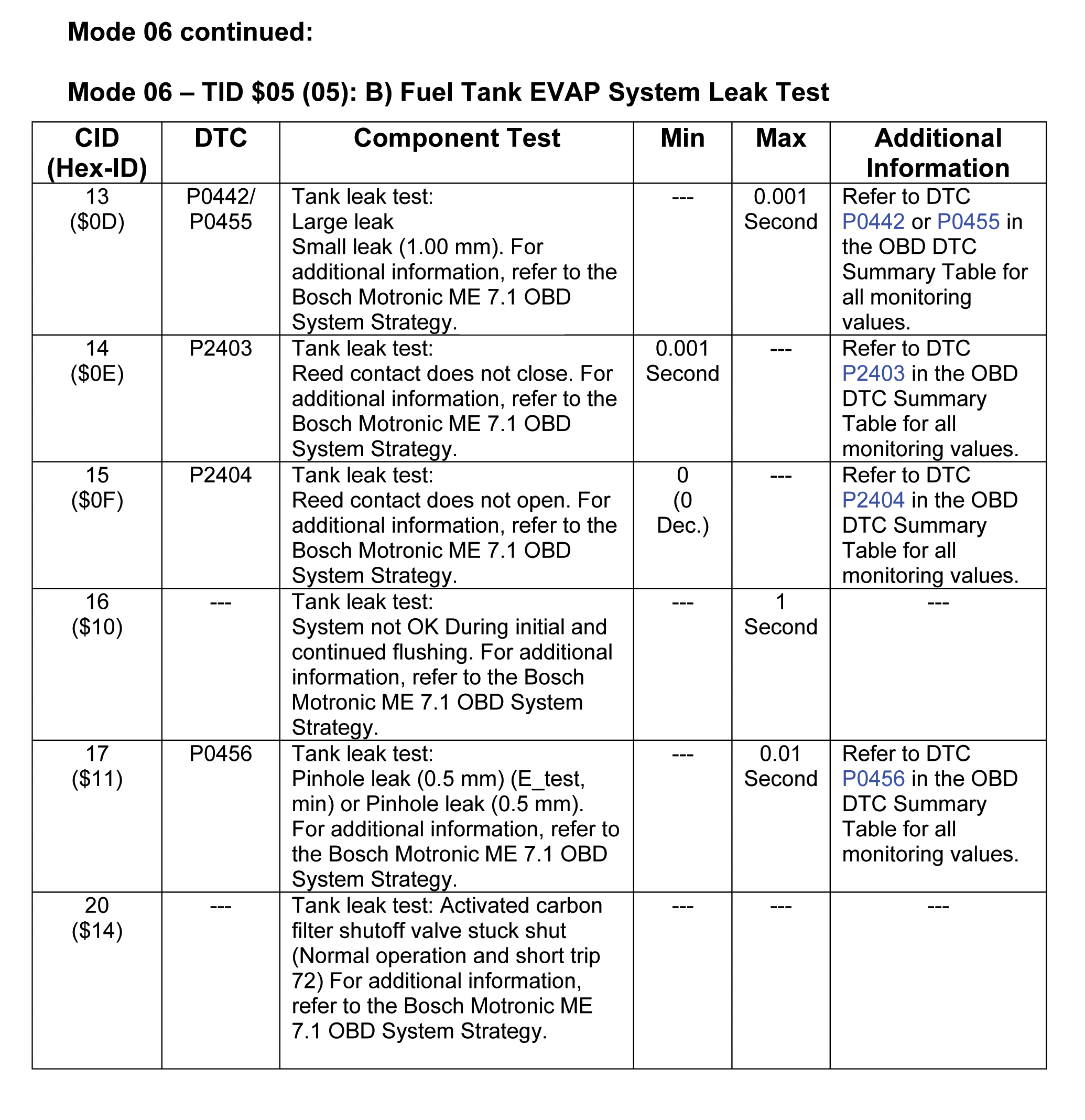

Fig 37: Mode 6 Data (2006 4.2L BGK) (10 Of 12)

G00105007

Courtesy of AUDI OF AMERICA, INC.

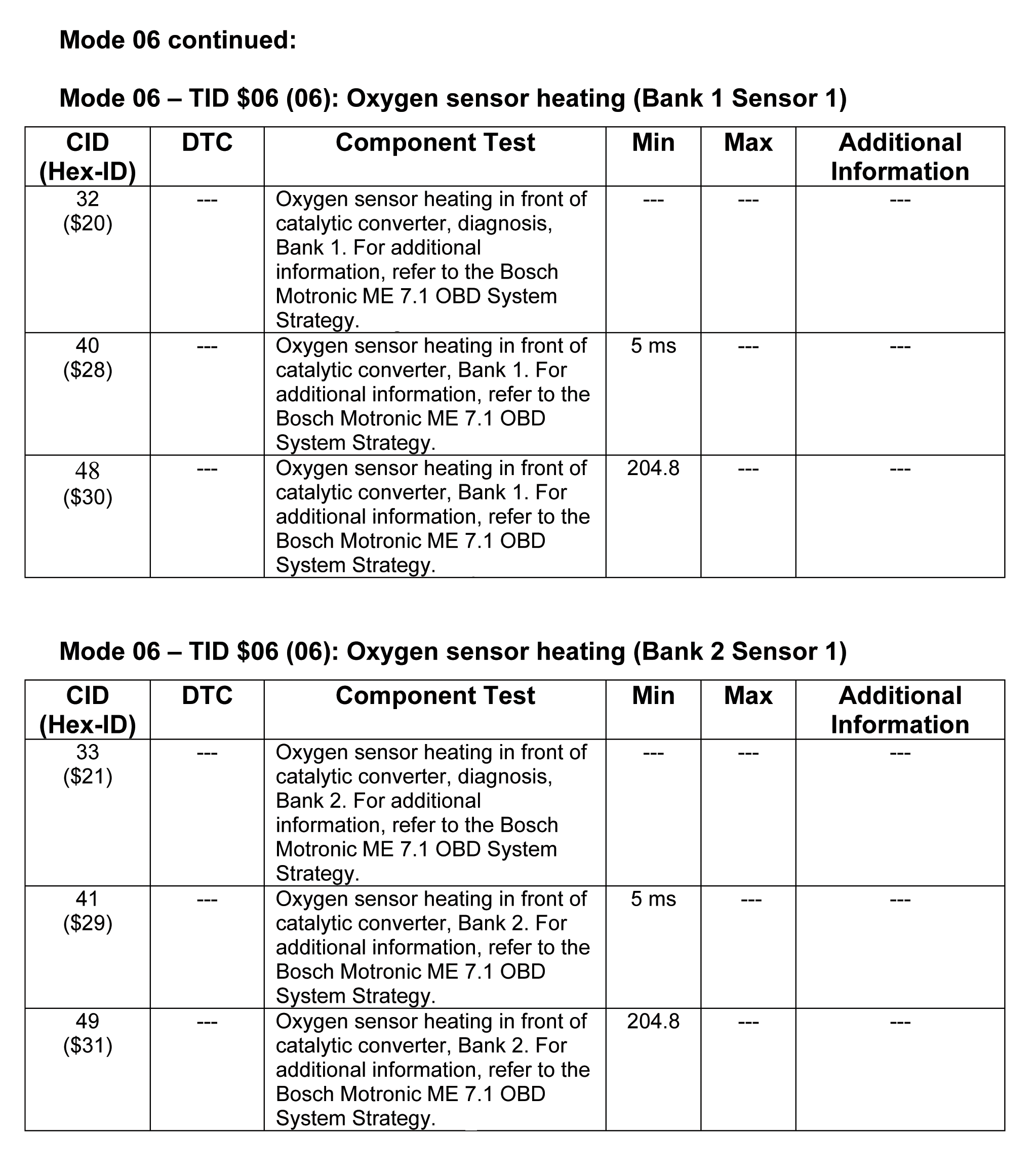

Fig 38: Mode 6 Data (2006 4.2L BGK) (11 Of 12)

G00105008

Courtesy of AUDI OF AMERICA, INC.

Fig 39: Mode 6 Data (2006 4.2L BGK) (12 Of 12)

G00105009

Courtesy of AUDI OF AMERICA, INC.

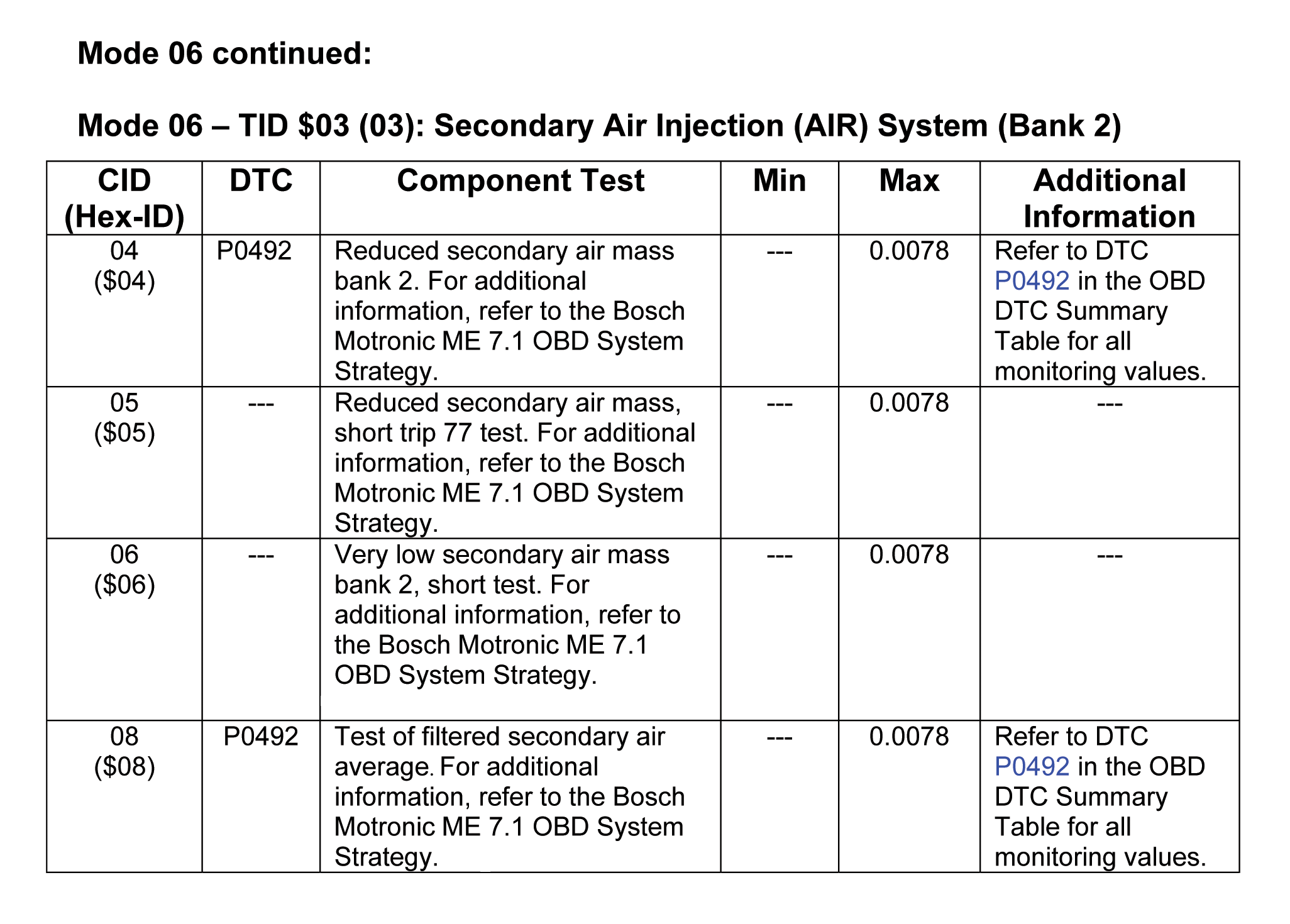

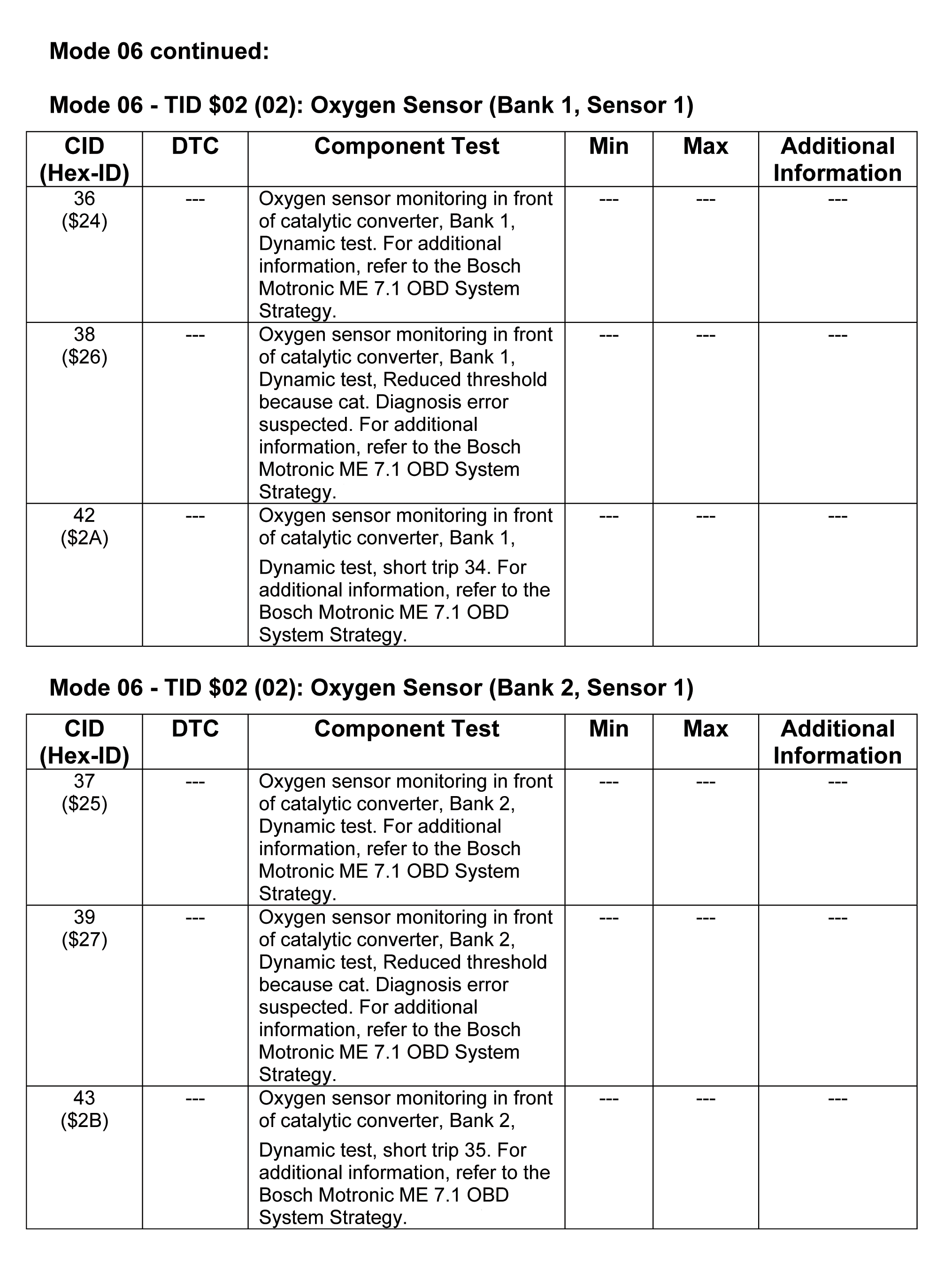

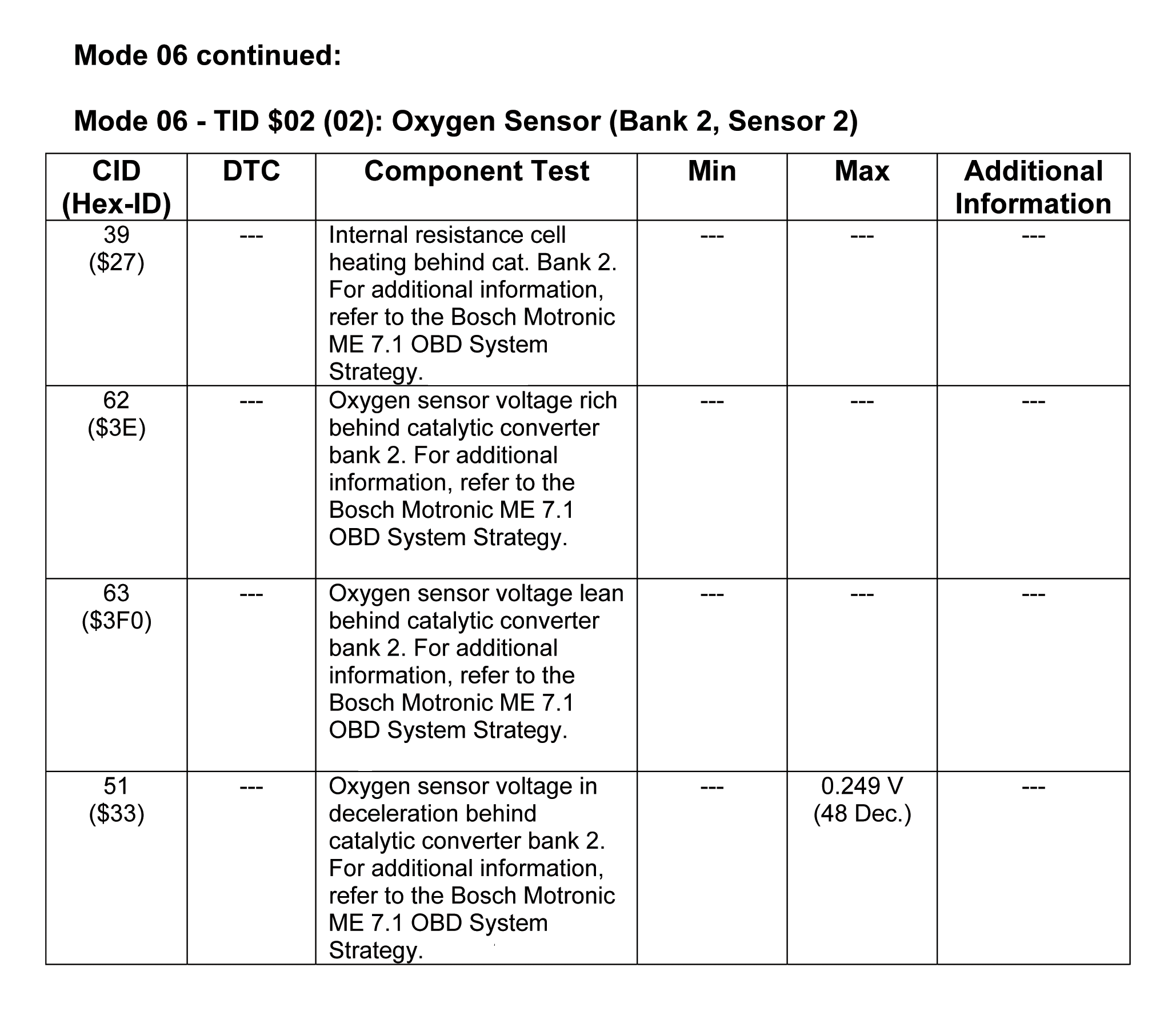

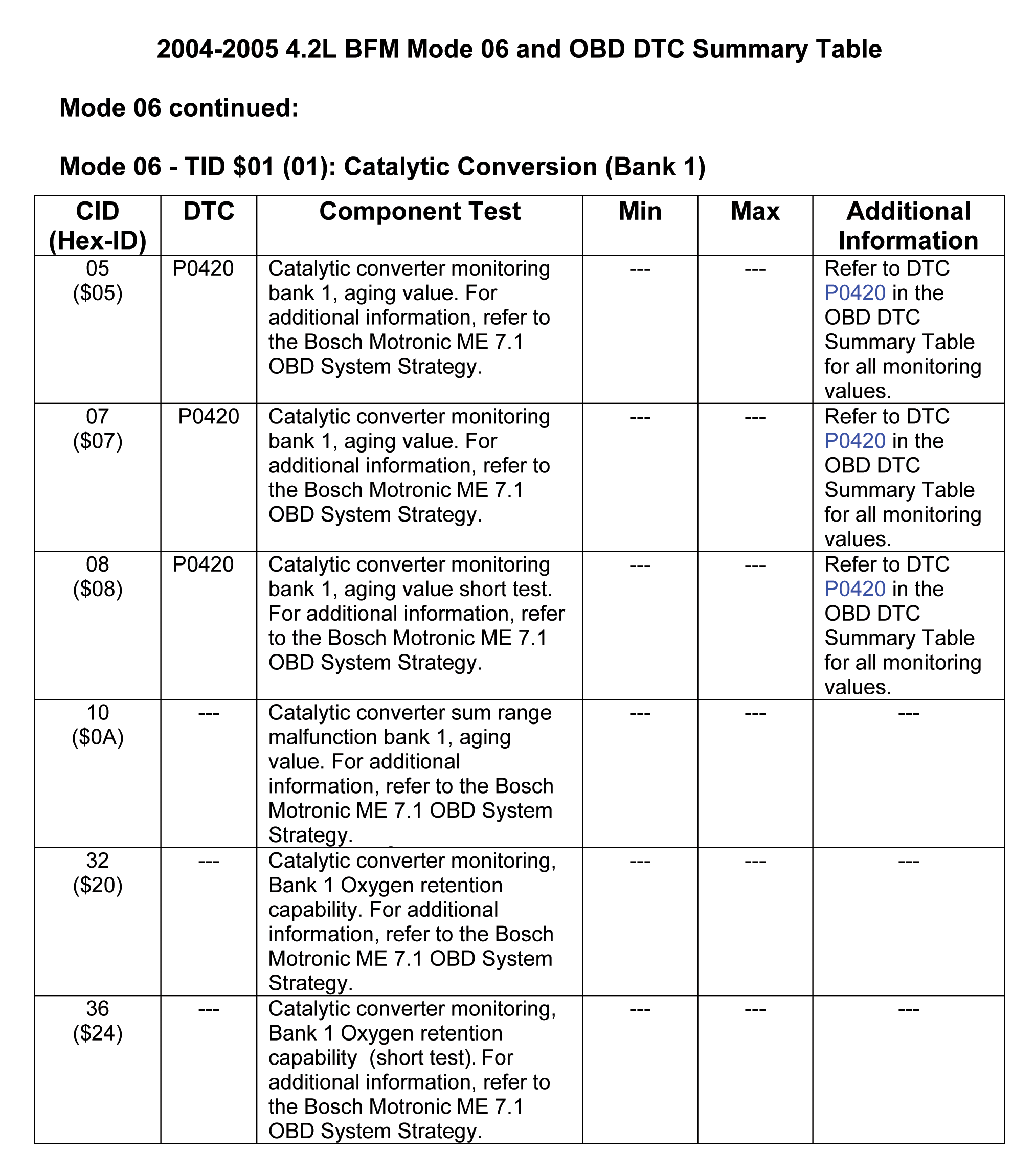

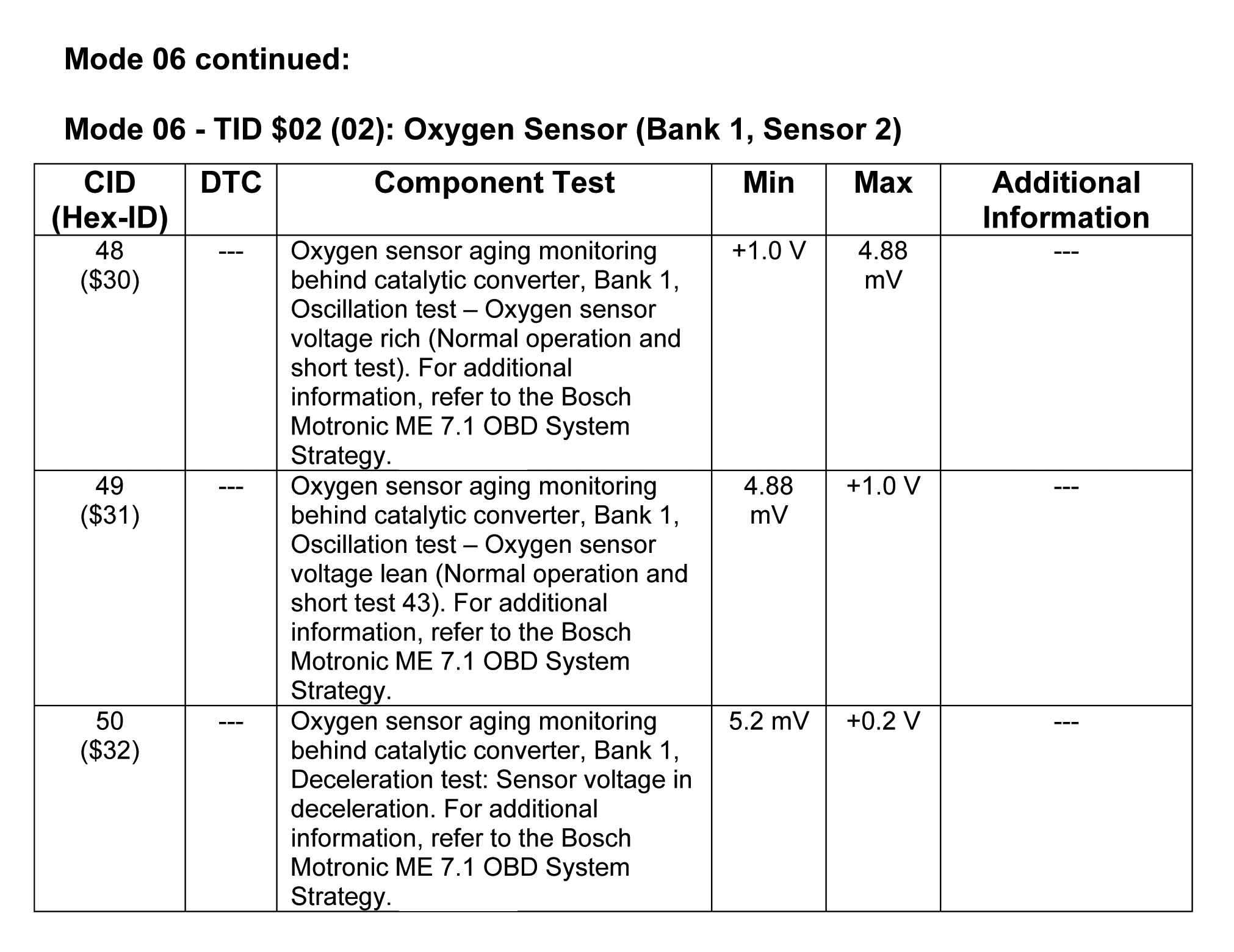

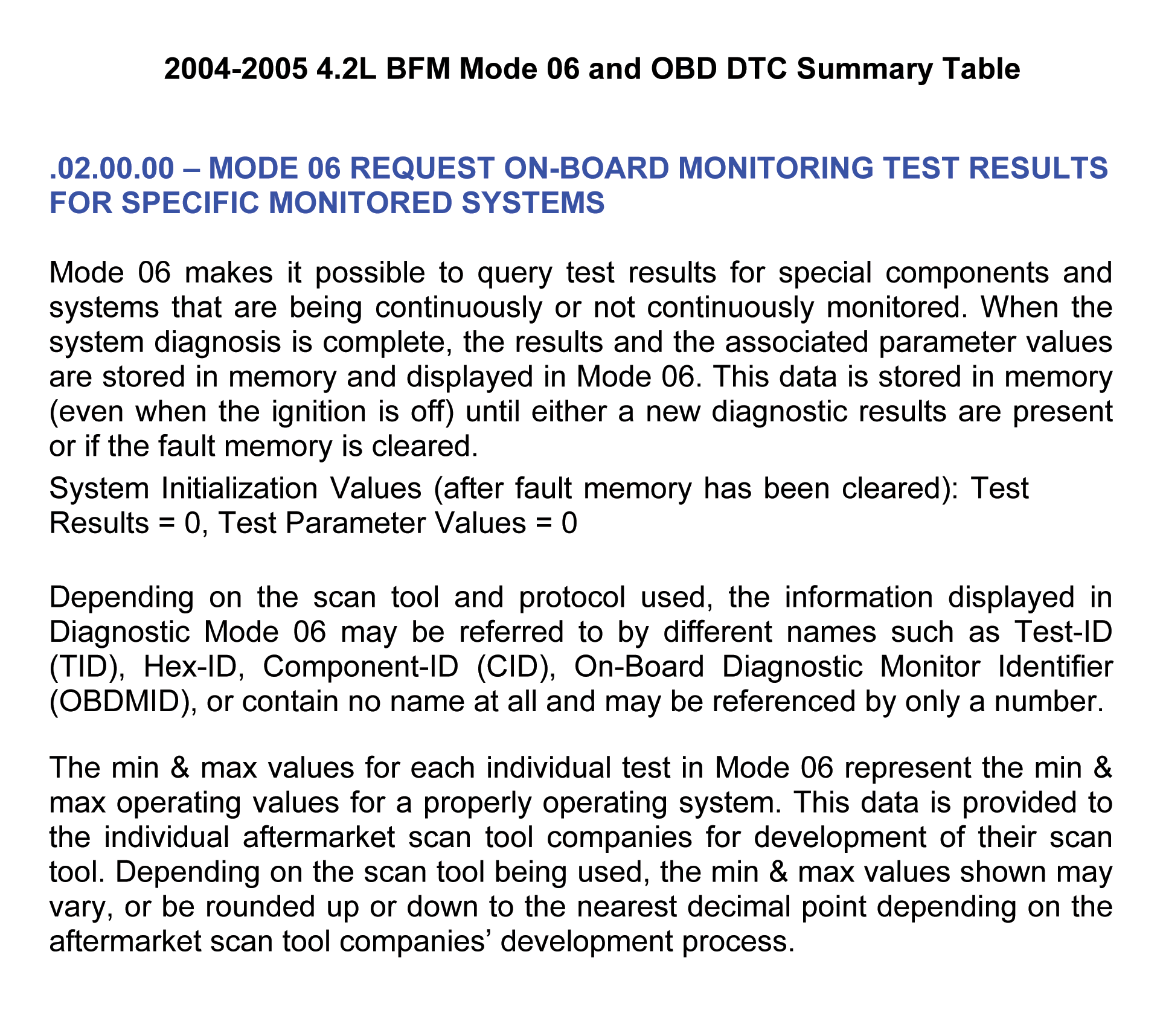

Fig 40: Mode 6 Data (2004-05 4.2L BFM) (1 Of 12)

G00105010

Courtesy of AUDI OF AMERICA, INC.

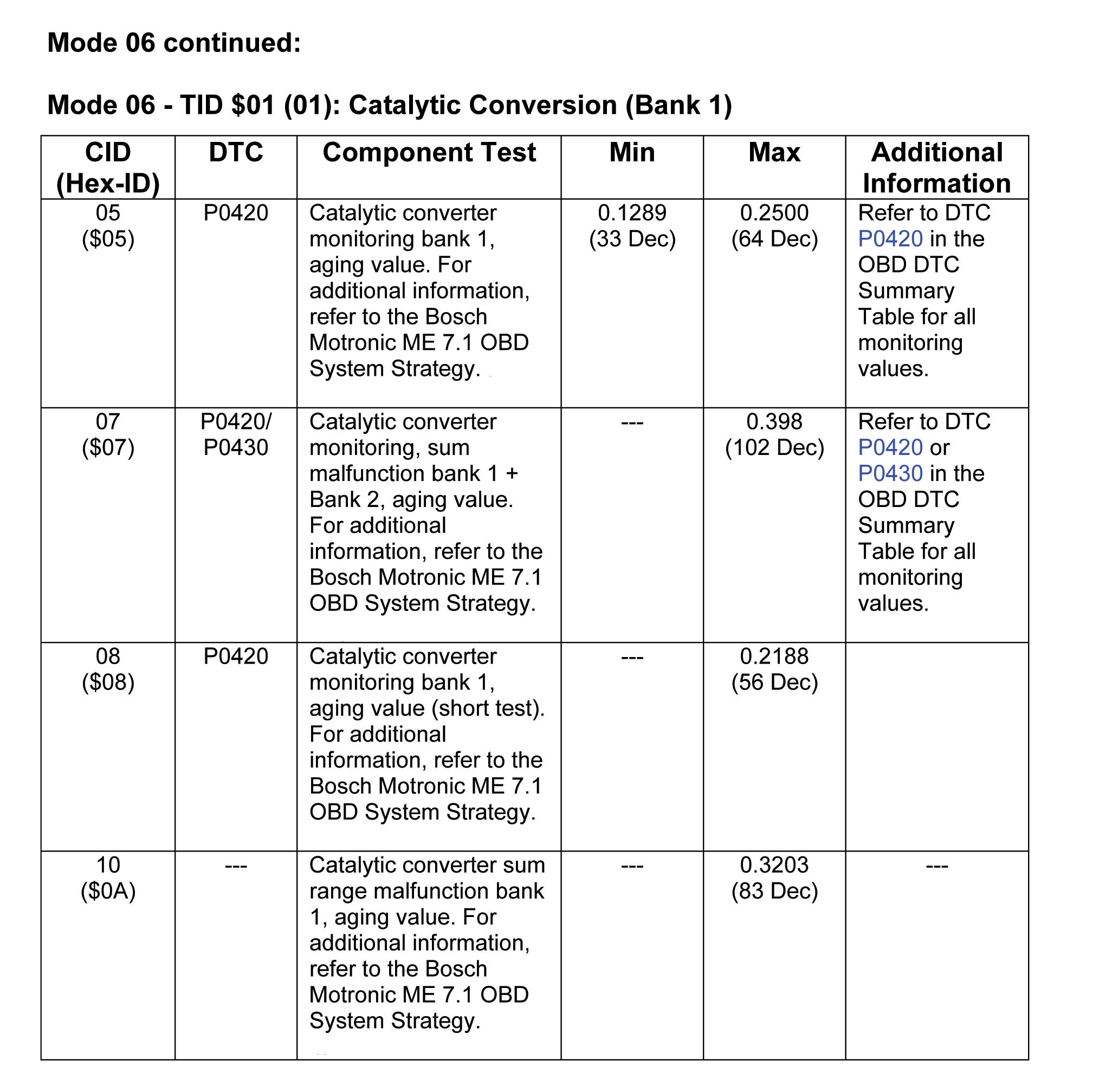

Fig 41: Mode 6 Data (2004-05 4.2L BFM) (2 Of 12)

G00105011

Courtesy of AUDI OF AMERICA, INC.

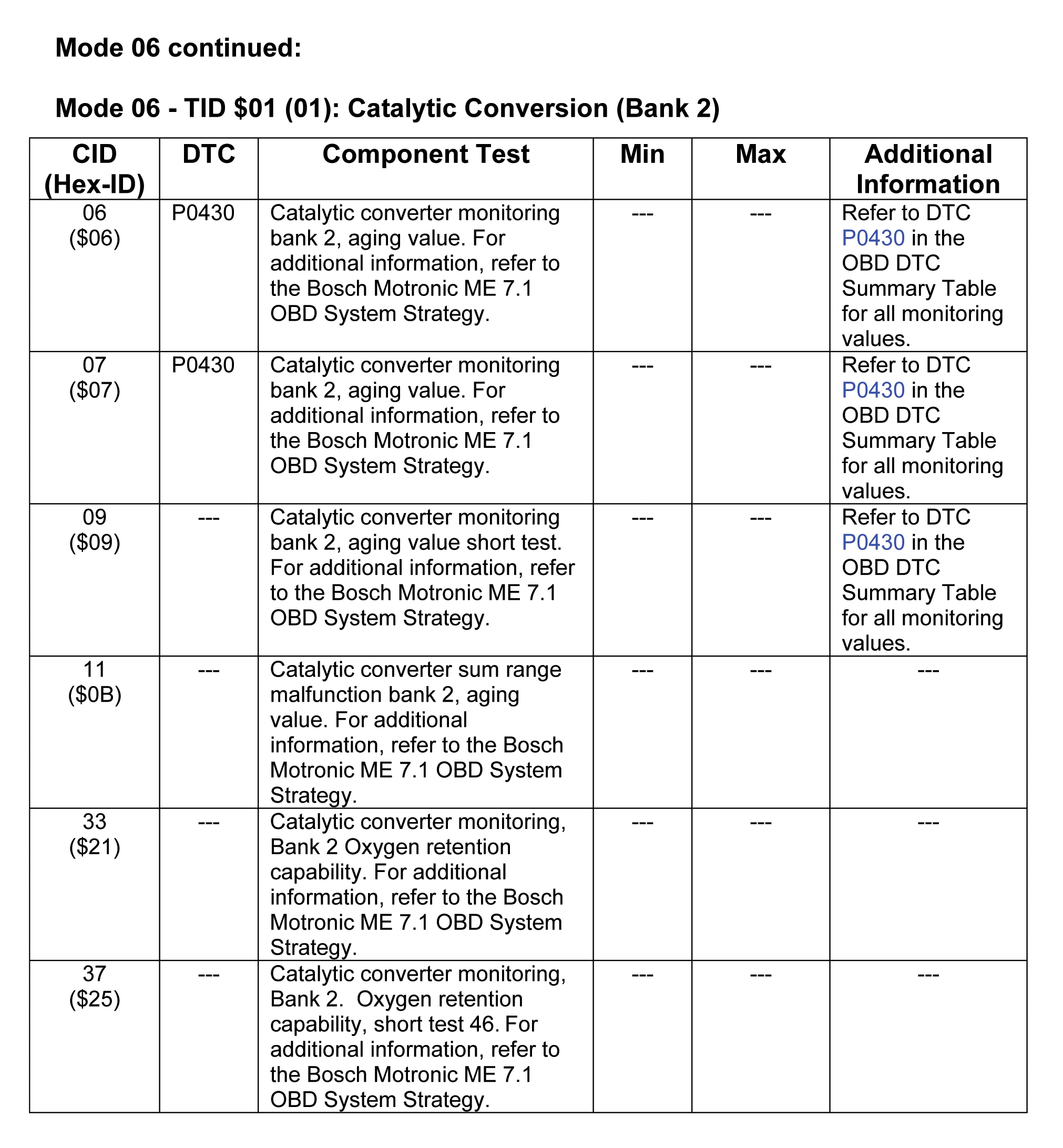

Fig 42: Mode 6 Data (2004-05 4.2L BFM) (3 Of 12)

G00105012

Courtesy of AUDI OF AMERICA, INC.

Fig 43: Mode 6 Data (2004-05 4.2L BFM) (4 Of 12)

G00105013

Courtesy of AUDI OF AMERICA, INC.

Fig 44: Mode 6 Data (2004-05 4.2L BFM) (5 Of 12)

G00105014

Courtesy of AUDI OF AMERICA, INC.

Fig 45: Mode 6 Data (2004-05 4.2L BFM) (6 Of 12)

G00105015

Courtesy of AUDI OF AMERICA, INC.

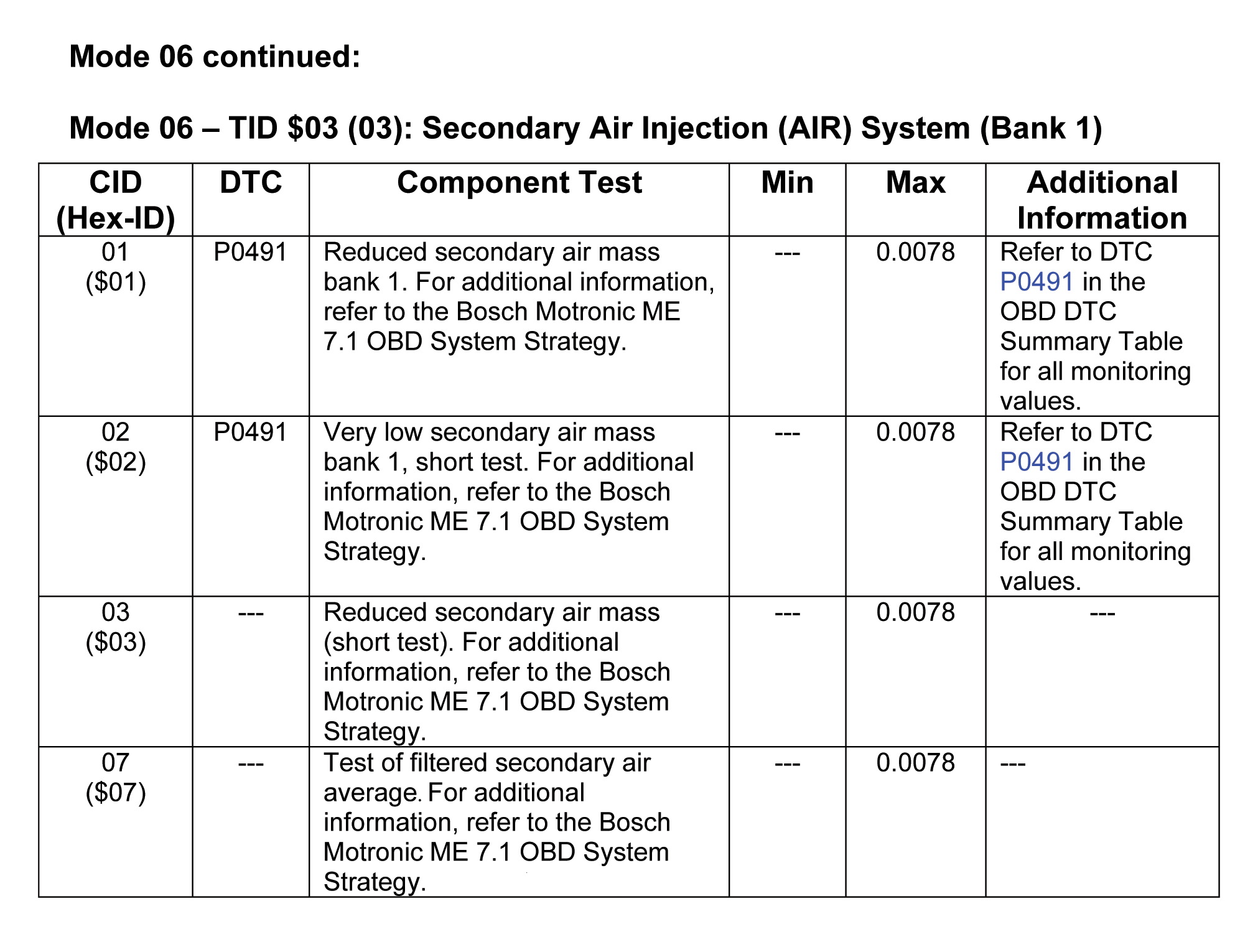

Fig 46: Mode 6 Data (2004-05 4.2L BFM) (7 Of 12)

G00105016

Courtesy of AUDI OF AMERICA, INC.

Fig 47: Mode 6 Data (2004-05 4.2L BFM) (8 Of 12)

G00105017

Courtesy of AUDI OF AMERICA, INC.

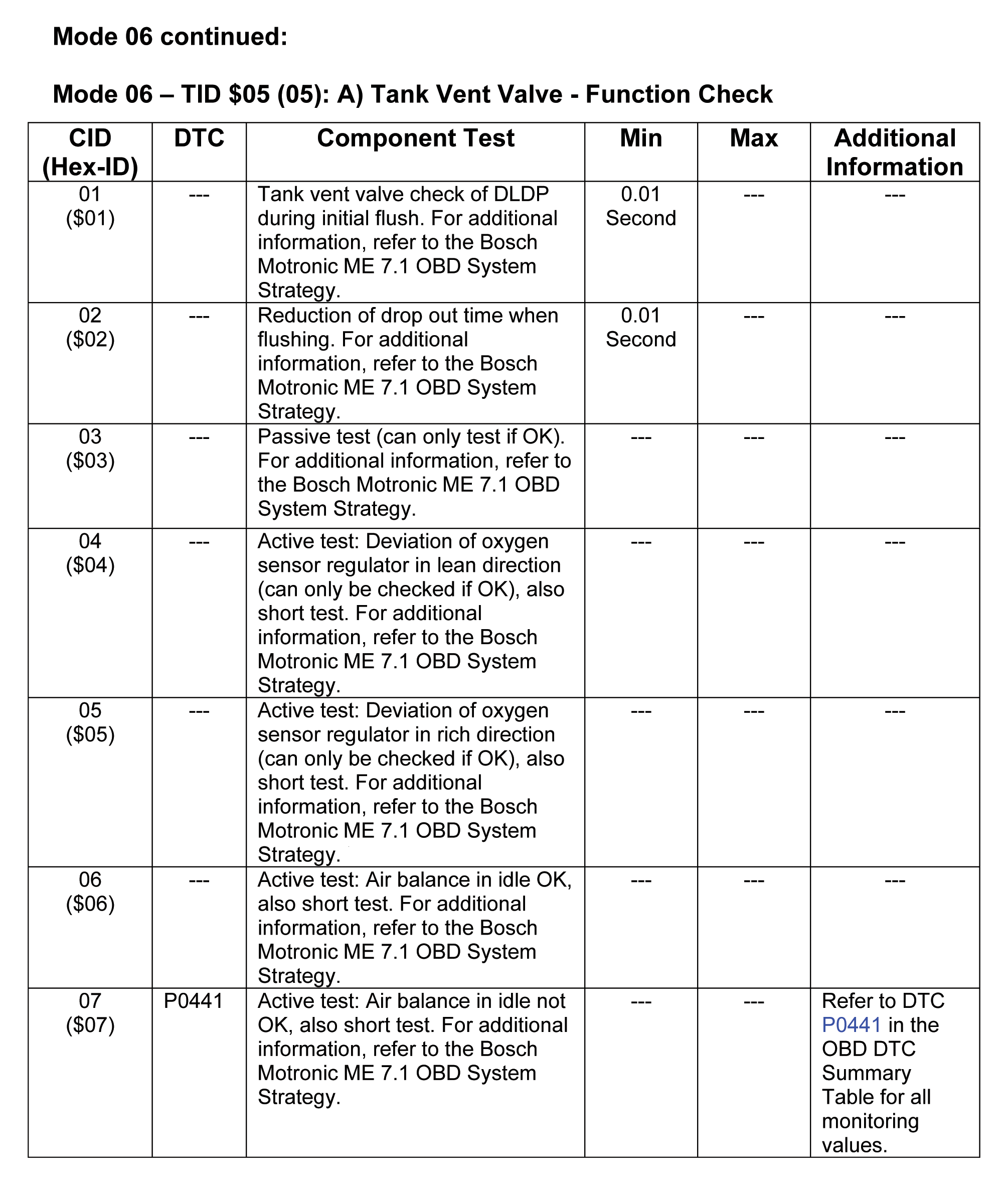

Fig 48: Mode 6 Data (2004-05 4.2L BFM) (9 Of 12)

G00105018

Courtesy of AUDI OF AMERICA, INC.

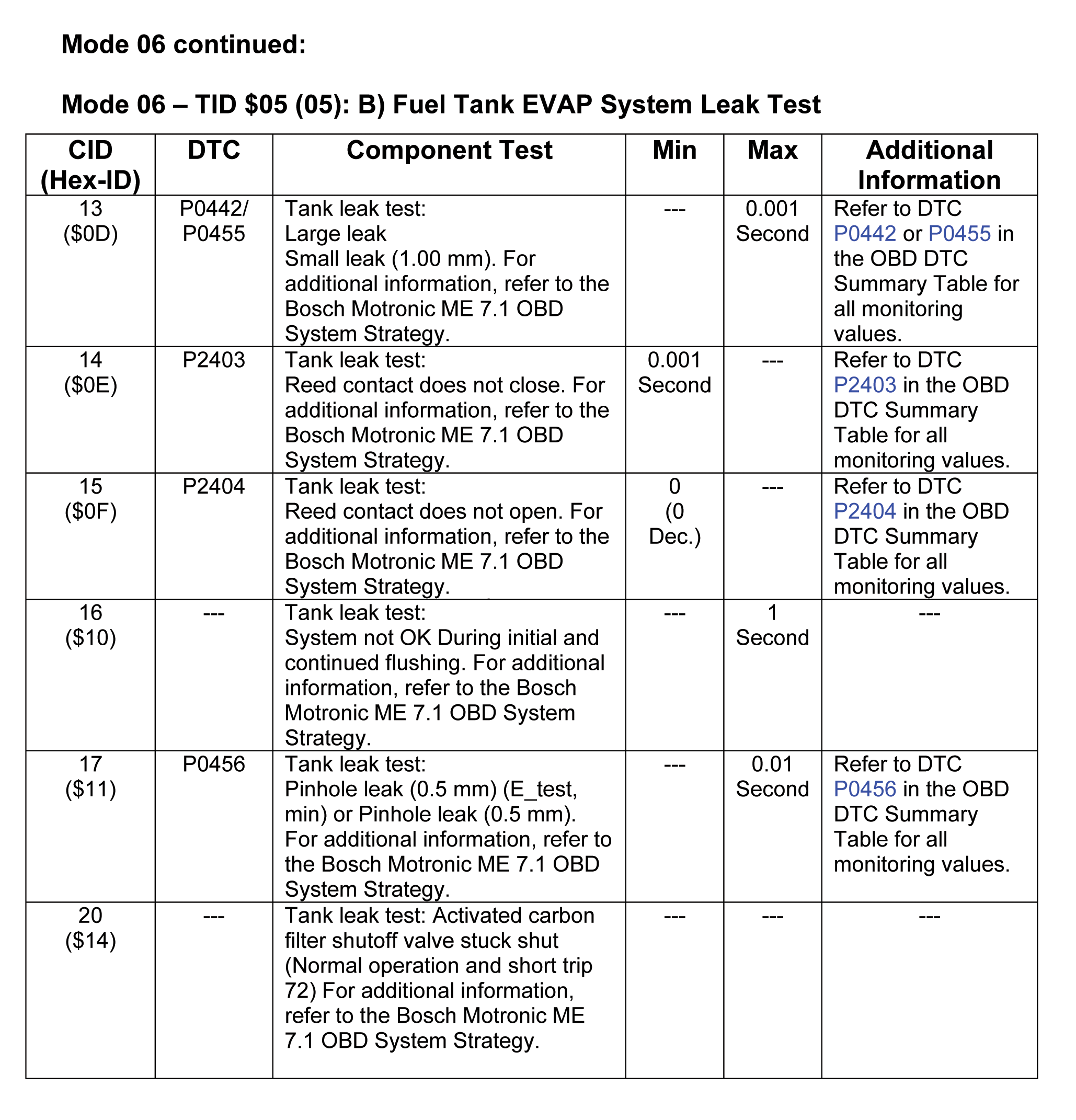

Fig 49: Mode 6 Data (2004-05 4.2L BFM) (10 Of 12)

G00105019

Courtesy of AUDI OF AMERICA, INC.

Fig 50: Mode 6 Data (2004-05 4.2L BFM) (11 Of 12)

G00105020

Courtesy of AUDI OF AMERICA, INC.

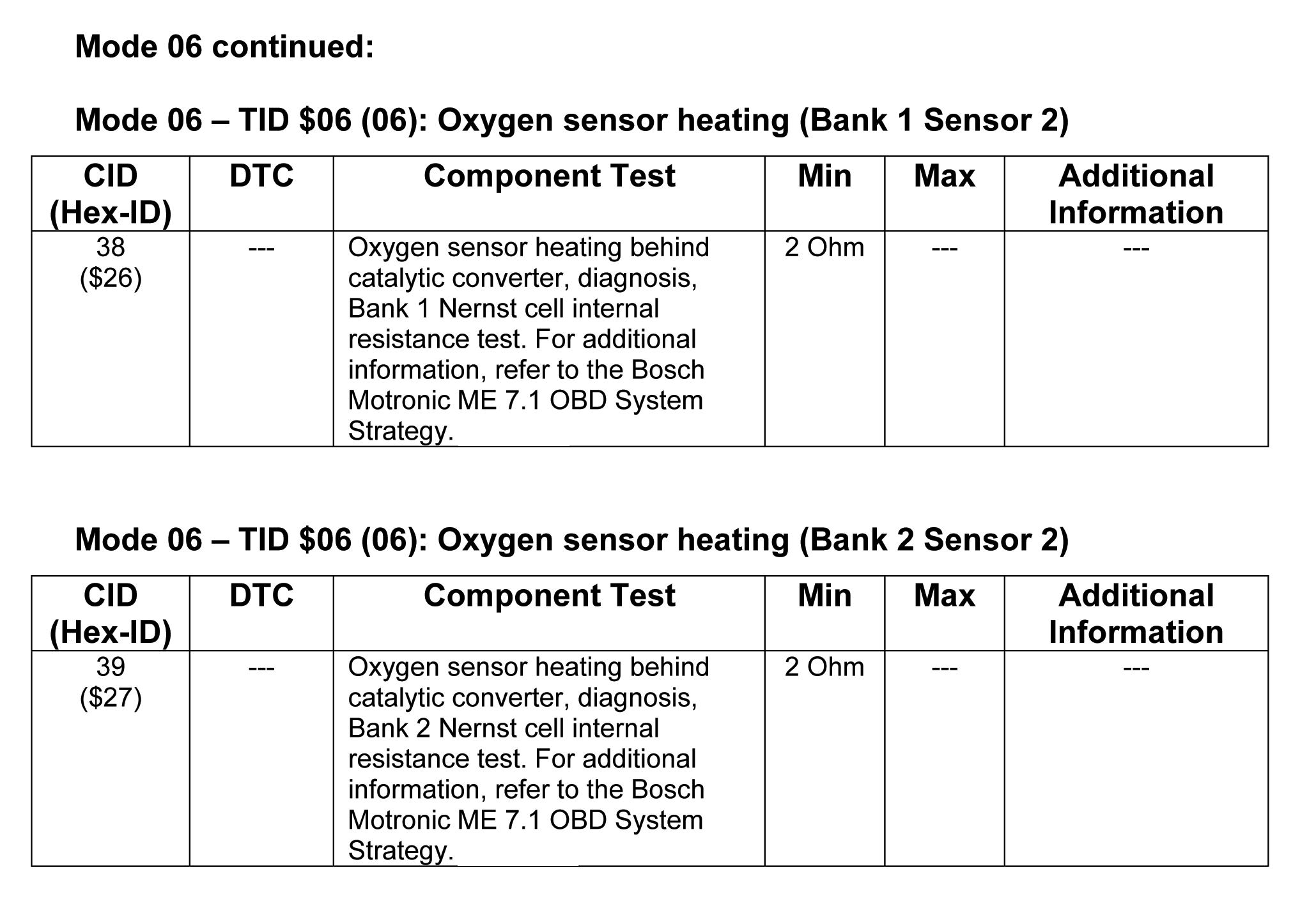

Fig 51: Mode 6 Data (2004-05 4.2L BFM) (12 Of 12)

G00105021

Courtesy of AUDI OF AMERICA, INC.
