Code Letters, Application, Transmission Ratios, Equipment

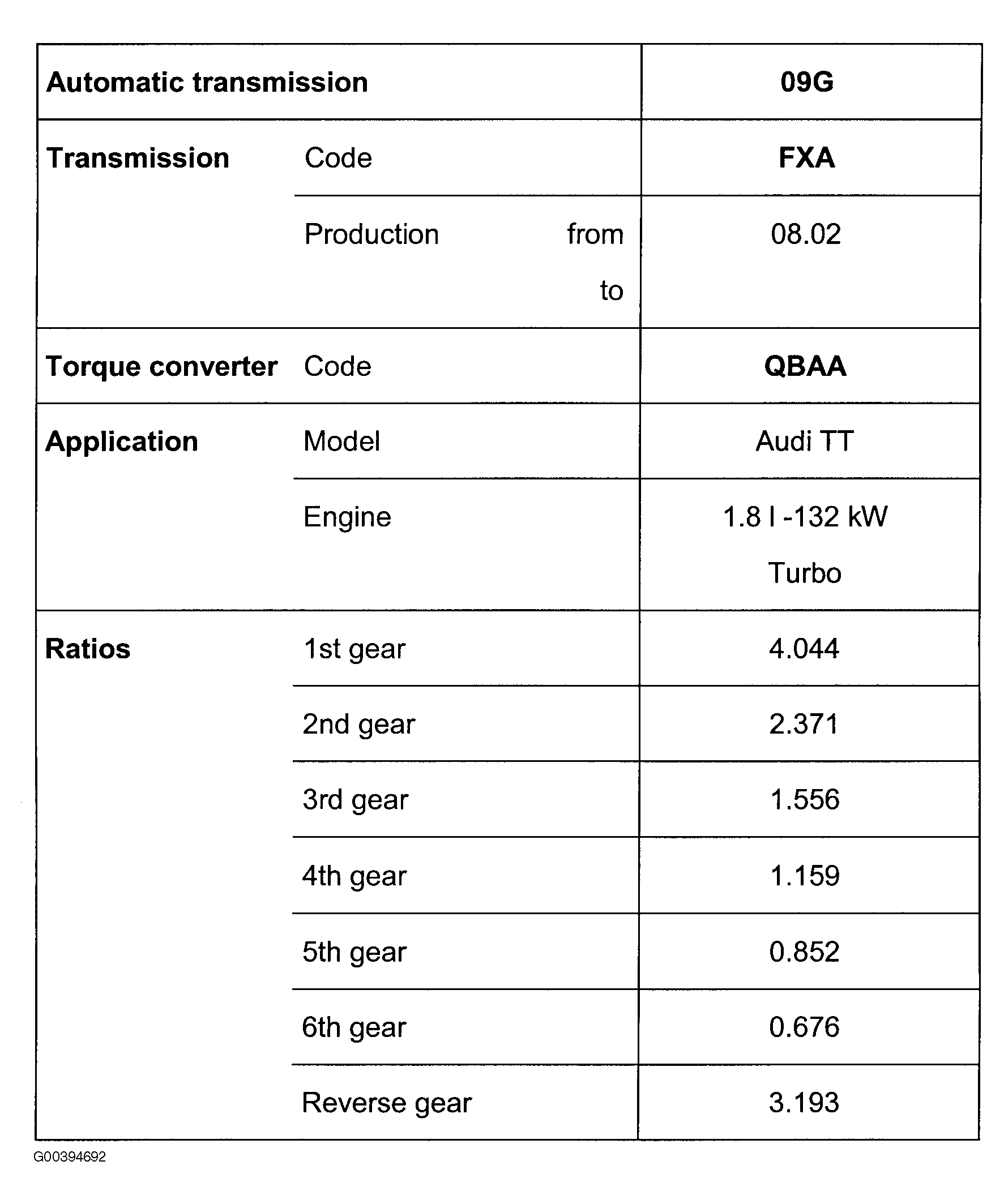

Fig 1: Identifying Code Letters, Applications & Gear Ratios (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

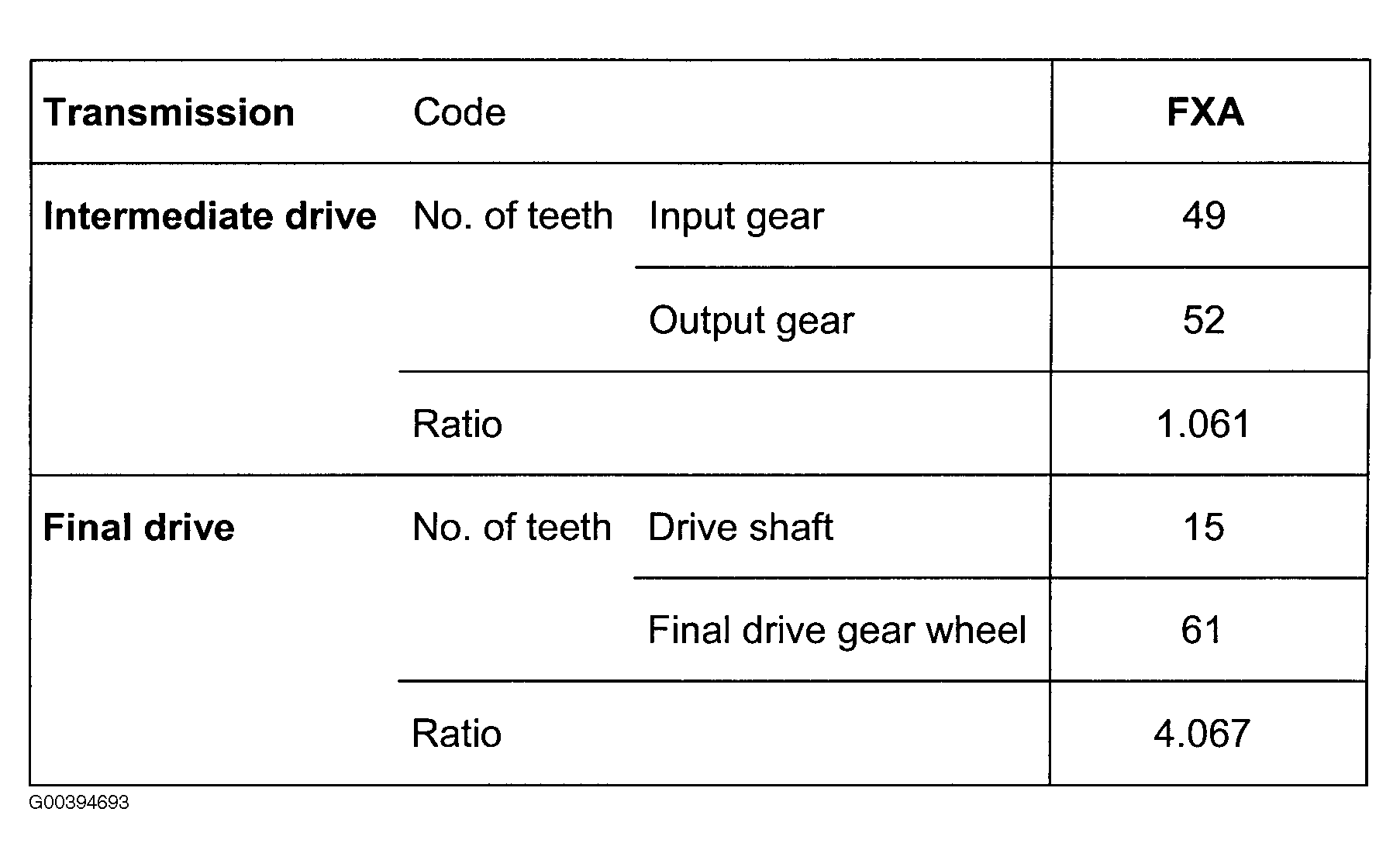

Fig 2: Identifying Code Letters, Applications & Gear Ratios (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.
