Encode control module

Have you just replaced a control module with traction control function (ASR), or is one of the following DTCs stored in the DTC memory of the control module?

"ABS/EDL/transmission - electrical connection"
"Control module incorrectly encoded"
"CAN-bus - No message from transmission control module"

The control module must be coded according to the type of engine and transmission.

NOTE:

The coding can only be performed if a workshop code is stored in V.A.G 1551.
See Operating instructions for V.A.G 1551.
The 5-digit coding will appear when the control module identification is displayed.

Connect Scan tool V.A.G 1551 and select "Brake electronics" with address word 03. See VAG1551 SCAN TOOL (ST), CONNECTING AND ENTERING ADDRESS WORD .
Check the control module version. See CHECK CONTROL MODULE VERSION and press the --> button.
Press --> button.

Indicated on display:

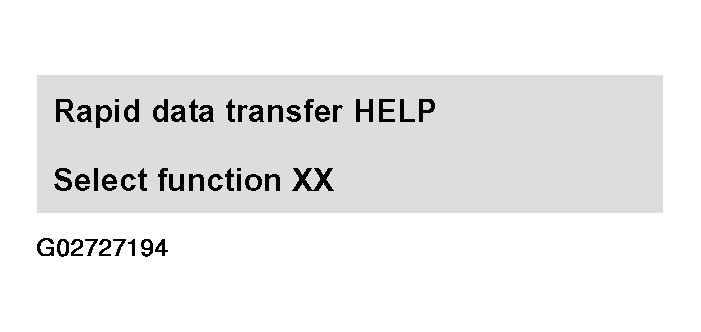

Fig 1: VAG 1551 Scan Tool Display - Encode Control Module, Bosch 5.3 (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -7- for "Coding control module" function.

Indicated on display:

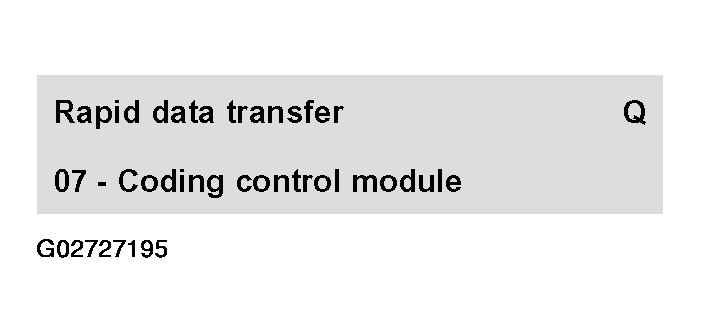

Fig 2: VAG 1551 Scan Tool Display - Encode Control Module, Bosch 5.3 (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Confirm input with -Q- button.

Indicated on display:

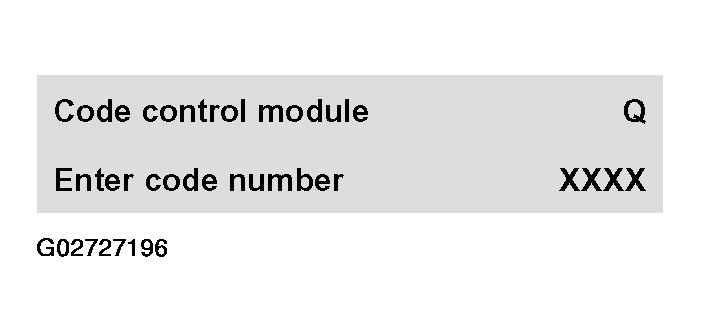

Fig 3: VAG 1551 Scan Tool Display - Encode Control Module, Bosch 5.3 (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Enter the required code number and confirm with -Q- button.

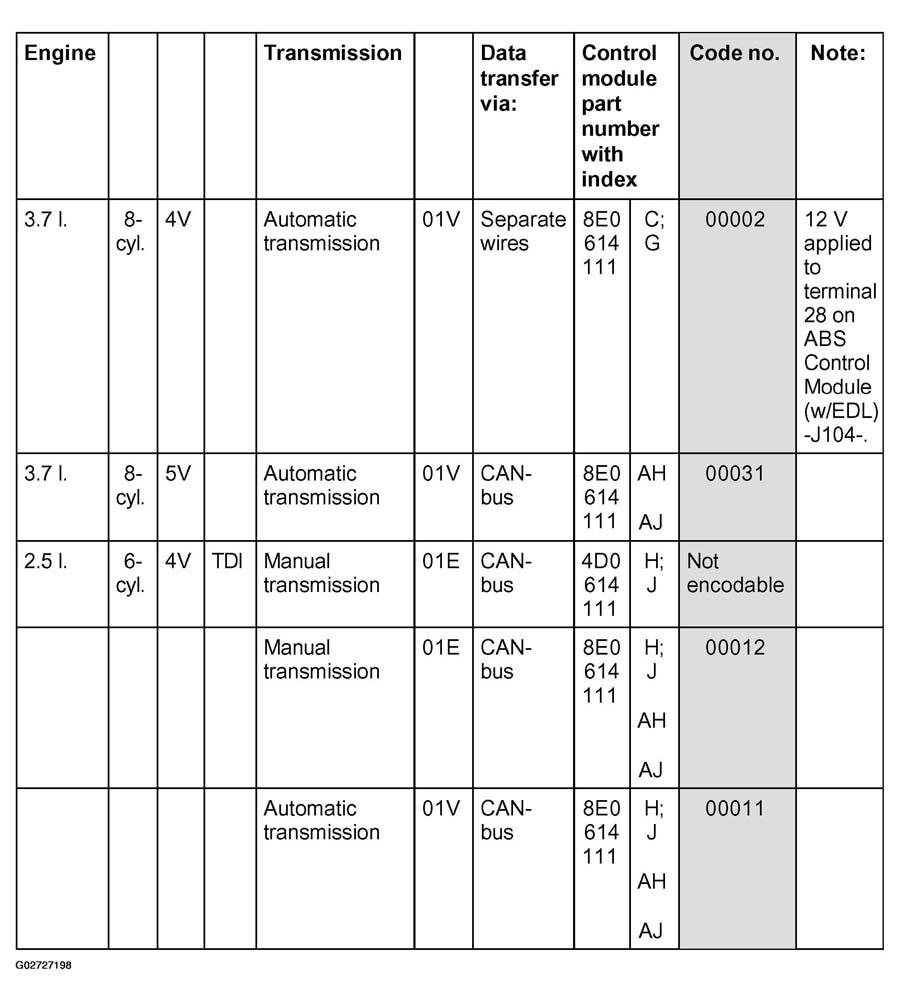

Fig 4: Control Module Coding Table - Bosch 5.3 (1 Of 2)
Courtesy of AUDI OF AMERICA, INC.

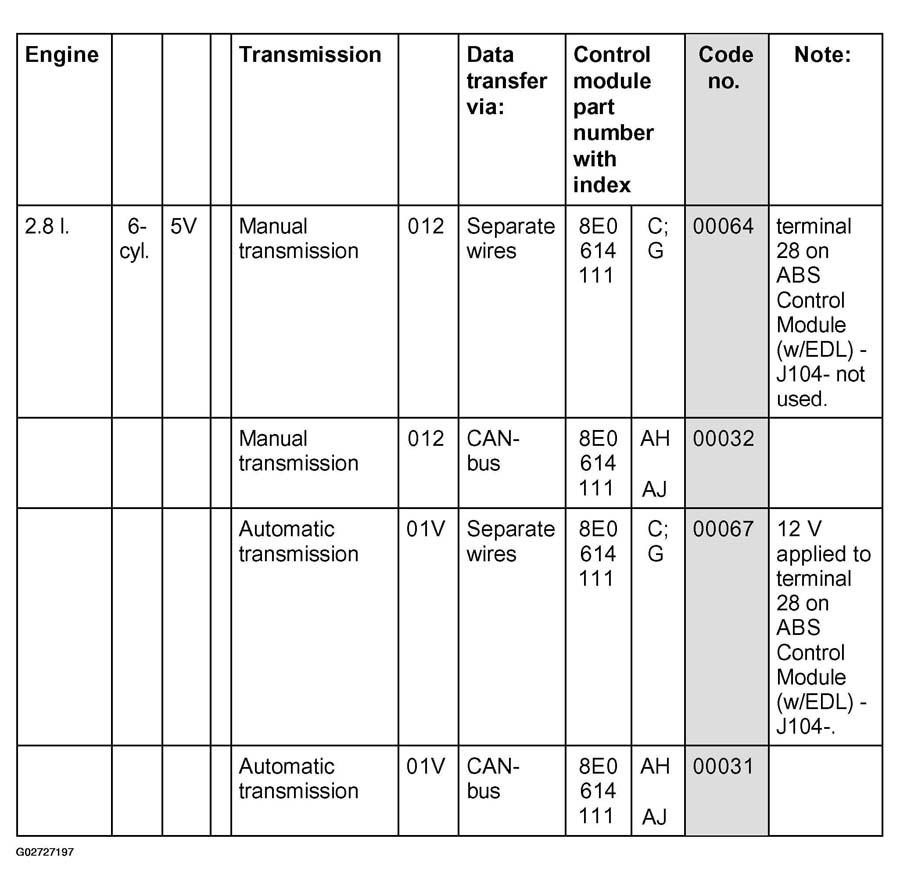

Fig 5: Control Module Coding Table - Bosch 5.3 (2 Of 2)
Courtesy of AUDI OF AMERICA, INC.

The display shows the control module identification and the code entered (For example, 00000).

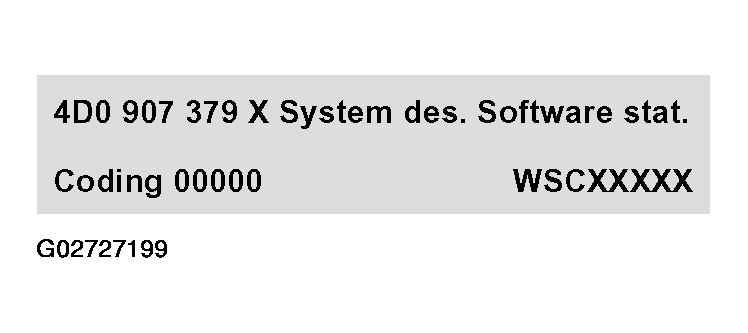

Fig 6: VAG 1551 Scan Tool Display - Encode Control Module (Sample Control Module Coding, Bosch 5.3)

Courtesy of AUDI OF AMERICA, INC.

Press --> button.

Indicated on display:

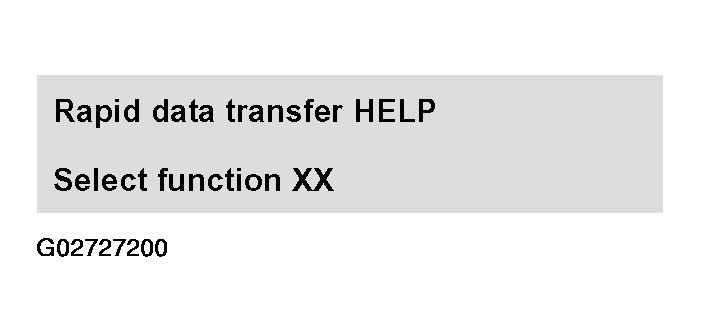

Fig 7: VAG 1551 Scan Tool Display - Select Function xx

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -6- for the "End output" function and press the -Q- button to confirm entry.
