Engine Controls - Self-Diagnostics - 2.7L Turbo
>>
Self-Diagnostic System
>>
Address Words & Diagnostic Functions
>>
Diagnostic Functions
Diagnostic Functions
For diagnostic functions and testing parameters, see
Fig 1
.

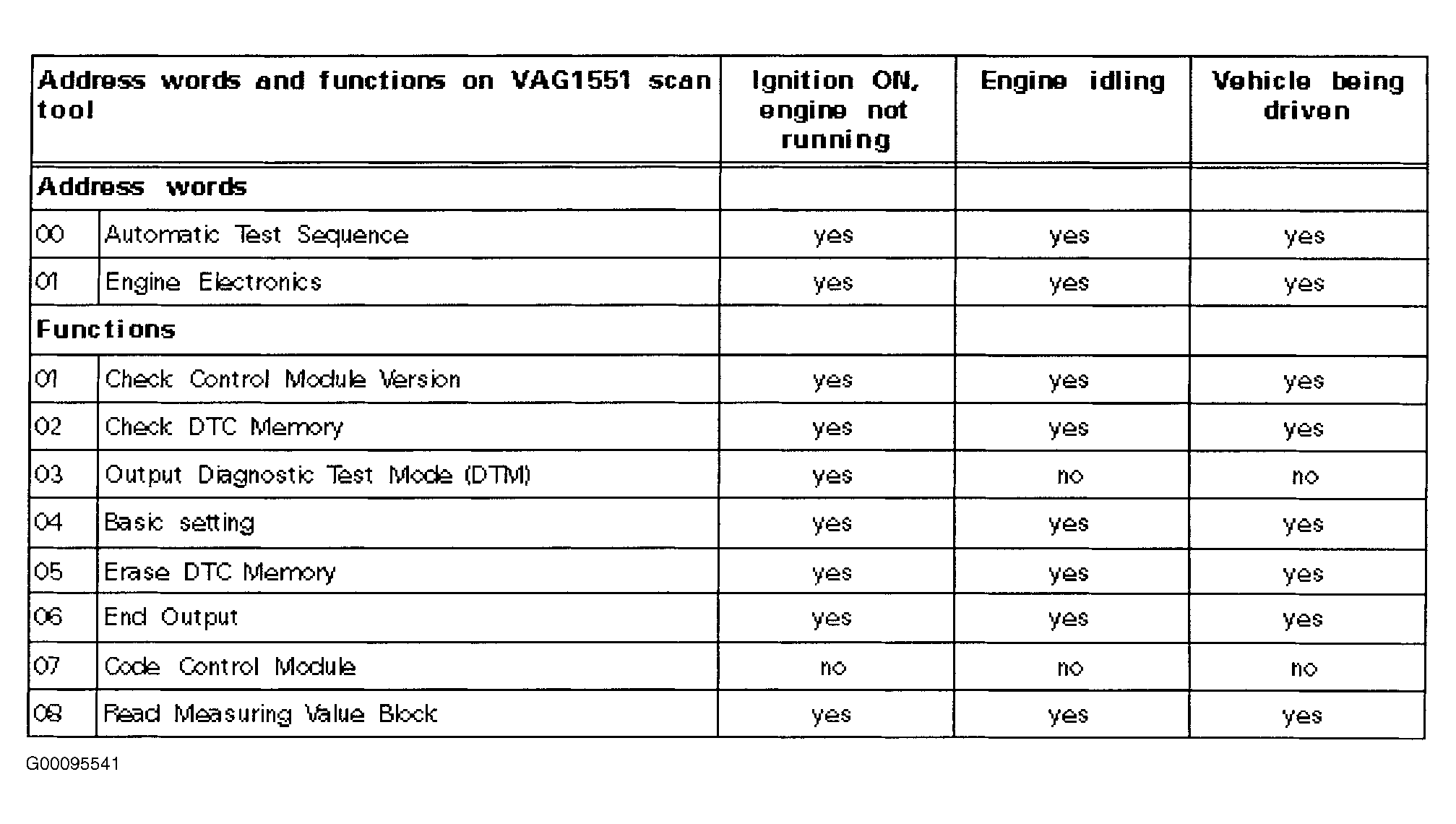

Fig 1: Identifying Scan Tool Functions
Courtesy of AUDI OF AMERICA, INC.
