| Camshaft Sprocket Bolt |
52 (71) |
| Catalytic Converter-To-Exhaust Manifold Bolt |
18 (24) |
| Camshaft Bearing Cap Nut |
11 (15) |
| Connecting Rod Bearing Cap Bolt |
| Vertical Bolt |
| Step 1 |
15 (20) |
| Step 2 |
|
| Horizontal Bolt |
18 (24) |
| Crankshaft Damper Bolt |
295 (400) |
| Crankshaft Main Bearing Cap Bolt |
| Step 1 |
44 (60) |
| Step 2 |
|
| Crankshaft Position Sensor |
96 (10) |
| Crankshaft Rear Oil Seal Housing Bolt |
96 (10) |

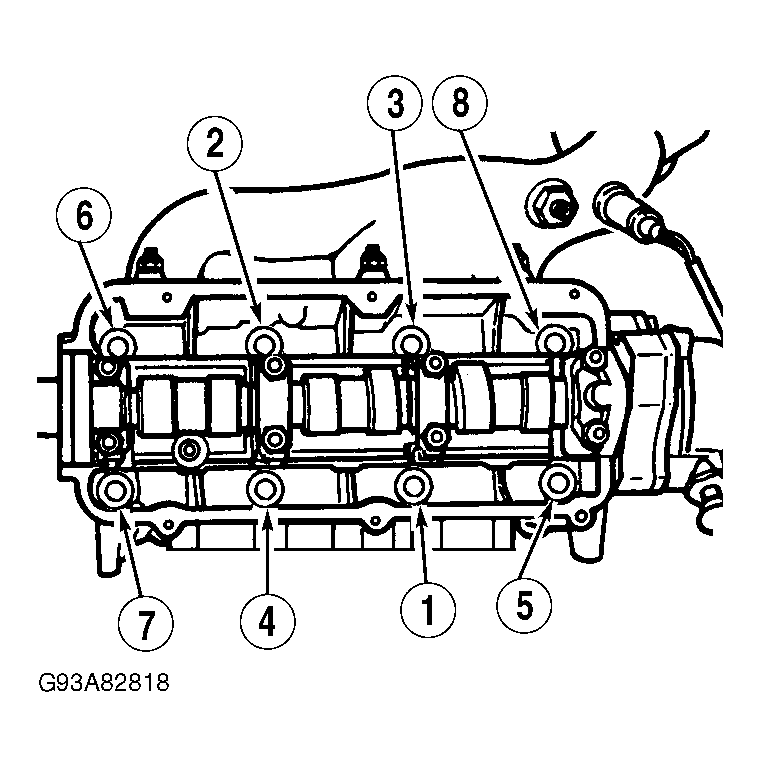

| Cylinder Head Bolt |
| Step 1 |
44 (60) |
| Step 2 |
|
| EGR Valve-To-Intake Manifold Bolts |
7 (10) |
| Engine Mount Bolt |
33 (45) |
| Engine-To-Transmission Bolt |
| M8 Bolt |
18 (24) |
| M10 Bolt |
33 (45) |
| Flexplate/Flywheel Bolt |
44 (60) |
| Idle Air Control Valve-To-Intake Manifold Nut |
7 (10) |
| Intake Manifold-To-Cylinder Head Bolts |
15 (20) |
| Oil Cooler Nut |
22 (30) |
| Oil Pan Bolt |
96 (10) |
| Oil Pump Bolt |
96 (10) |
| Pressure Relief Valve (Top Of Cyl. Head) |
| With 3 Raised Dots On Valve |
96 (10) |
| With No Raised Dots On Valve |
48 (5) |
| Throttle Body-To-Intake Manifold |
15 (20) |
| Timing Belt Tensioner Bolt |
33 (45) |
| Torque Converter-To-Drive Plate Bolt |
26 (35) |
| Valve Cover Bolt |
53-89 (6-10) |
| INCH Lbs. (N.m) |
| Idle Air Control Valve-To-Intake Manifold Bolts |
53 (6) |
