Automatic Shift Lock Solenoid
NOTE:
On models with automatic shift lock function, selector lever should not move out of Park position until brake pedal is pressed.
- Remove gear selector lever handle and console cover to access gear selector assembly. Place gear selector lever in "R" position.

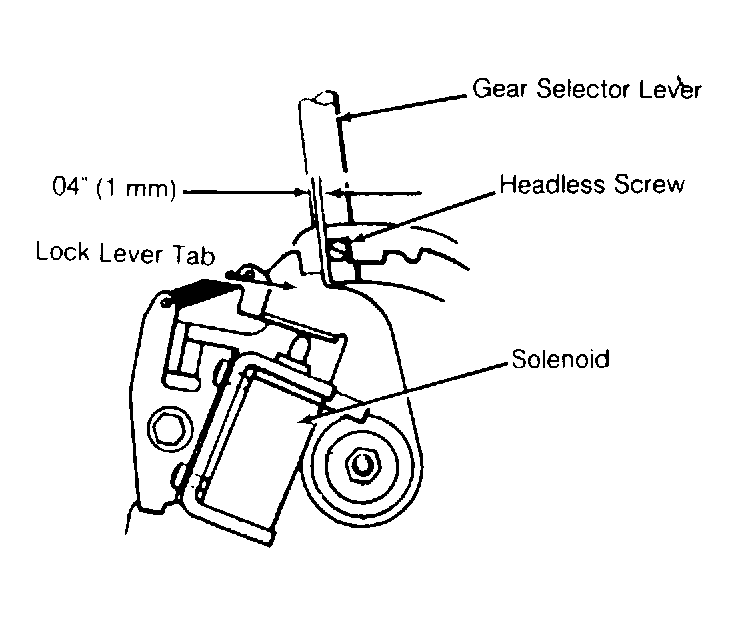

- Clearance between gear selector lever and solenoid switch valve should be .04" (1 mm). See Fig 1 . If clearance is not correct, loosen retaining screws and adjust to specification.
