Hydraulic System Bleeding

  1. Start engine and let it idle. Check that fluid is at proper level. Turn steering wheel lock-to-lock several times quickly. Do not force wheel against lock. Continue until fluid level remains at reservoir mark.
  2. Make sure that no bubbles appear in reservoir when steering wheel is turned. Shut off engine and check that fluid level does not rise more than 3/8" (9.5 mm) above mark.

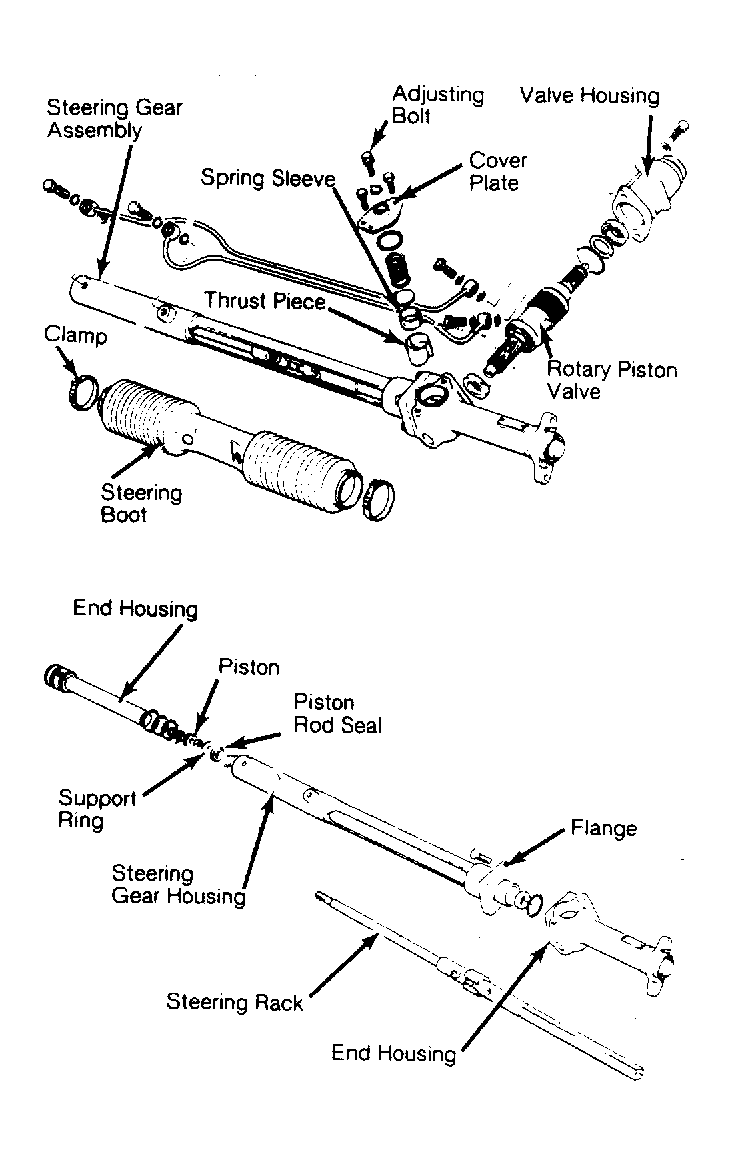

Fig 1: Exploded View of Steering Gear Assembly
G51295
