Inspection Outline

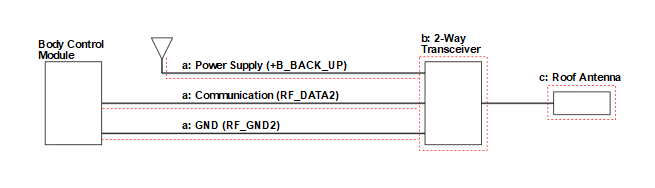

- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | External Circuit | +B_BACK_UP, RF_DATA2, RF_GND2 Circuit Inspection |
| b | 2-Way Transceiver | 2-Way Transceiver Inspection |
| c | Roof Antenna | Roof Antenna Inspection |
