Engine Control System - DTC Diagnostics (1 Of 6)
>>
DTC Troubleshooting
>>
DTC Troubleshooting: P0102(3.0L Engine)
>>
Inspection Outline
Inspection Outline

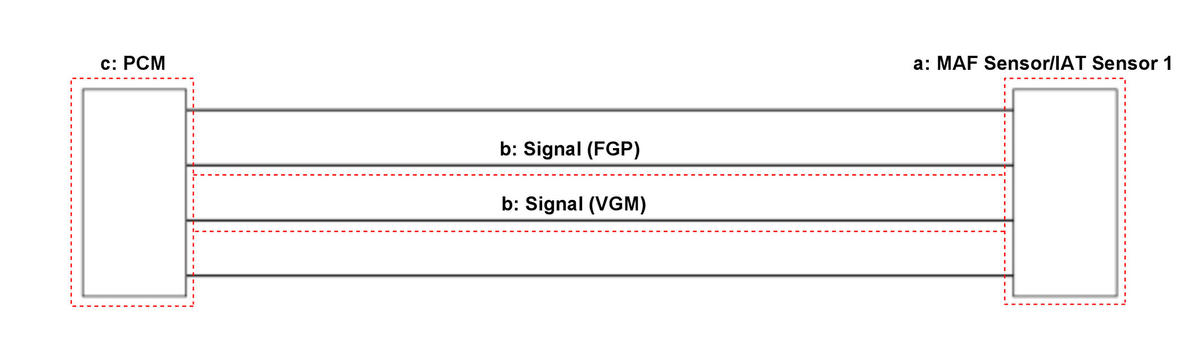

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
MAF Sensor/IAT Sensor 1
MAF Sensor Inspection
b
External Circuit
FGP, VGM Circuit Inspection
c
PCM
PCM Inspection
Courtesy of HONDA, U.S.A., INC.
