Inspection Outline

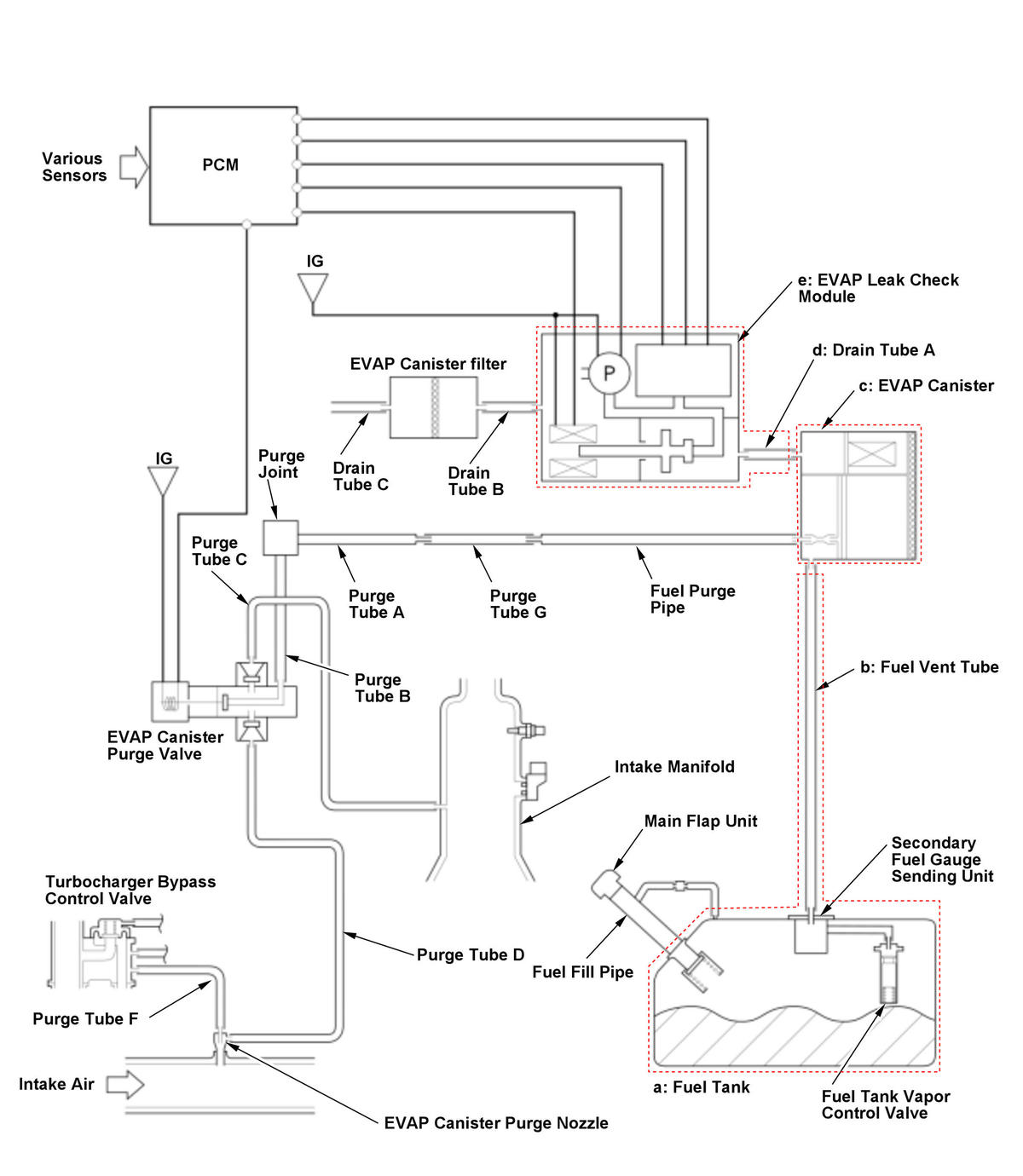

- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- EVAP Leak Check Module [PGM-FI]: DTC P043E, P043F, P2DD9, P2DDA
| Inspection Items | Work Items | |
|---|---|---|
| a | Fuel Tank | Fuel Tank Vapor Control Valve Inspection (Blockage) |
| b | Fuel Vent Tube | Fuel Vent Tube Inspection (Blockage) |
| c | EVAP Canister | EVAP Canister Inspection (Blockage) |
| d | Drain Tube A | Drain Tube A Visual Inspection (Blockage) |
| e | EVAP Leak Check Module | EVAP Leak Check Module Inspection |
