DTC Troubleshooting: P0038(3.0L Engine): Inspection

Secondary HO2S (Sensor 2) Component Inspection

Test Procedure

• Preparation
• • Secondary HO2S (Sensor 2) 4P connector: disconnected
• Procedure
• • Perform the inspection according to the following table.

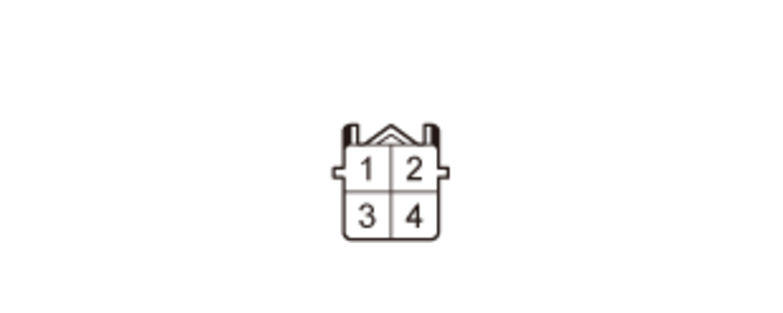

			(Disconnected)Secondary HO2S (Sensor 2) 4P connectorfemale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Sensor internal circuit inspection	OFF		About 5.0 - 6.2 Ohm(at room temperature)

Results

• If it is abnormal, there is a problem with the secondary HO2S (Sensor 2).

SO2HT Shorted Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • Secondary HO2S (Sensor 2) 4P connector: disconnected
  • PCM connector E (114P): disconnected
• Procedure
• • Perform the inspection according to the following table.

    Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.

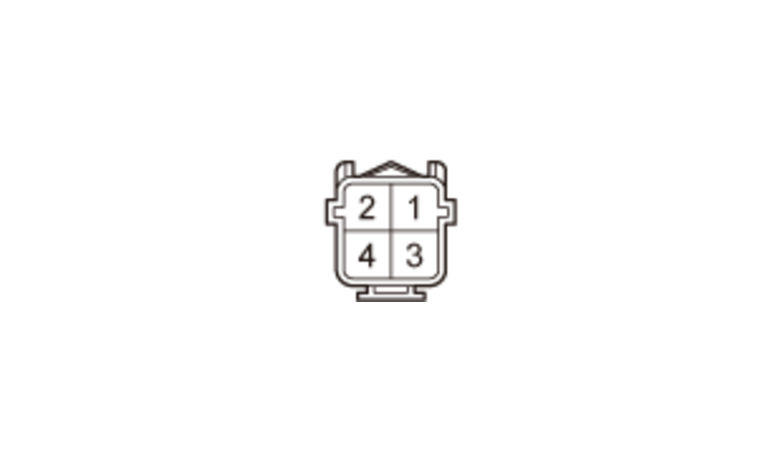

			(Disconnected)Secondary HO2S (Sensor 2) 4P connectormale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	SO2HT shorted to power inspection	ON		Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
