Alternator Inspection (2.0L Engine): Inspection

How to use this manual .

1. Brush - Inspect

   Preconditions

   • Brush Holder Removed - Refer to: Alternator Components (3.0L Engine) or Alternator Components (2.0L Engine)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

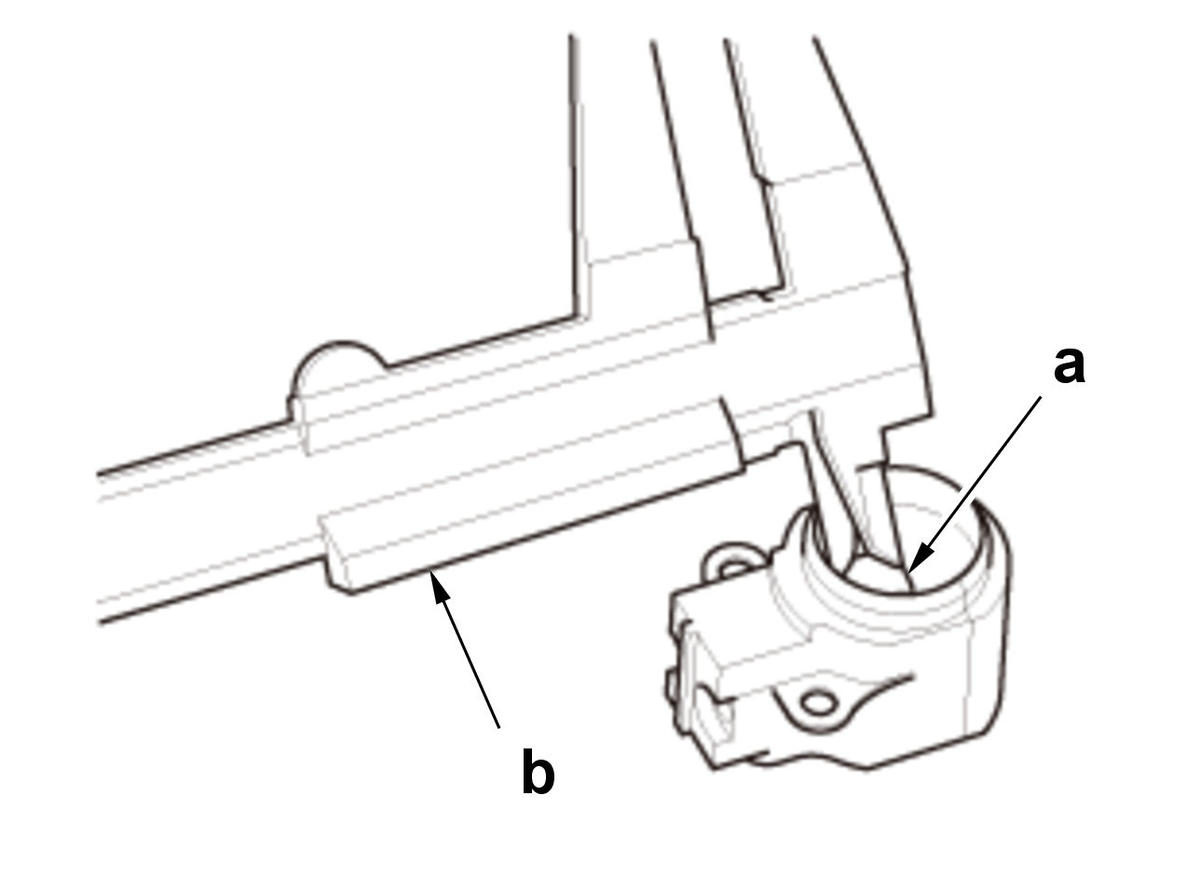

   • Measure the length of both brushes (a). (Figure 1)

   Tool Details (Figure 1)

   Name
   b	Vernier Caliper

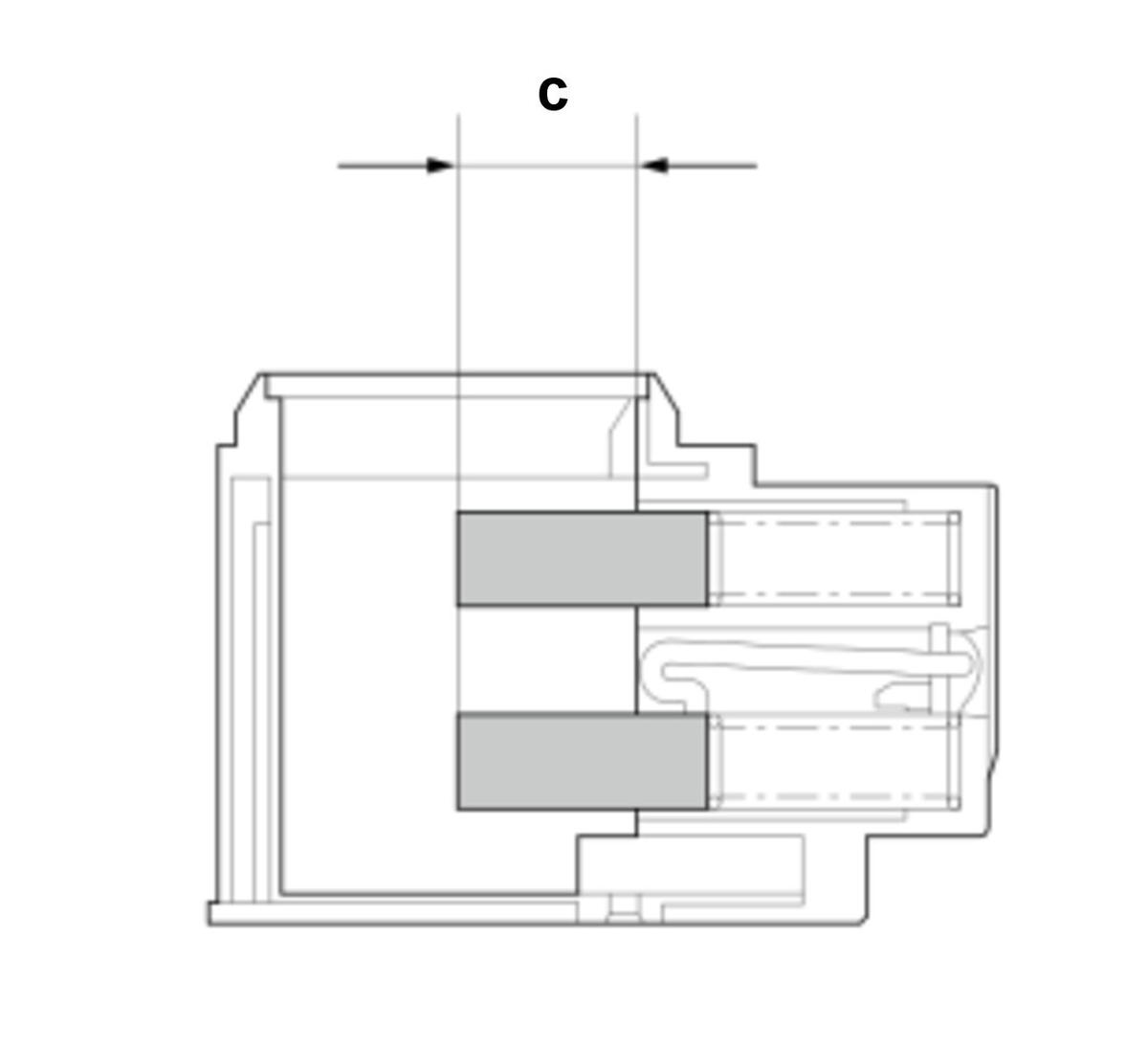

   Specifications (Figure 2)

   	Standard Value (New)	Service Limit
   c	10.5 mm (0.413 in)	1.5 mm (0.059 in)

   Result

   • If the measurement is not within specifications, replace the brush holder.
2. Rotor - Test

   Preconditions

   • Rotor Removed - Refer to: Alternator Components(3.0L Engine) or Alternator Components(2.0L Engine)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

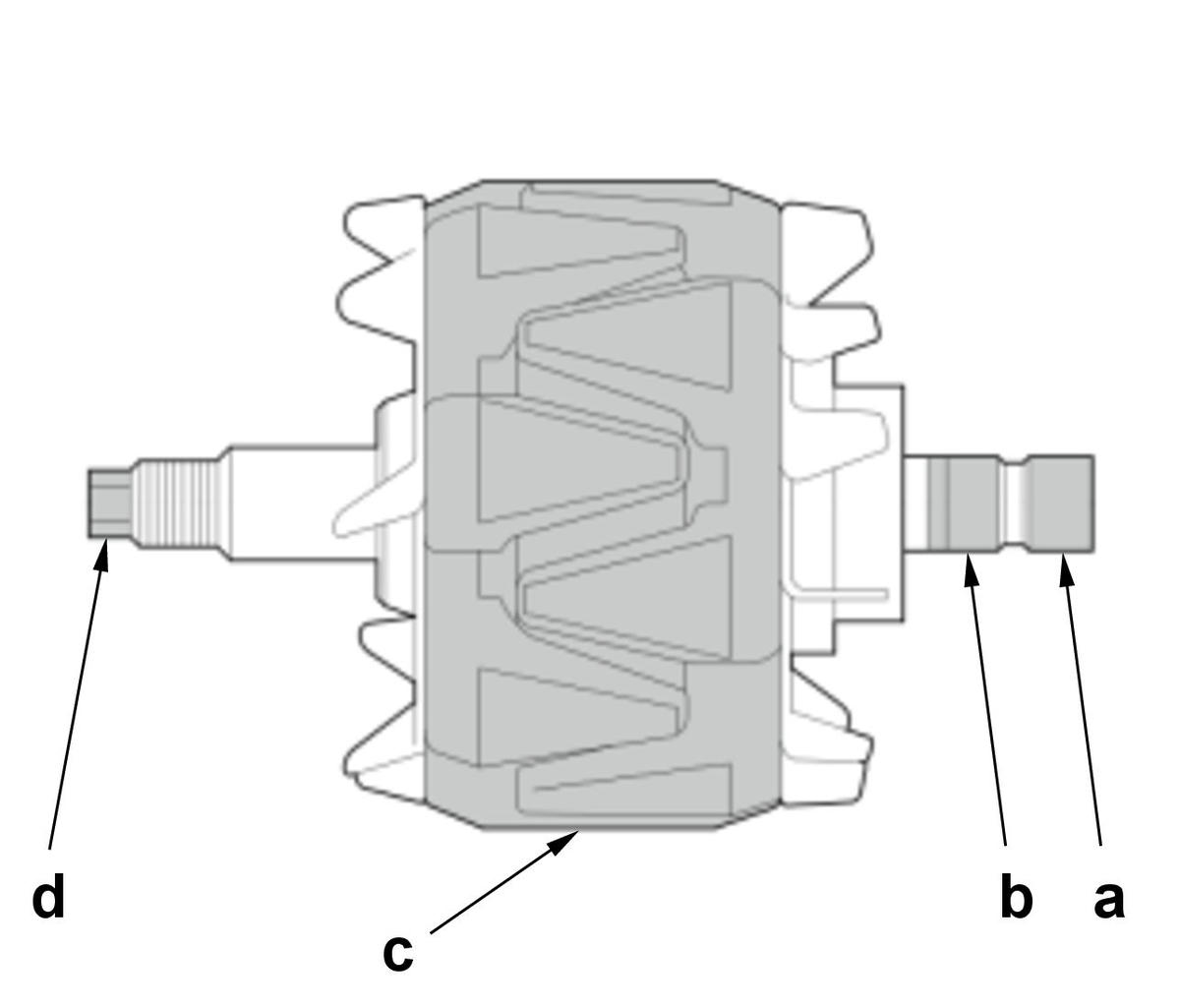

   • Check for continuity between each slip ring (a, b), the rotor (c), and the rotor shaft (d).

   Specifications

   Position	Specification
   a - b	Continuity
   a - c	No continuity
   a - d	No continuity
   b - c	No continuity
   b - d	No continuity

   Result

   • If it is abnormal, replace the rotor.
