Power Windows Circuit Diagram

NOTE: For details of the CAN circuit, refer to the Network Communications Circuit Diagram.

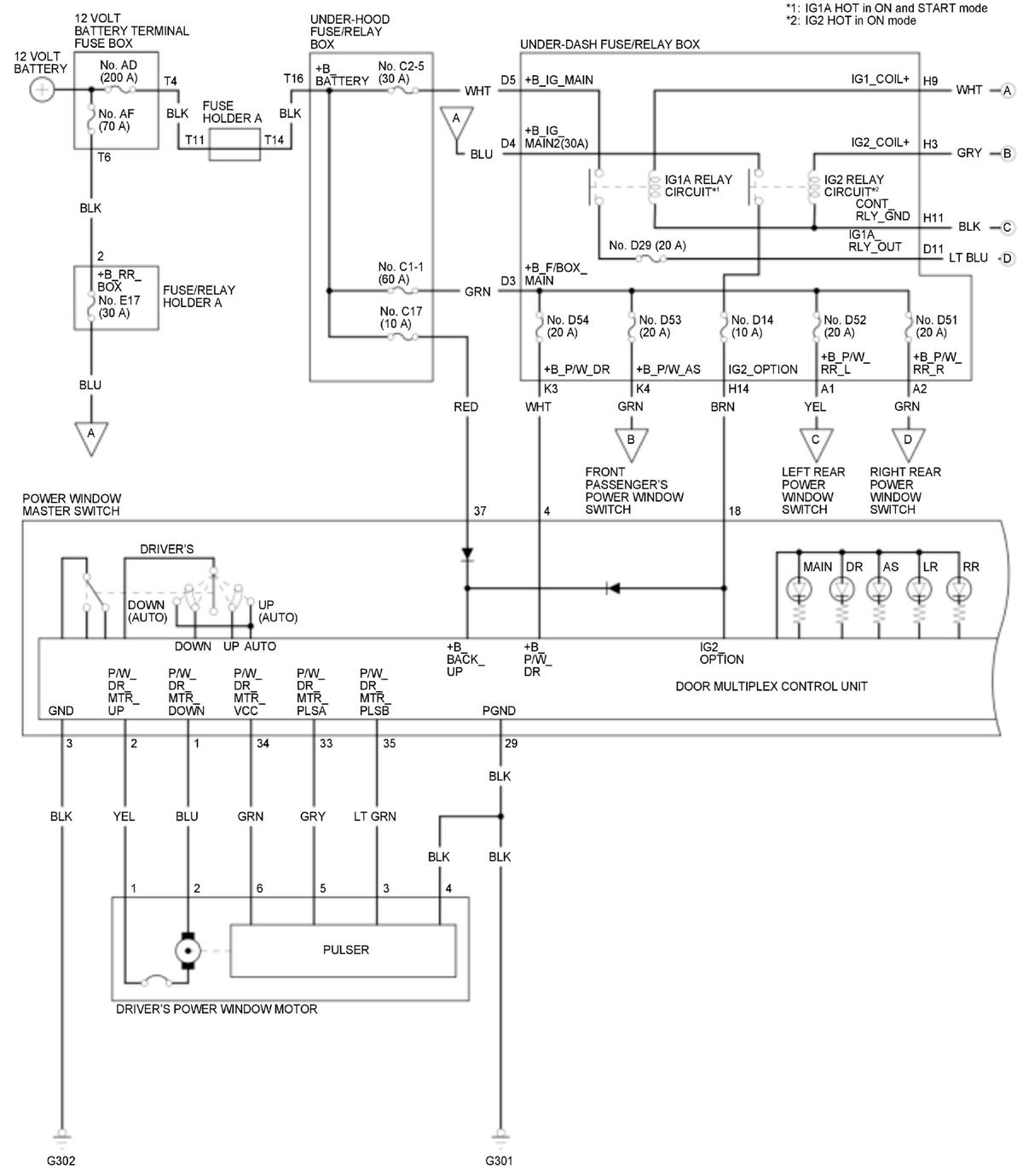

GHH489112Courtesy of HONDA, U.S.A., INC.

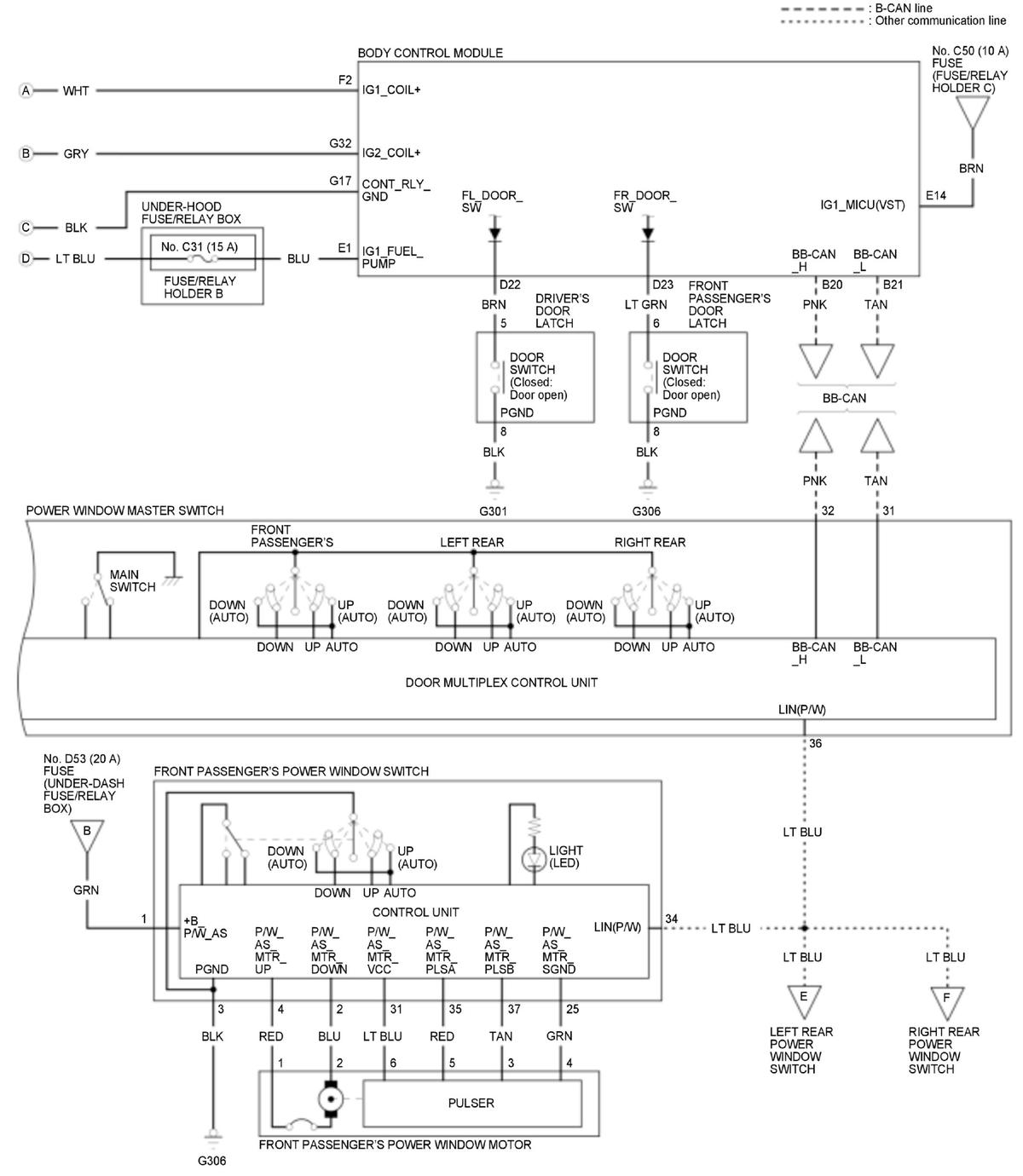

GHH489113Courtesy of HONDA, U.S.A., INC.

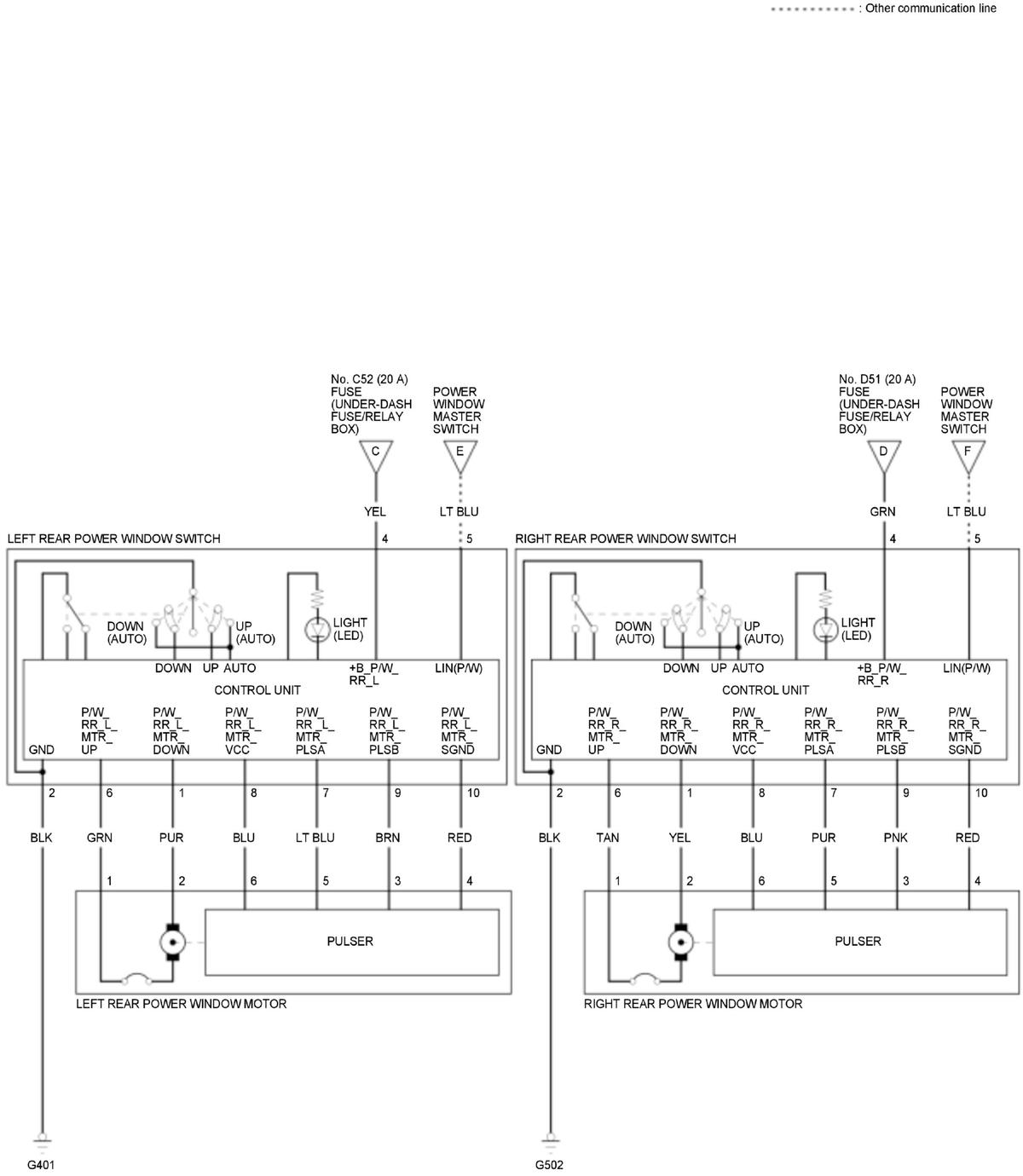

GHH489114Courtesy of HONDA, U.S.A., INC.
