Repair Procedure: Procedure

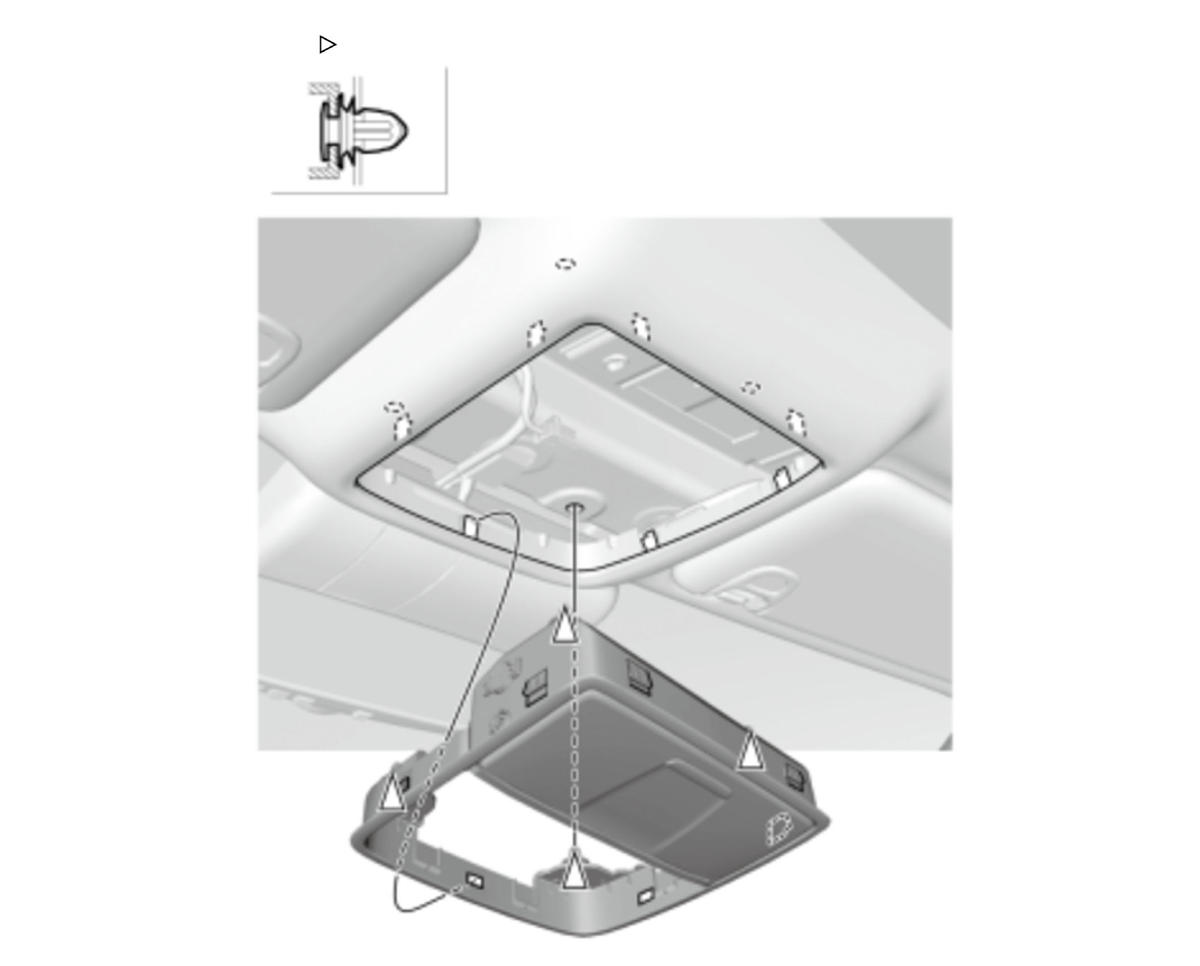

A.
■ Sub-Procedure

• Removal

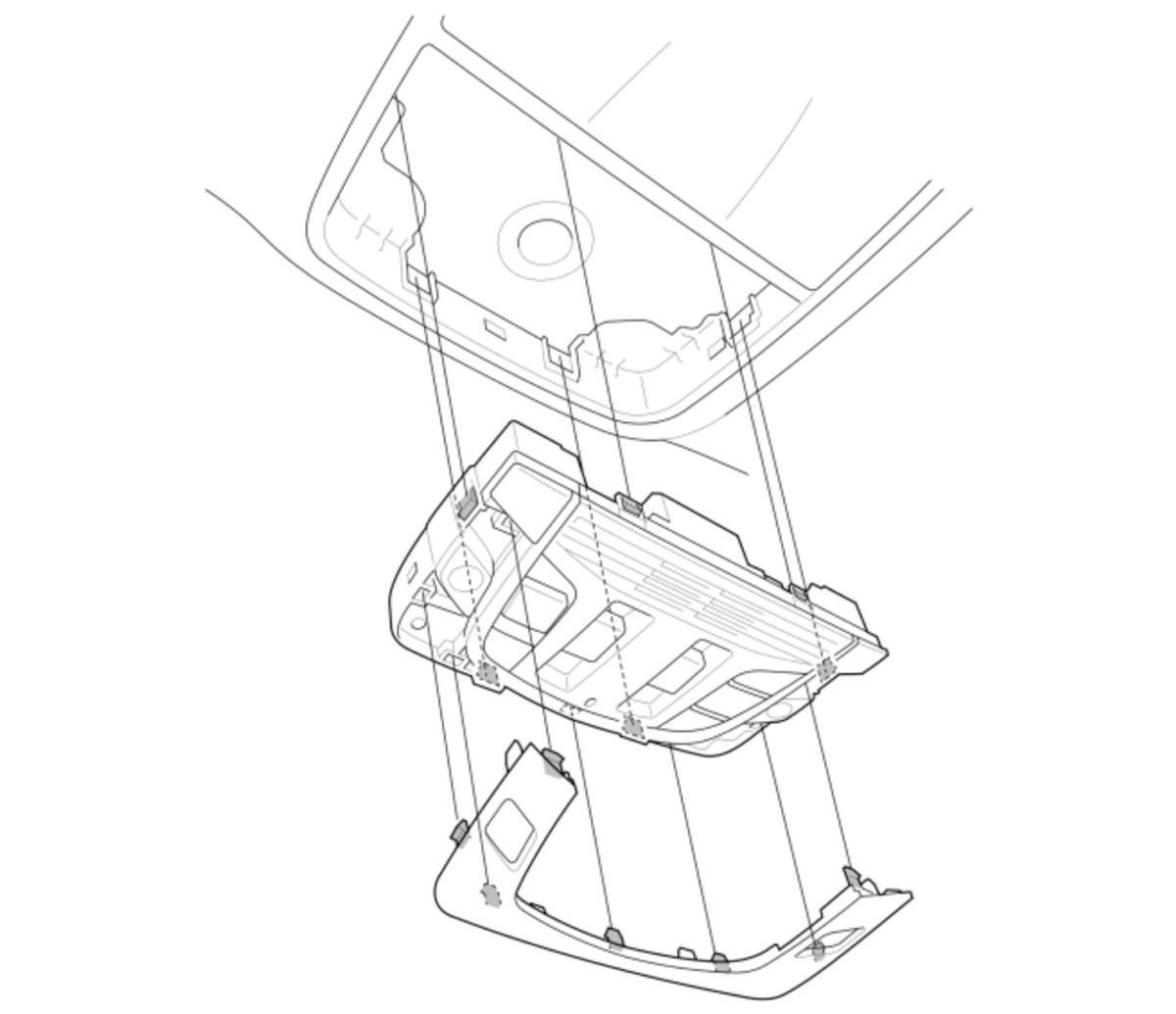

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
B.

Courtesy of HONDA, U.S.A., INC.
C.

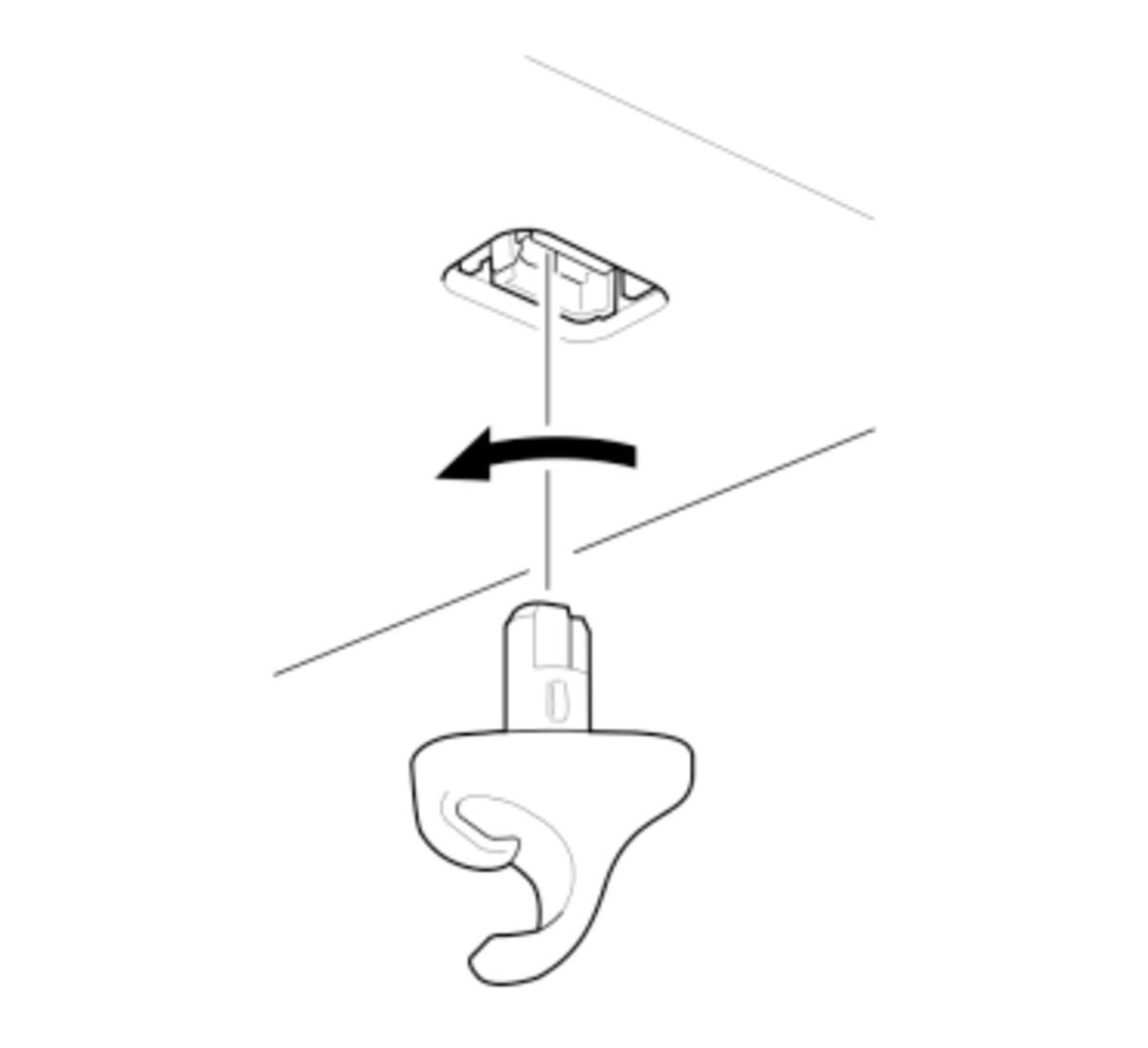

■ Sub-Procedure

• Removal

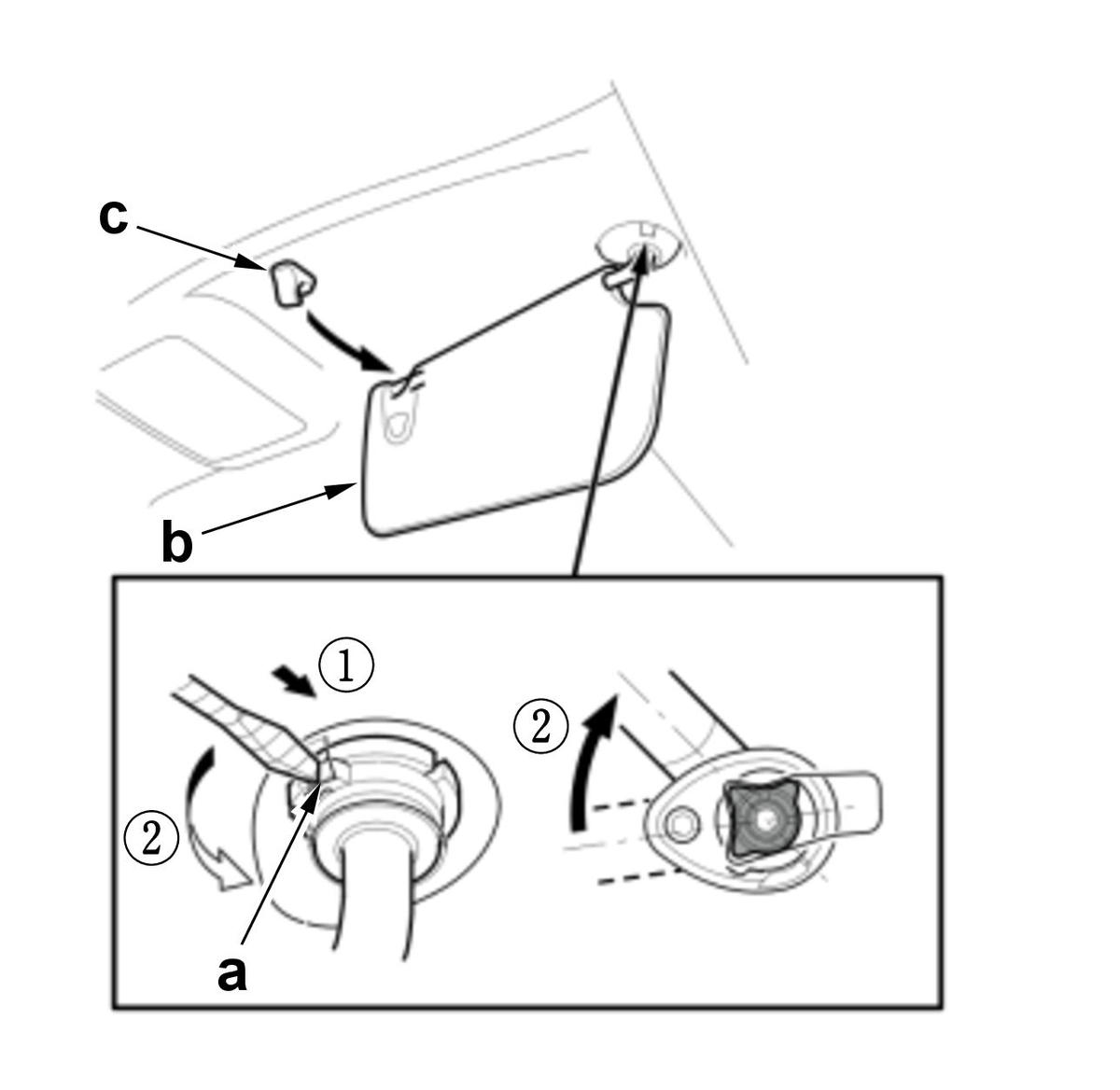

1. While pushing in the hook (a) with a flat-tip screwdriver, release the sunvisor (b) from the holder (c), and rotate the sunvisor backward 45°

NOTE: Make sure the hook slides into the bracket cover as you rotate the sunvisor.

Courtesy of HONDA, U.S.A., INC.
D.
■ Sub-Procedure

• Removal

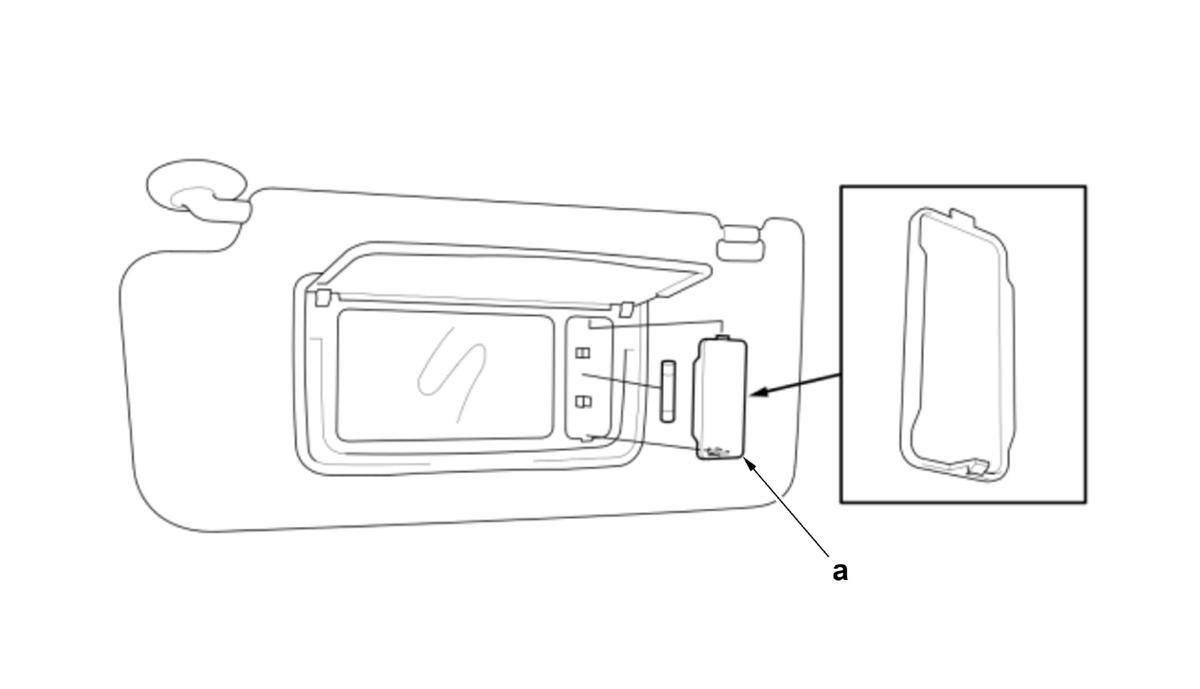

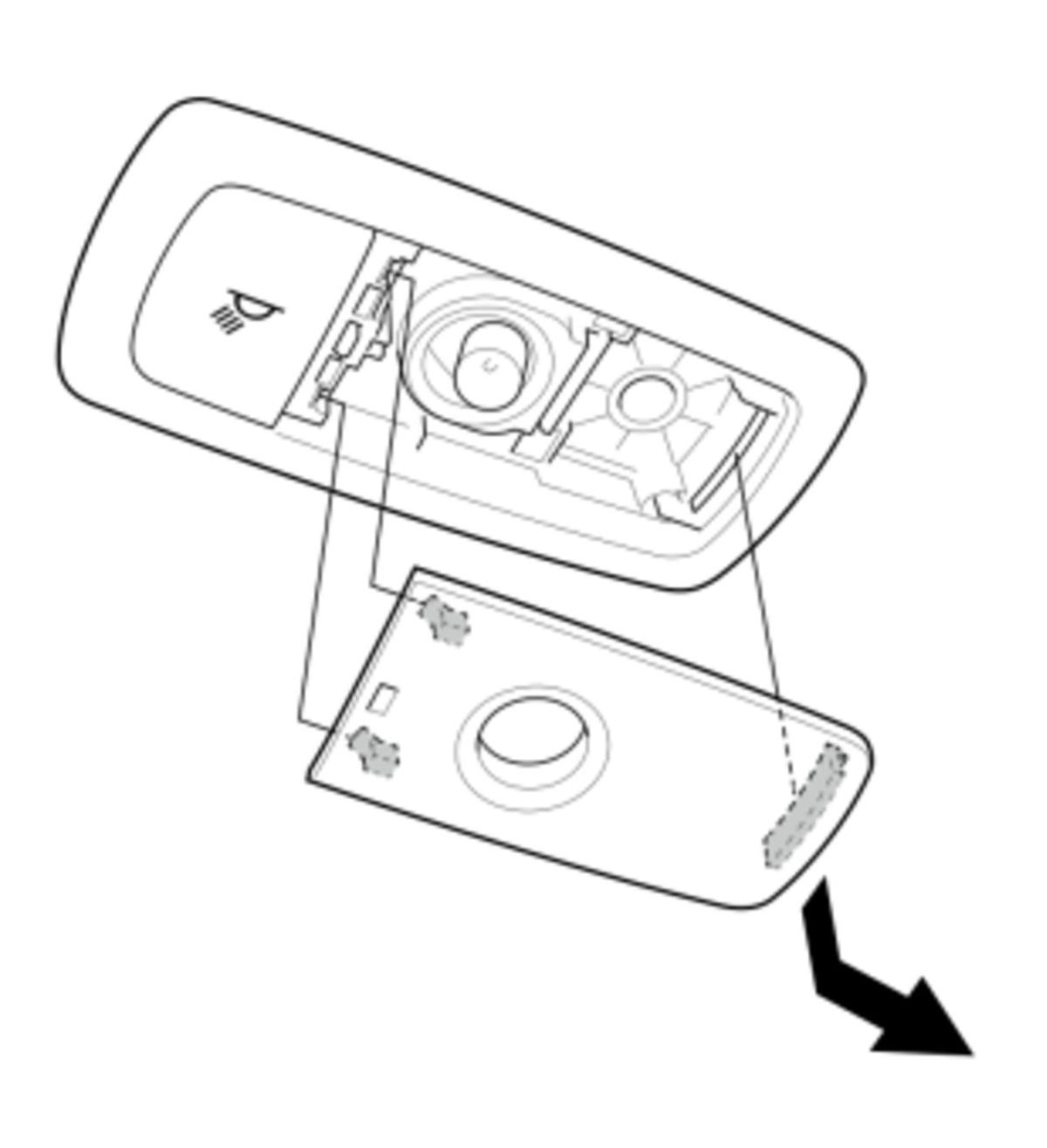

1. Carefully pry off the lens (a).

Courtesy of HONDA, U.S.A., INC.
E.
■ Sub-Procedure

Figure 1

Courtesy of HONDA, U.S.A., INC.

• Removal

1. Refer to the figure 1.

Figure 2

Courtesy of HONDA, U.S.A., INC.

2. Refer to the figure 2.
F.
■ Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

• Removal

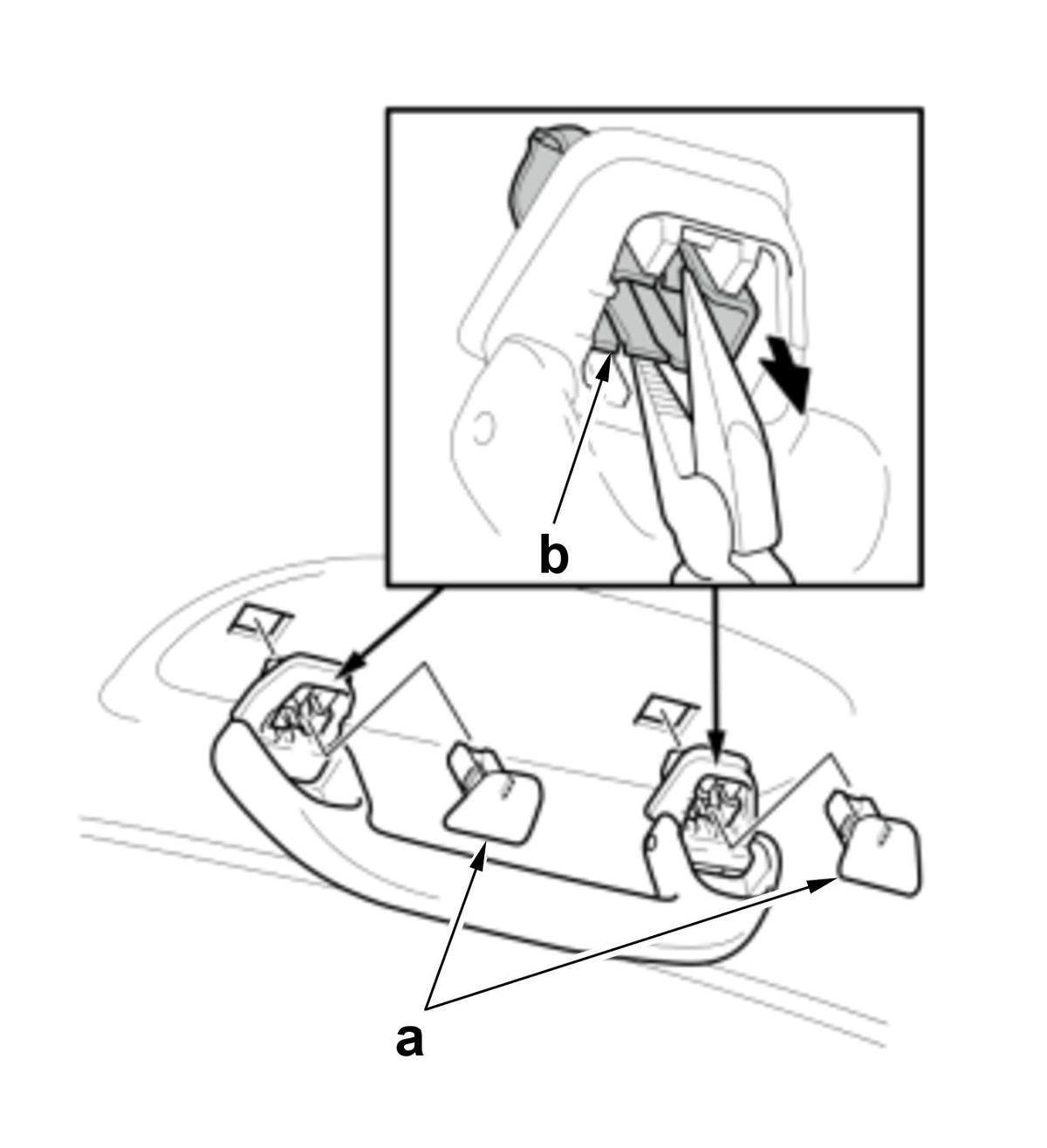

1. Remove the caps (a).

2. Squeeze the clips (b) with pliers, then remove the grab handle.
G.

Courtesy of HONDA, U.S.A., INC.

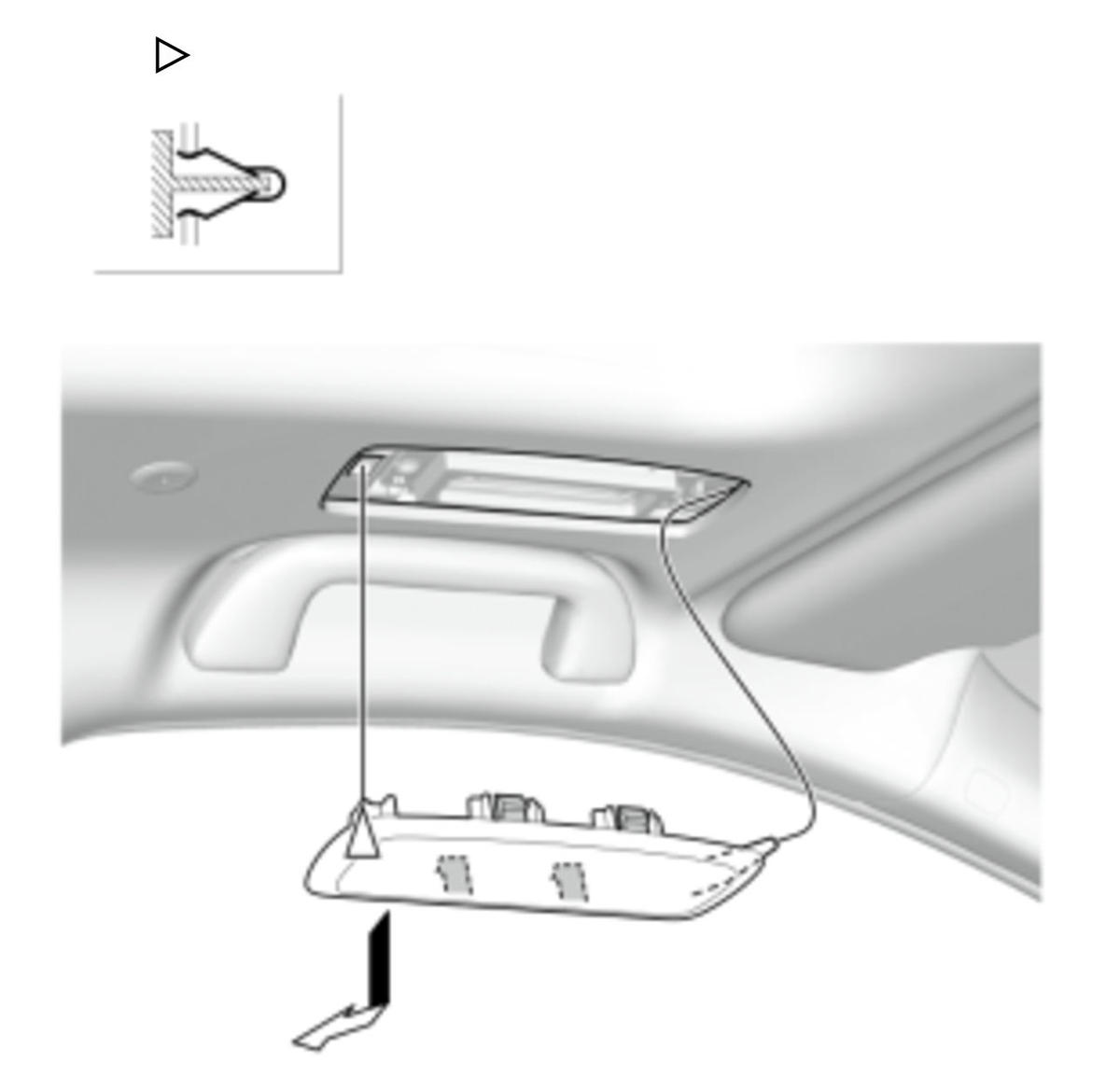

H.

Courtesy of HONDA, U.S.A., INC.

■ Sub-Procedure

• Removal

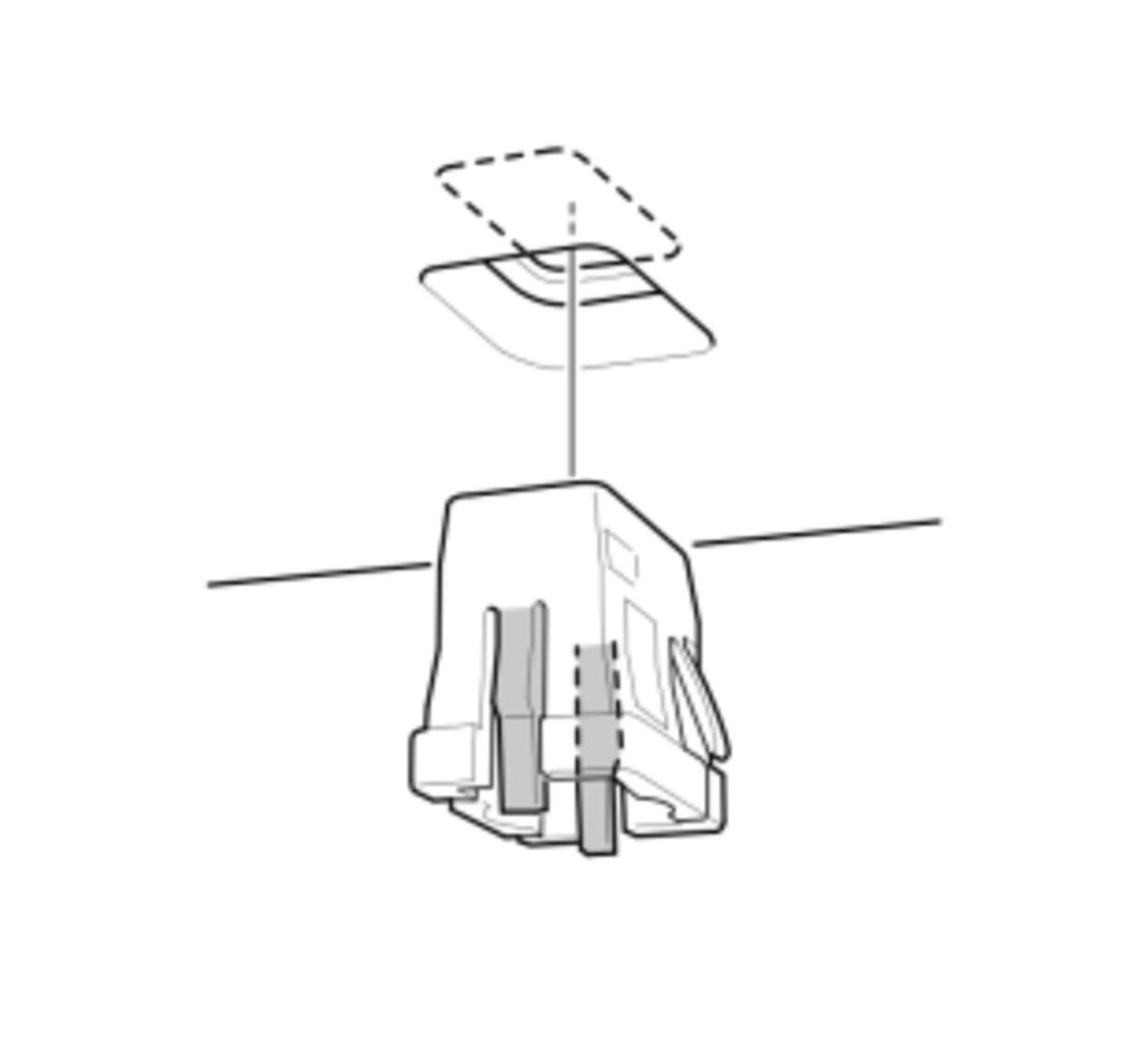

- Refer to the figure.

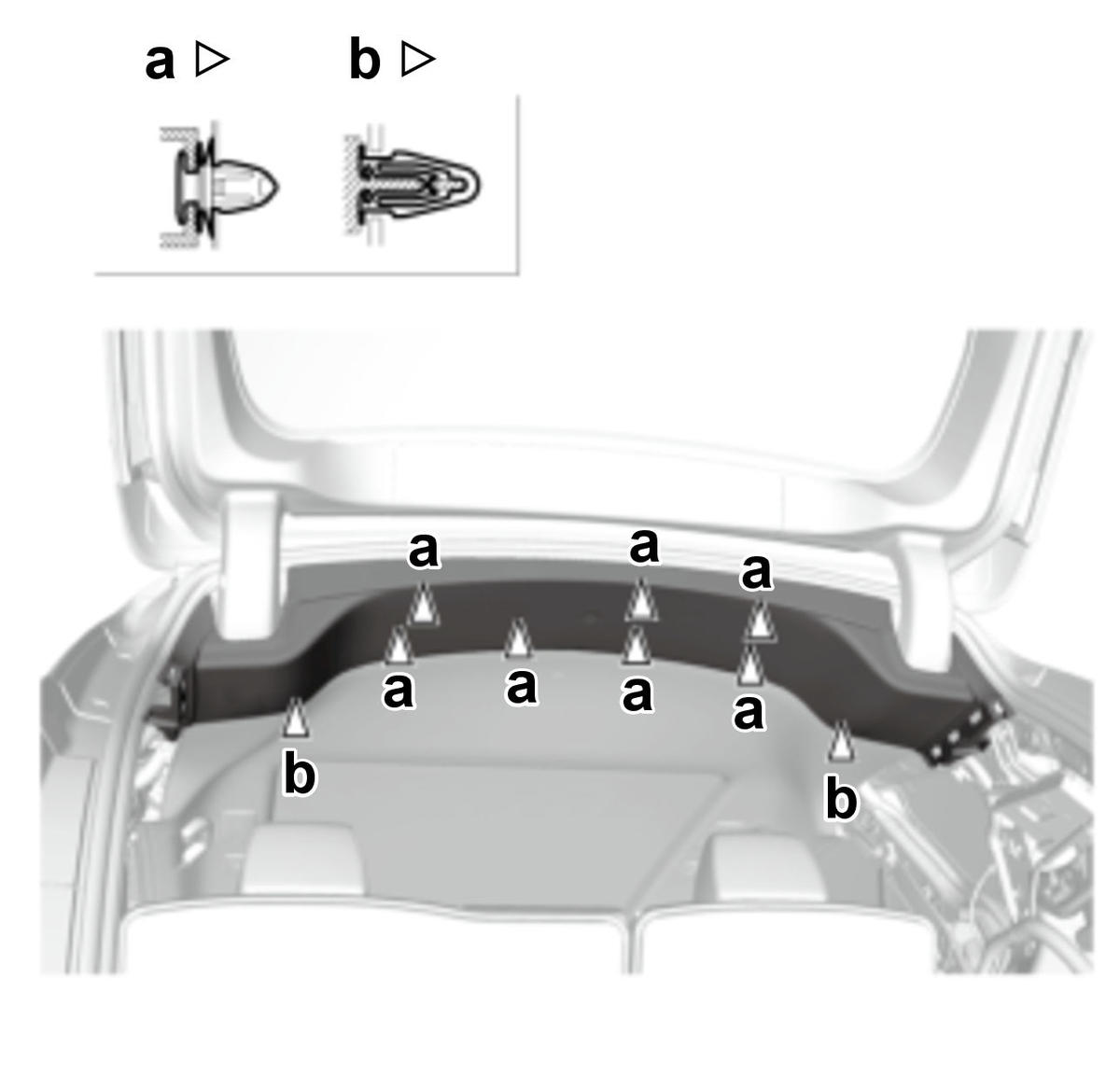

I.

Courtesy of HONDA, U.S.A., INC.

■ Key Information

Do the following before starting your work.

Remove:
- Quarter Pillar Trim
■ Sub-Procedure

• Removal
- Refer to the figure.
J.
NOTE:
- Do not bend the headliner. Bending the headliner will crease and damage it.
■ Key Information

Do the following before starting your work.

Remove:
- Camera Cover
- Interior Trim Area
  - A-Pillar Trim
  - B-Pillar Upper Trim
  - Quarter Pillar Trim
  - Front Door Opening Seal (as needed)
  - Rear Door Opening Seal (as needed)
  - Rear Side Trim Panel Bracket
■ Sub-Procedure

• Removal

1. Raise the vehicle .

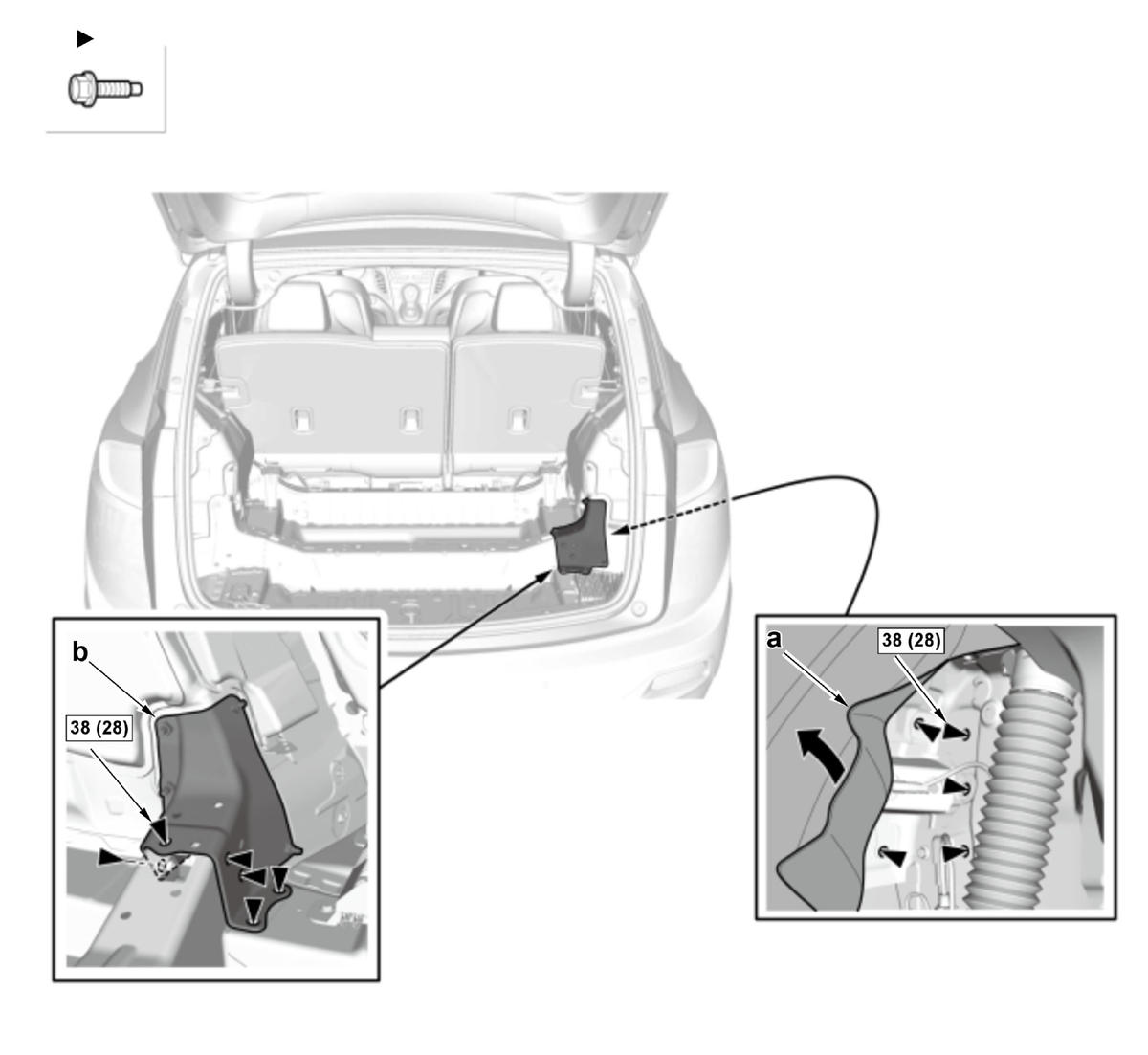

Figure 1

Courtesy of HONDA, U.S.A., INC.

2. Turn over the rear inner fender (a) as needed. (Figure 1)

3. Remove the right rear damper gusset (b). (Figure 1)

NOTE:
The right rear damper gusset gets in the way when pulling the headliner out of the vehicle.

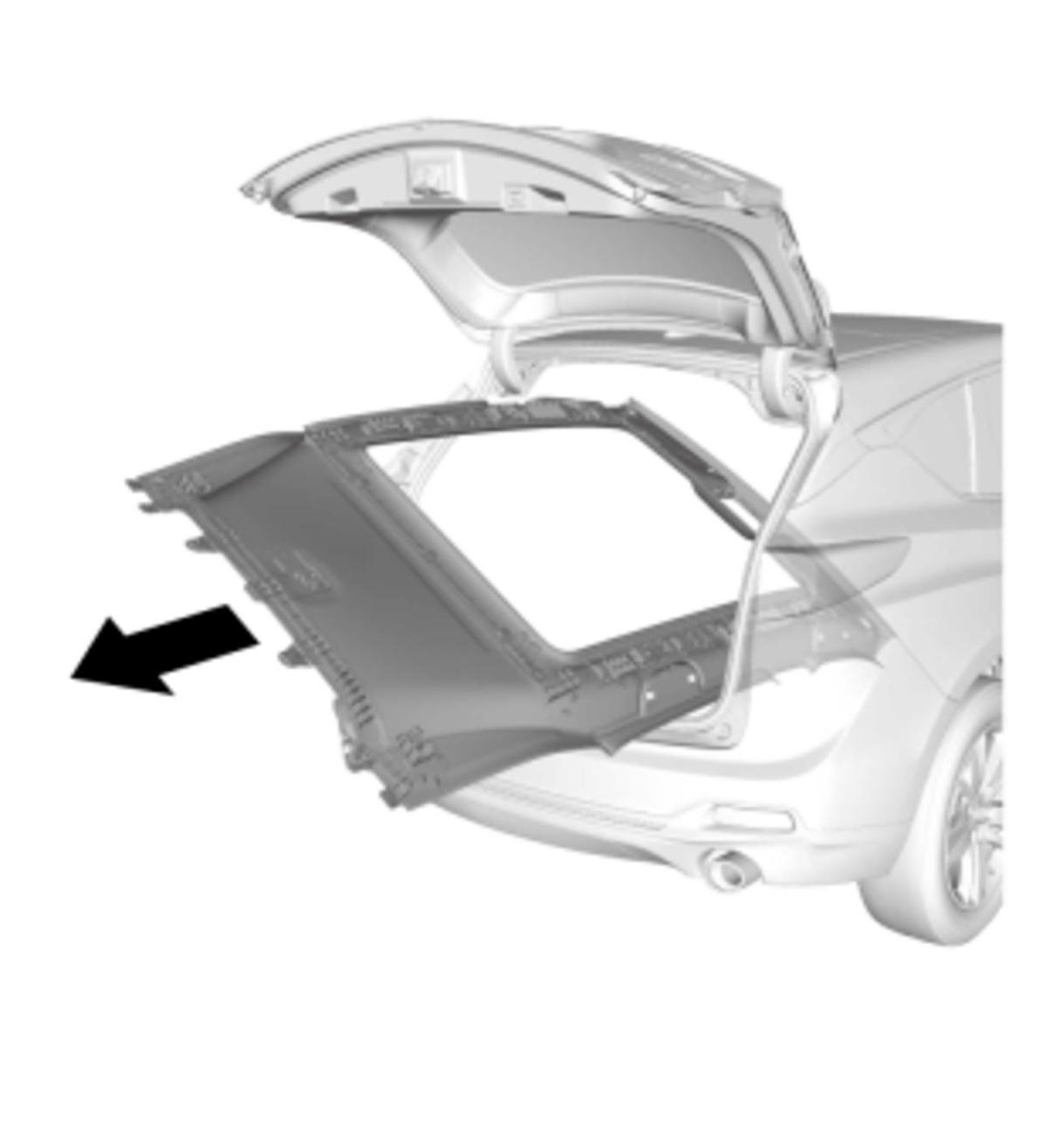

4. Refer to the figure 2.

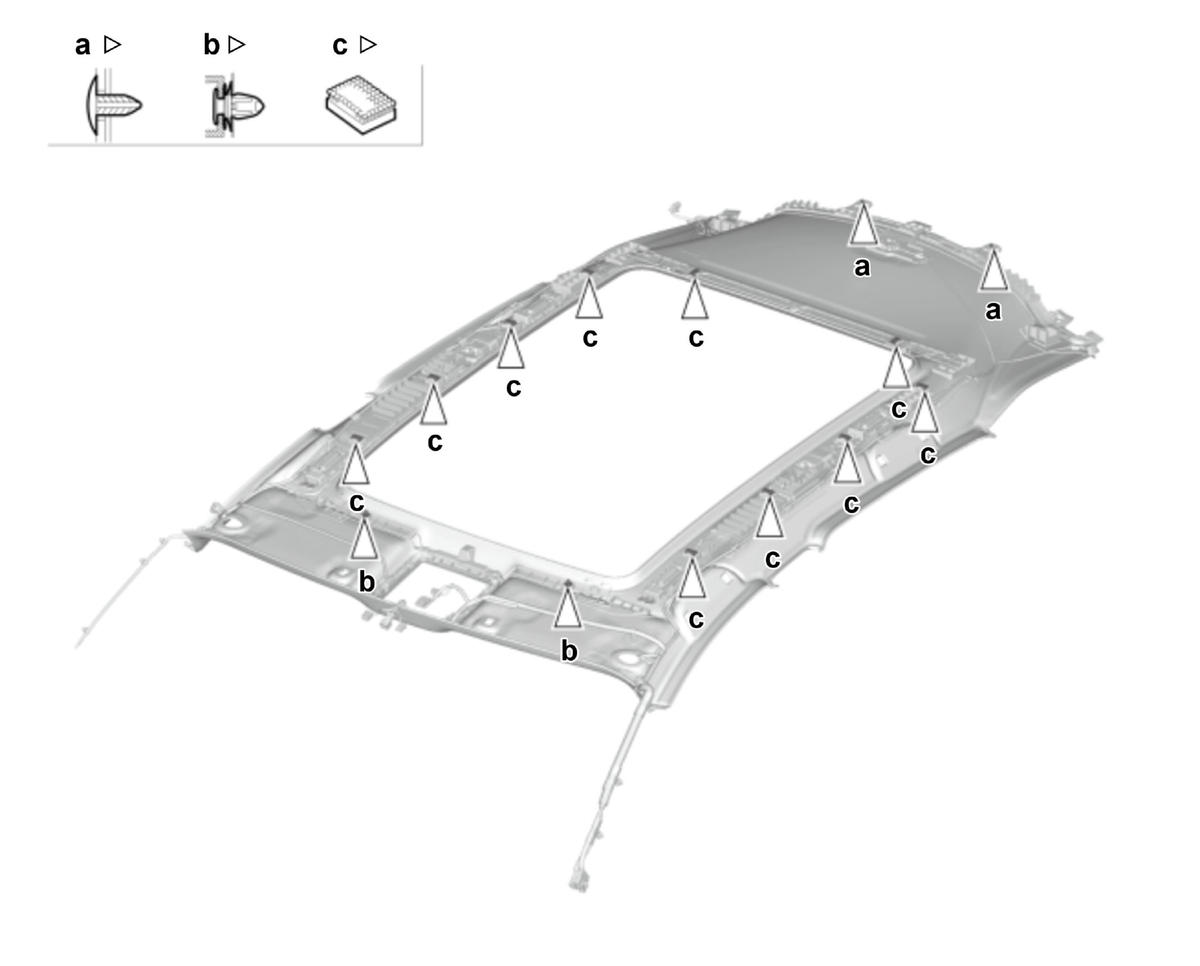

Figure 2

Courtesy of HONDA, U.S.A., INC.

5. Refer to the figure 3.

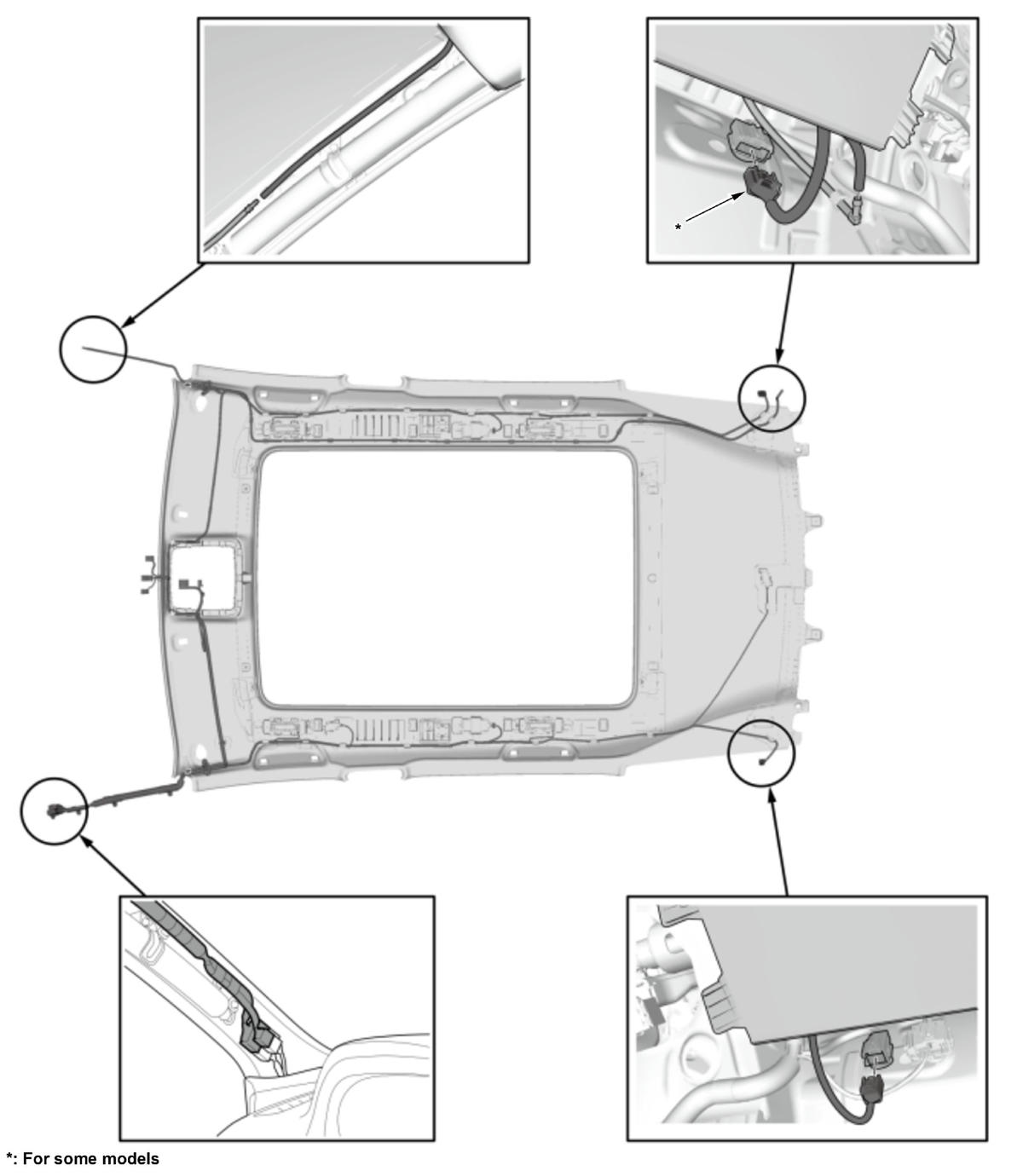

Figure 3

Courtesy of HONDA, U.S.A., INC.

6. Refer to the figure 4.

Figure 4

Courtesy of HONDA, U.S.A., INC.

• Installation

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When using a new headliner, check the headliner and the pillar trim overlap. - Refer to: SRS Component Replacement/Inspection After Deployment or Airbag and Tensioner Disposal
K.
■ Key Information

Do the following before starting your work.

Remove:
- Headliner
■ Sub-Procedure

Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Have an assistant help you when removing and installing the support strut.
- Use eye protection when prying the support strut clips.
NOTE:
- The tailgate support struts should not be removed when the tailgate is closed or not fully open.
- If the tailgate support strut removal with motor is required, remove the other side tailgate support strut without motor at first.
- Support the tailgate with a prop to the vehicle, not to the ground.
• Removal

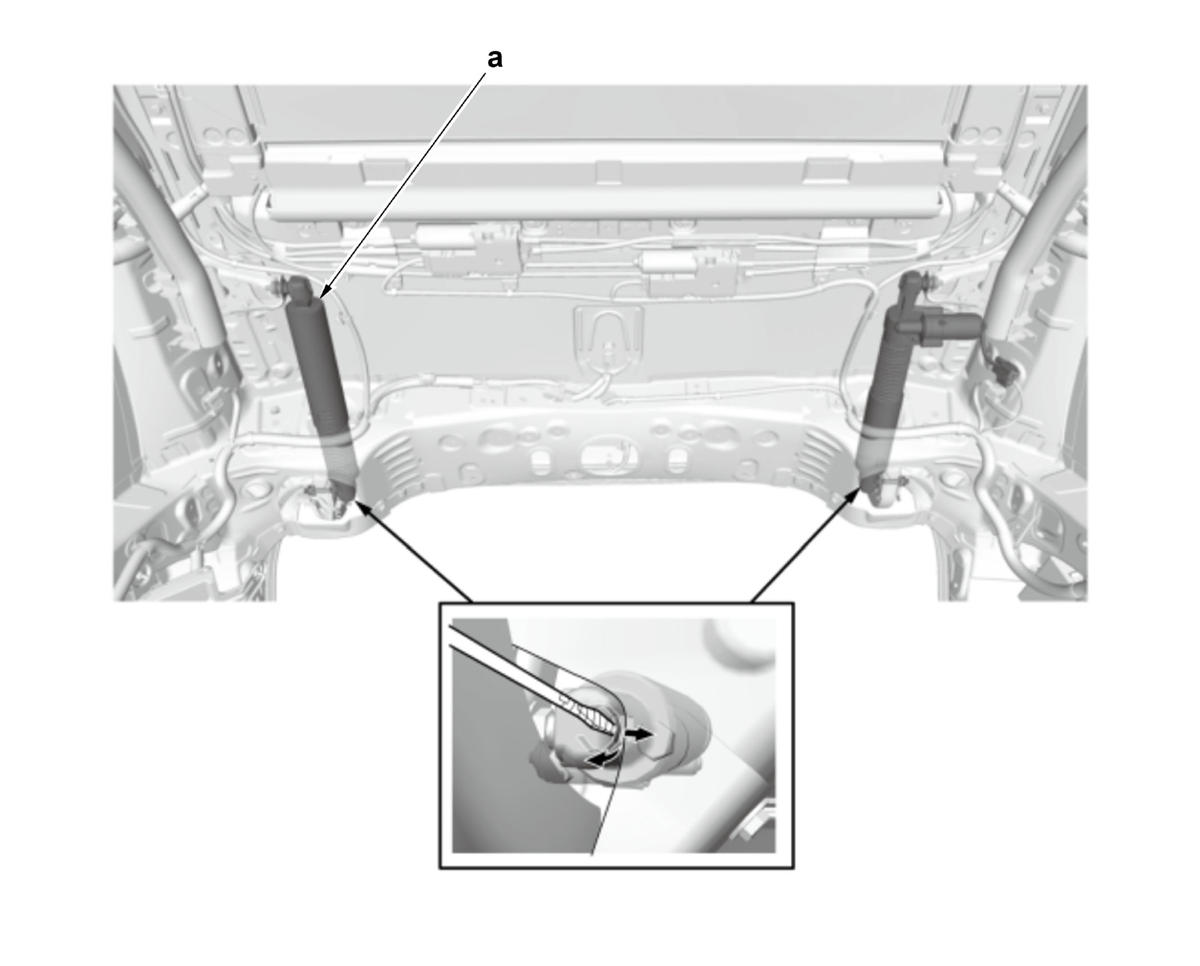

1. Remove the tailgate support strut without motor (a) at first.

NOTE: Do not remove the clips from the support strut.

Courtesy of HONDA, U.S.A., INC.

• Installation
NOTE:
- Install the tailgate support strut with motor before installing the tailgate support strut without motor.
- The tailgate support strut with motor must be installed on the left side.
- Make sure covered spring side is attached to the hinge side.
L.

Courtesy of HONDA, U.S.A., INC.

■ Key Information

Do the following before starting your work.

Remove:
- Tailgate Hinge Trim
■ Sub-Procedure

• Removal

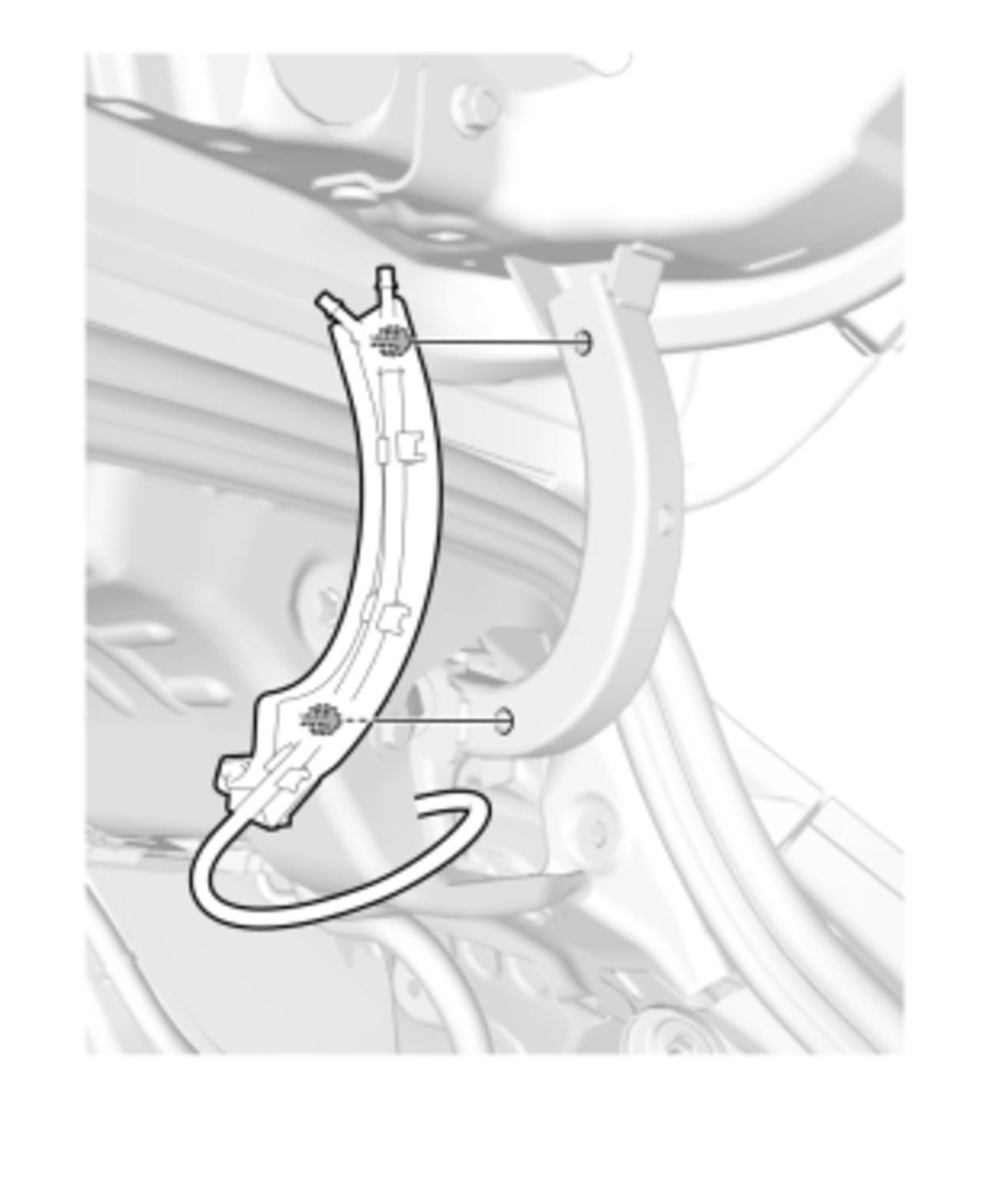

- Refer to the figure.
M.
■ After Installation
- Tailgate Adjustment
N.
NOTE:
- SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
- If you are replacing the side curtain airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: SRS Component Replacement/Inspection After Deployment or Airbag and Tensioner Disposal for a complete list of other parts that must also be replaced.
- Review the interior trim replacement procedure before doing repair or service .
■ Preconditions
- 12 Volt Battery Negative Terminal Disconnected
■ Key Information

Do the following before starting your work.

Remove:
- Headliner
• Installation
NOTE:
- Before installing the headliner, make sure the SRS indicator works normally.
- If the side curtain airbag is frayed, or has any other visible damage, replace it. Do not attempt to repair an airbag.
- When you install the side curtain airbag, make sure it is not twisted, and that it is not caught between the inflator bracket by the bracket bolts.
- Make sure that the side curtain airbag inflator retainer is installed properly. Otherwise the side curtain airbag could incorrectly deploy and cause damage or injuries.
- If there is any damage to the side curtain airbag, do not try to repair it. Replace any damaged side curtain airbag.
■ After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

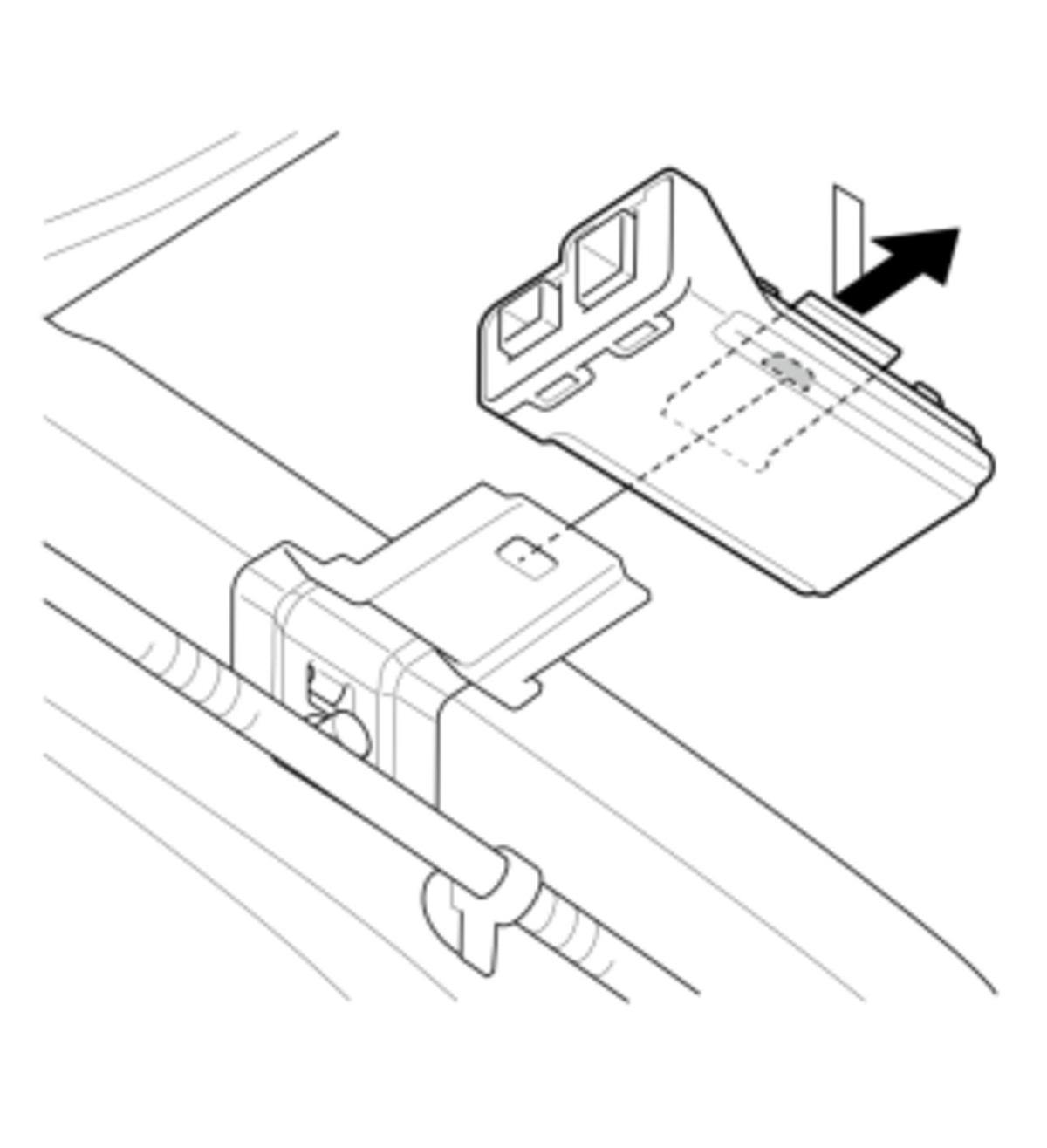

O.

Courtesy of HONDA, U.S.A., INC.

■ Key Information

Do the following before starting your work.

Remove:
- Headliner
■ Sub-Procedure

• Removal

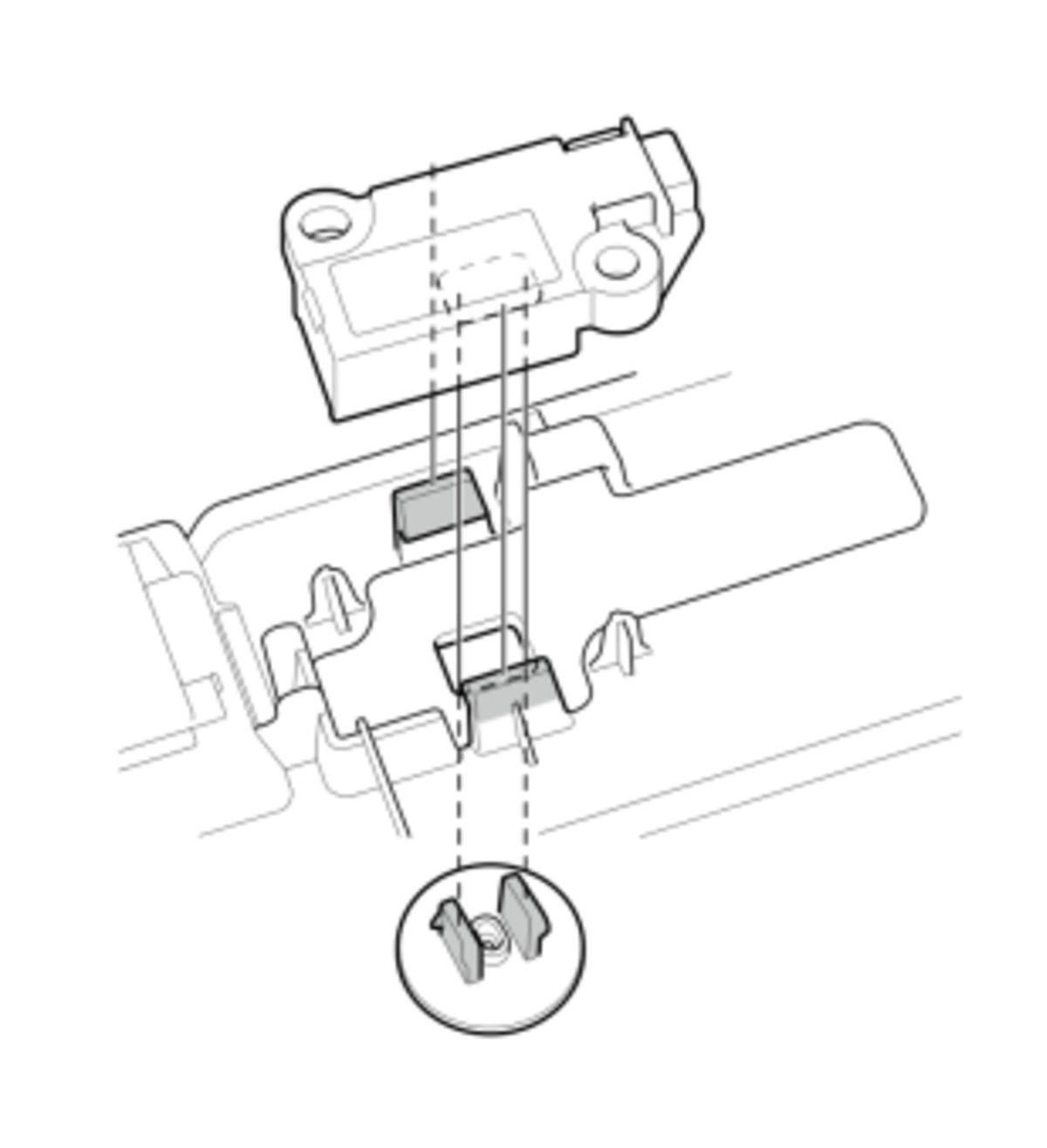

- Refer to the figure.

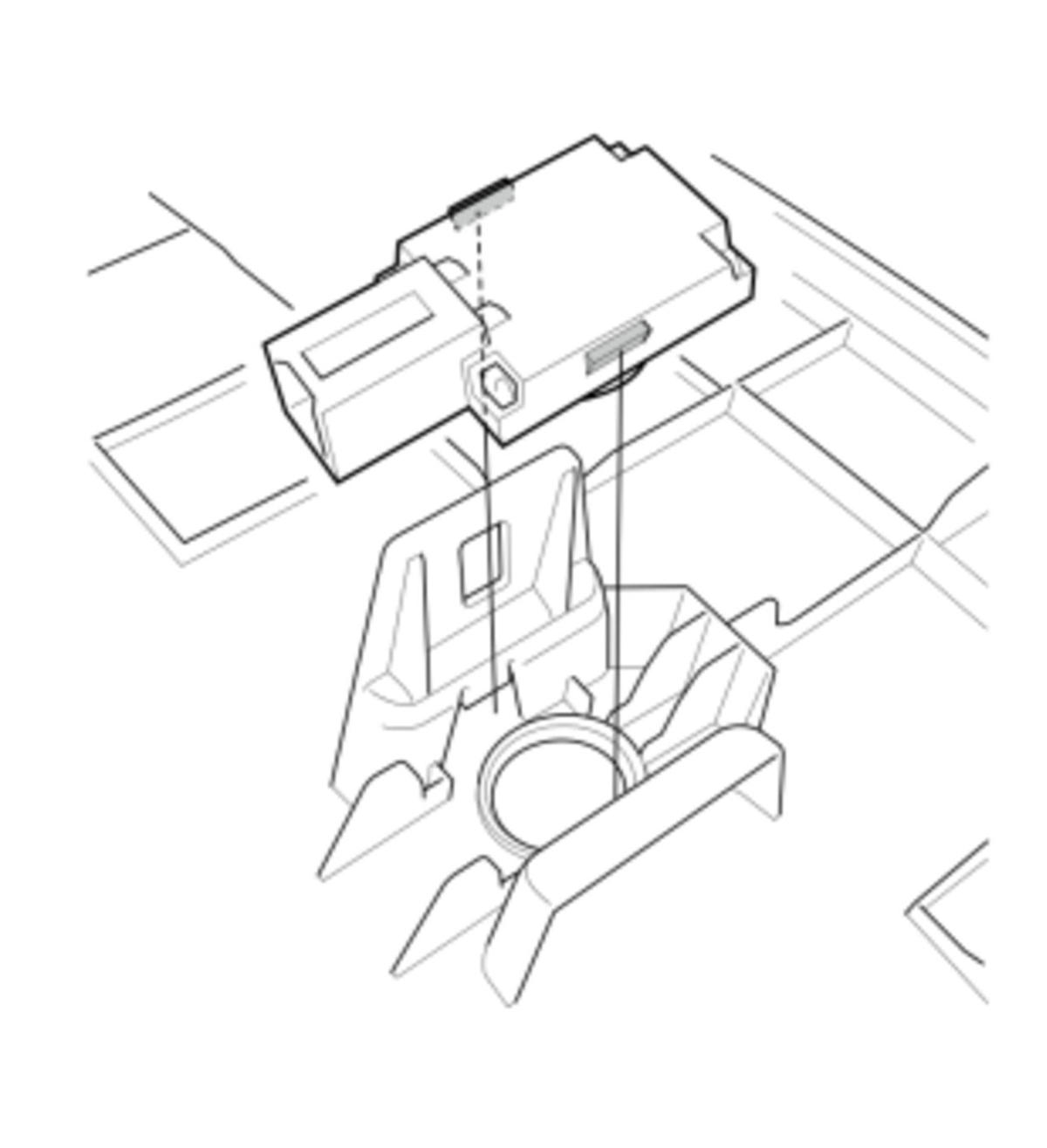

P.

Courtesy of HONDA, U.S.A., INC.

■ Key Information

Do the following before starting your work.

Remove:
- Headliner
■ Sub-Procedure

• Removal
- Refer to the figure.

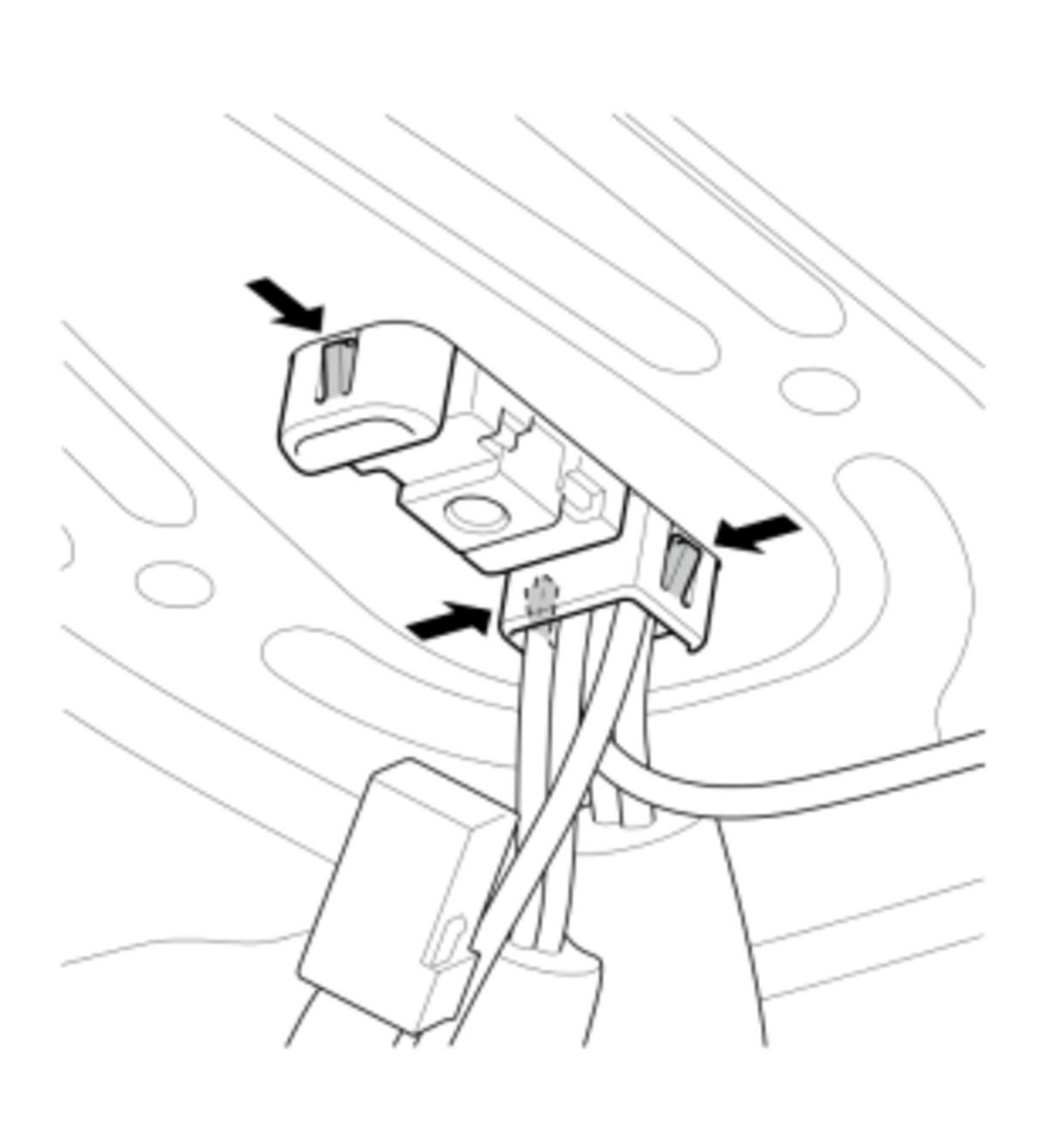

Q.

Courtesy of HONDA, U.S.A., INC.

■ Key Information

Do the following before starting your work.

Remove:
- Headliner
■ Sub-Procedure

• Removal
- Refer to the figure.
R.
■ After Installation
- Headliner/Pillar Trim Overlap Check - Refer to: SRS Component Replacement/Inspection After Deployment or Airbag and Tensioner Disposal
S.

Courtesy of HONDA, U.S.A., INC.

■ Key Information

Do the following before starting your work.

Remove:
- Rear Roof Trim
■ Sub-Procedure

• Removal
- Refer to the figure.
