Wireless Charger System Description
Overview
Some models come equipped with the wireless charger. The wireless charger can charge the battery (like a smartphone) that is placed on top of the wireless charger, without the charging cable. This system uses the law of electromagnetic induction.
Basic Control
The wireless charger system begins to charge a battery of a wireless device (like a smartphone) as soon as it detects the device on the wireless charger. When a remote communicates to the body control module by LF communication, the charger momentarily stops charging so it will not interfere with the keyless access system.
LED Indicator Function
As charging starts, the green indicator turns on, and as charging stops, the indicator will come off. When a failure occurs, the indicator will flash.
| Operation Mode State | Indicator | |
|---|---|---|
| Green | Amber | |
| Standby | OFF | OFF |
| Device Detection | ON (Before Detected) OFF (After Detected) | OFF (Before Detected) ON (After Detected) |
| Power Transfer | OFF | ON |
| Break | ON | OFF |
| Abnormal Termination | FLASH 1 | FLASH 1 |
| Hardware Failure | OFF | FLASH 1 |

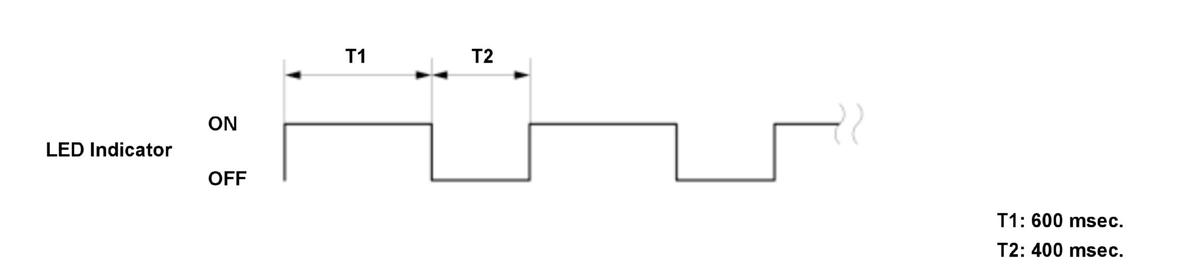

Flash pattern is as follows:
Flash 1
Failsafe Function
If charging coil, overcurrent, built-in fan or thermistor abnormality is detected, charging is stopped.
