Active Damper Control Unit Replacement

Press the engine start/stop button to select the OFF mode.
Remove the rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
Disconnect active damper control unit connector A (20P) and B (14P).

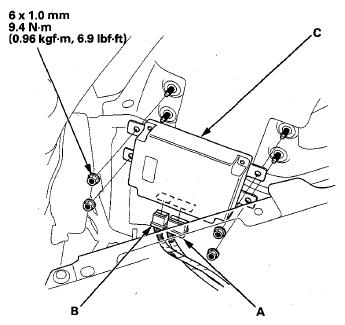

Fig 1: Active Damper Control Unit Connector A (20P) And B (14P) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mounting nuts, and pull out the active damper control unit (C).
Install the active damper control unit in the reverse order of removal.
NOTE: Do not pinch the wire harnesses between the frame and the active damper control unit.
Do the memorizing rear suspension full rebound position (see MEMORIZING REAR SUSPENSION FULL REBOUND POSITION ).
Start the engine, then make sure there are no active damper system DTCs with the HDS (see HOW TO RETRIEVE DTCS AND FREEZE DATA WITH THE HDS (HONDA DIAGNOSTIC SYSTEM) ).
Do the DAMPER FORCE OPERATION TEST in the FUNCTIONAL TESTS MENU with the HDS, then make sure all four damper units function normally.
Test-drive the vehicle, and check that the active damper system indicator does not come on (see ACTIVE DAMPER SYSTEM DAMPER UNITS ).
