Right Fog Light Connector End View

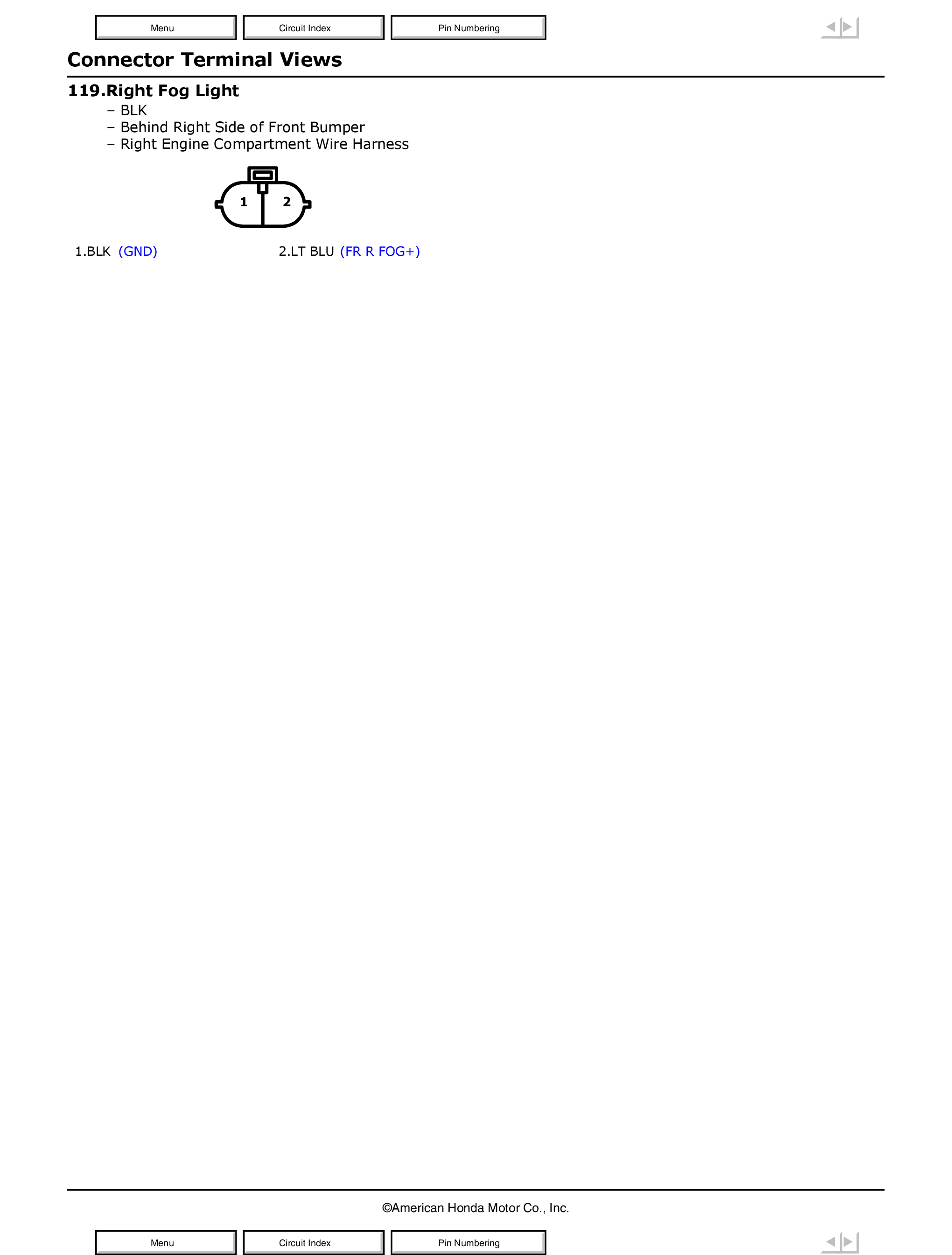

Fig 1: Right Fog Light Connector End View
GHHW12536Courtesy of AMERICAN HONDA MOTOR CO., INC.

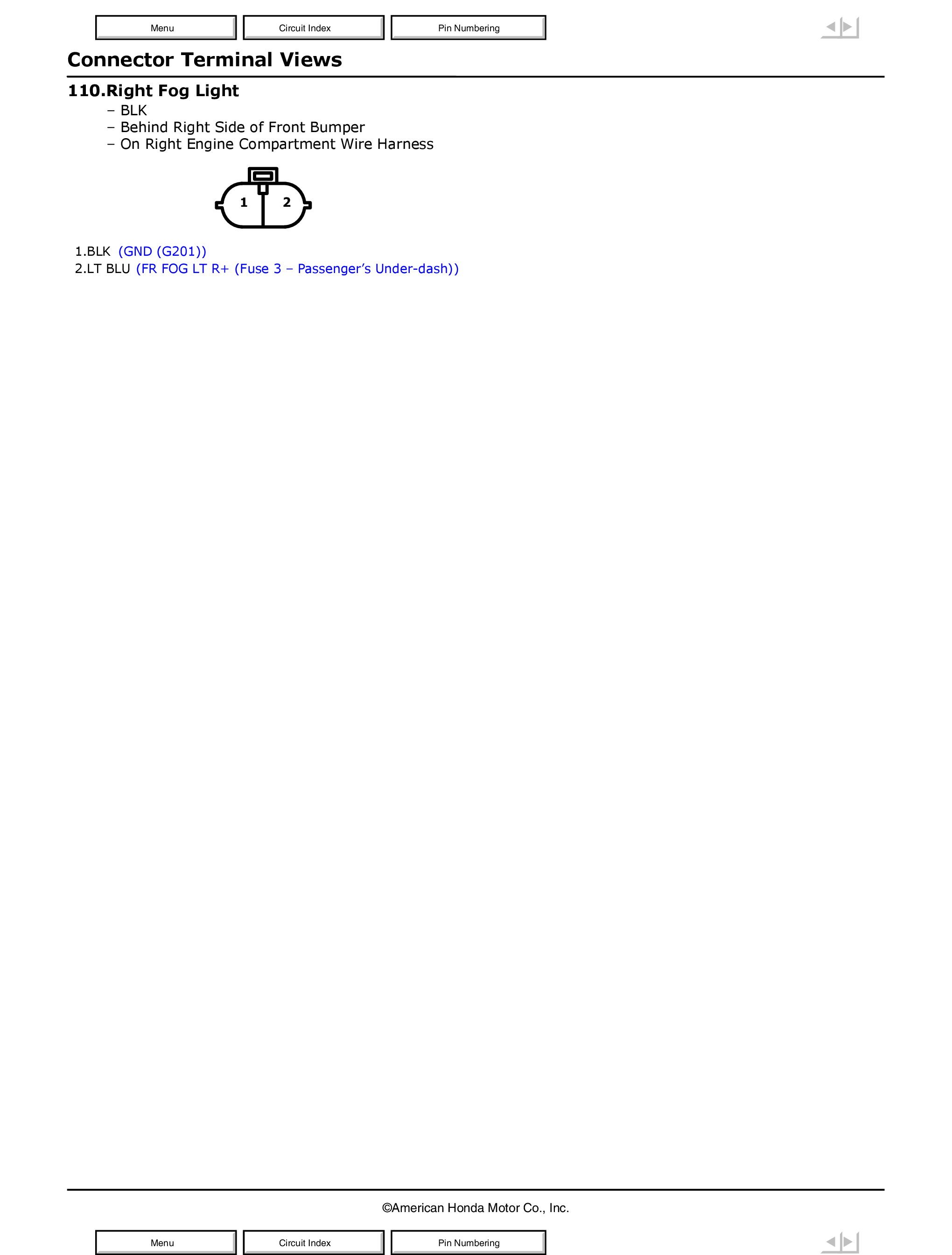

Fig 1: Right Fog Light Connector End View
GHHW12972Courtesy of AMERICAN HONDA MOTOR CO., INC.
