Washer Fluid Level Switch Test

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connector (A) from the washer fluid level switch (B).

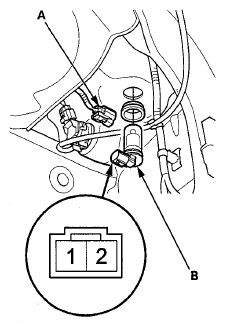

Fig 1: Locating 2P Connector And Washer Fluid Level Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the washer fluid level switch from the washer reservoir.
NOTE: Fluid may flow out of the opening.
Check for continuity between the terminals in each switch position according to the table.

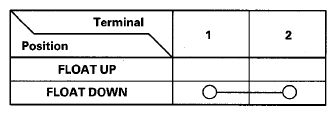

Fig 2: Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch (see WIPER ARM REPLACEMENT ).
