Acura
>>
2012
>>
TL Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Warning Systems
>>
Safety Indicator System
>>
Circuit Diagram
Circuit Diagram

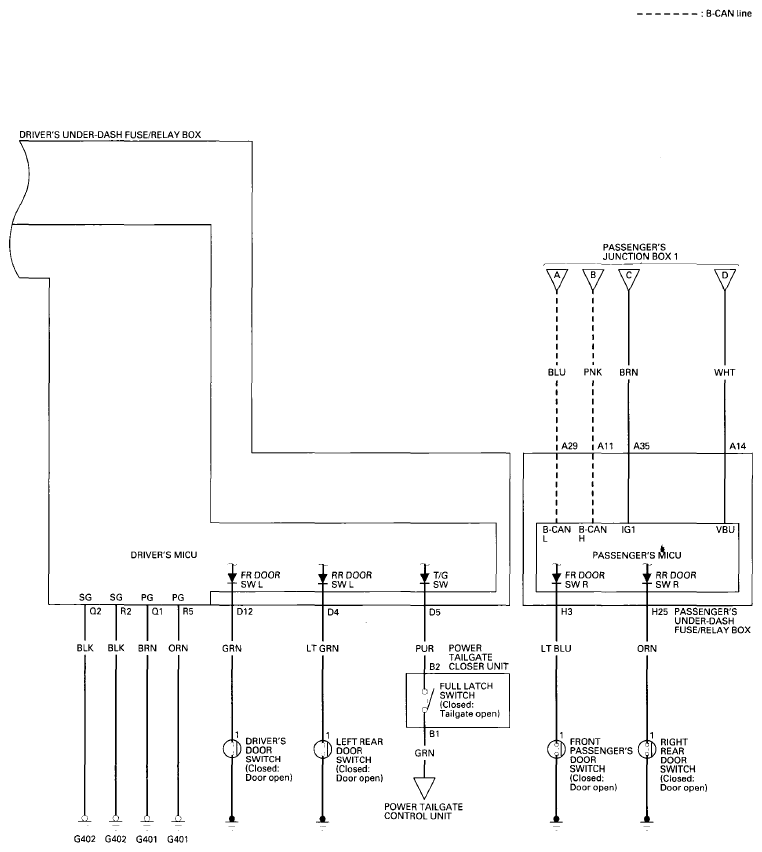

Fig 1: Safety Indicator System - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

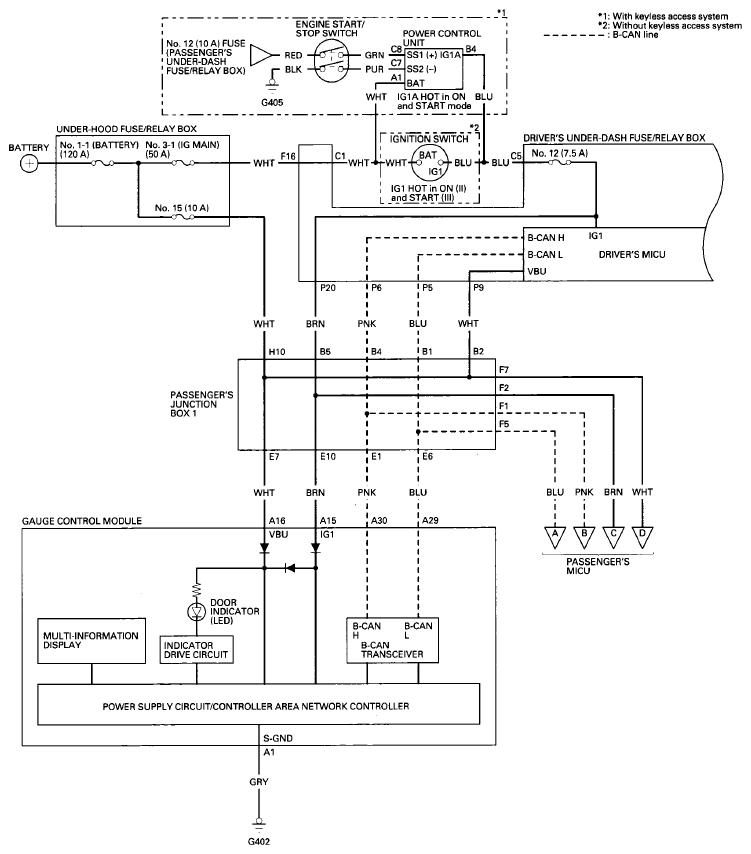

Fig 2: Safety Indicator System - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
