Component Location Index

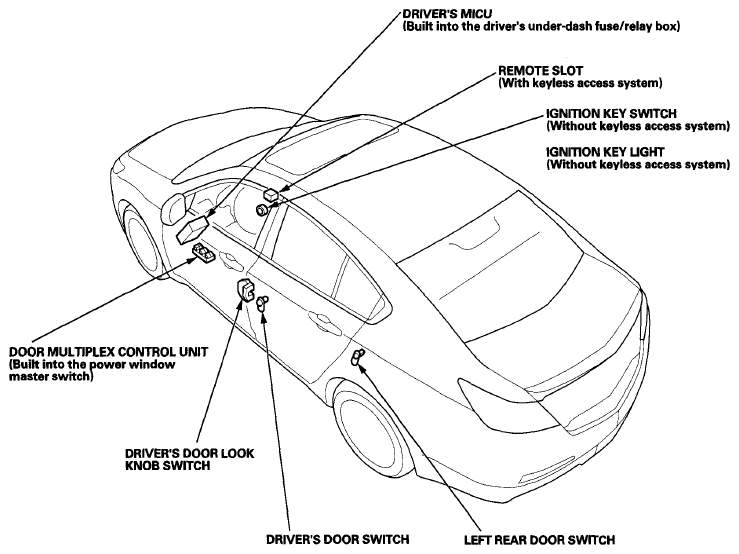

Fig 1: Entry Lights Control System Components Location (1 Of 2)
G08067478Courtesy of AMERICAN HONDA MOTOR CO., INC.

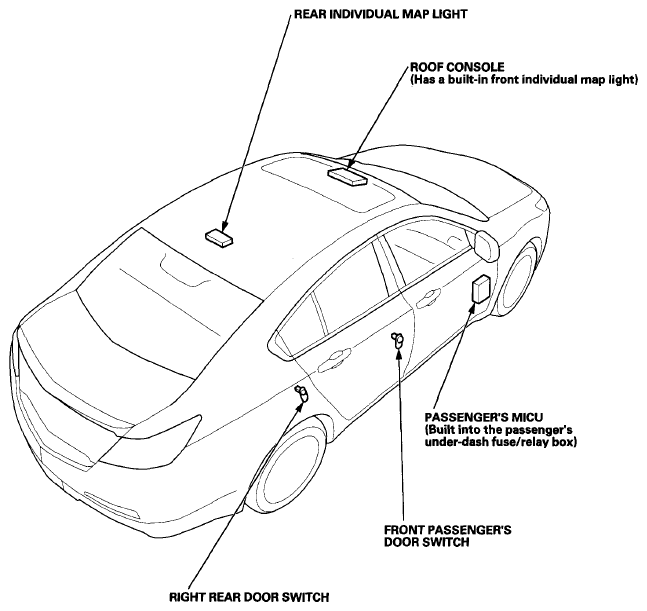

Fig 2: Entry Lights Control System Components Location (2 Of 2)
G08067479Courtesy of AMERICAN HONDA MOTOR CO., INC.
