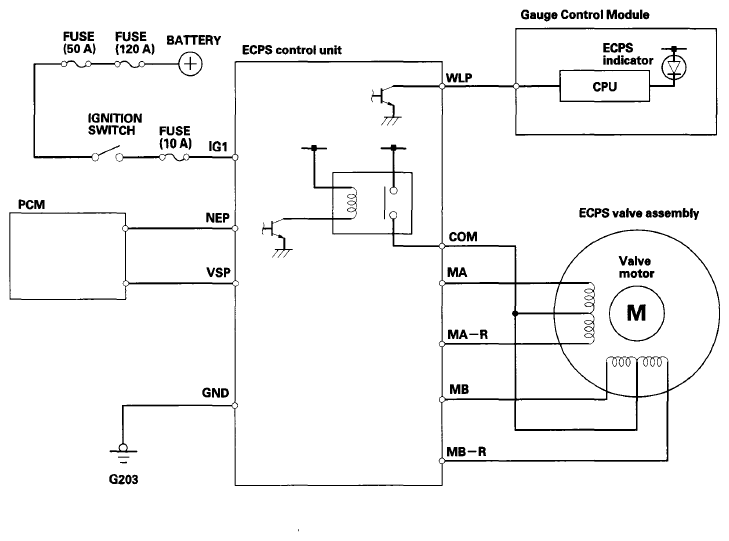

ECPS control unit
The ECPS control unit drives the valve motor built inside the ECPS valve assembly depending on the engine speed signal and the vehicle speed signal from the PCM. When a failure occurs, this unit stores a DTC and sends a signal to the gauge control module to turn on the ECPS indicator.
