C931 Connector End View (View 405)
C931 Connector End View (View 405)
WHT
Under front passenger's seat
Connects right side wire harness (front branch) to front passenger's seat wire harness

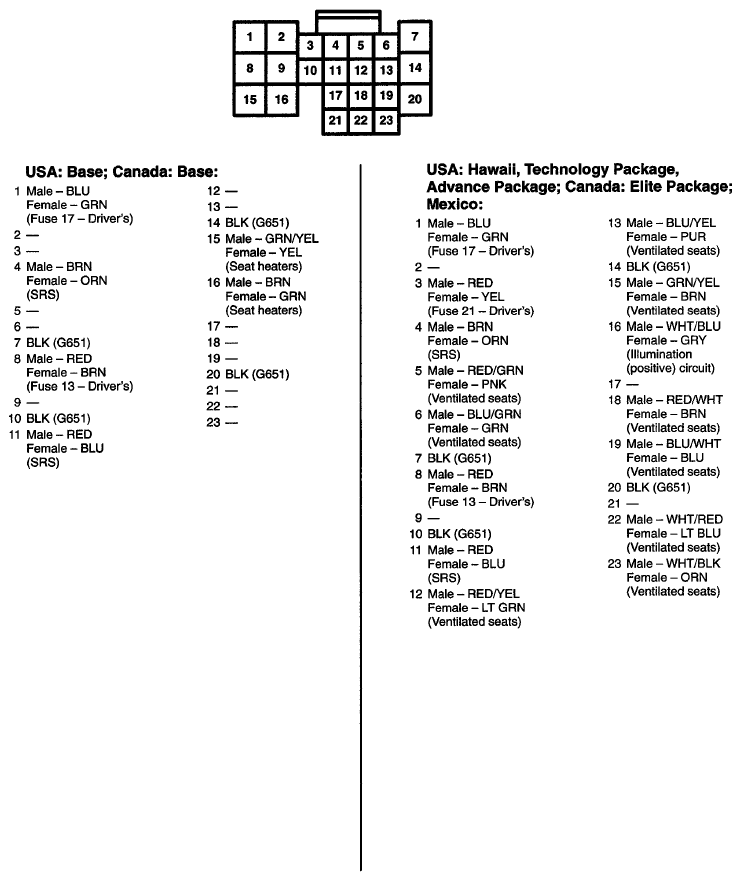

Fig 1: C931 Connector Terminals (View 405)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
