C773 Connector End View (View 398)
C773 Connector End View (View 398)
WHT
Front passenger's door
Connects front passenger's door wire harness A to front passenger's door wire harness B

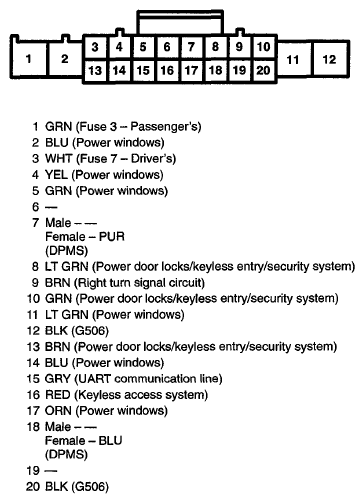

Fig 1: C773 Connector Terminals (View 398)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
