C698 Connector End View (View 313)
C698 Connector End View (View 313)
GRY
Rear differential
Connects rear differential sub-harness A to floor sub-harness

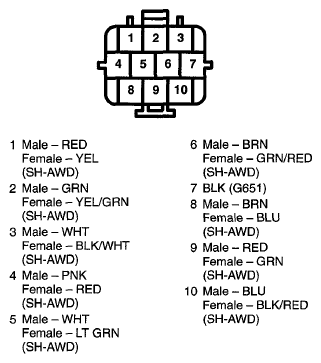

Fig 1: C698 Connector Terminals (View 313)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
