C653 Connector End View (View 403)

• WHT
• Behind rear seat
• Connects left side wire harness (rear branch) to right side wire harness (rear branch)

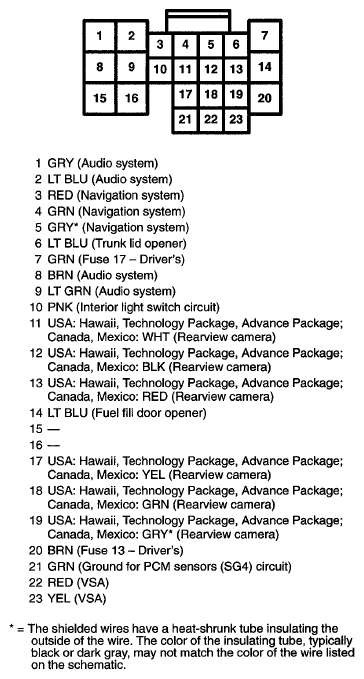

  Fig 1: C653 Connector Terminals (View 403)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
