C651 Connector End View (View 421)

• WHT
• Behind right kick panel
• Connects dashboard wire harness (right branch) to right side wire harness (front branch)

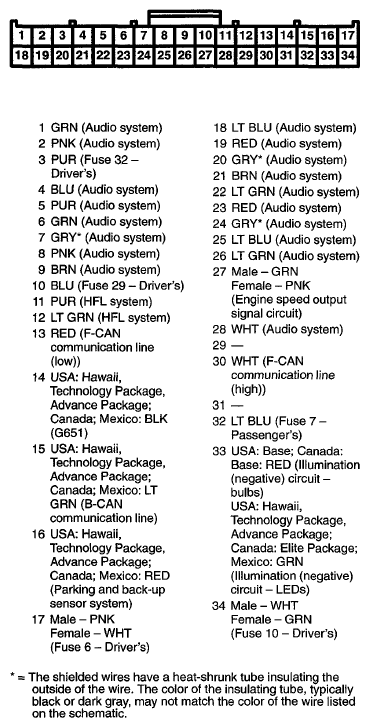

  Fig 1: C651 Connector Terminals (View 421)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
