C631 Connector End View (View 410)

• WHT
• Behind left kick panel
• Connects left side wire harness (front branch) to roof wire harness

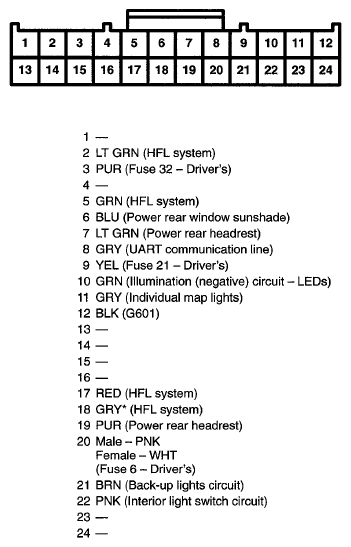

  Fig 1: C631 Connector Terminals (View 410)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
