C604 Connector End View (View 387)

• YEL/WHT
• Behind middle of dash
• Connects left side wire harness (front branch) to right side wire harness (front branch)

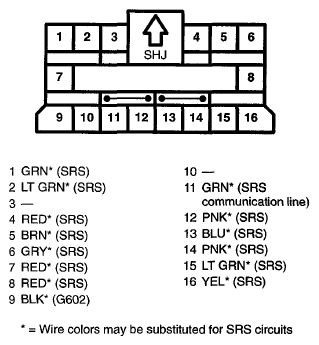

  Fig 1: C604 Connector Terminals (View 387)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = Wire colors may be substituted for SRS circuits
