C304 Connector End View (View 252)

WHT
Behind left kick panel
Connects engine compartment wire harness (dash branch) to left side wire harness (front branch)

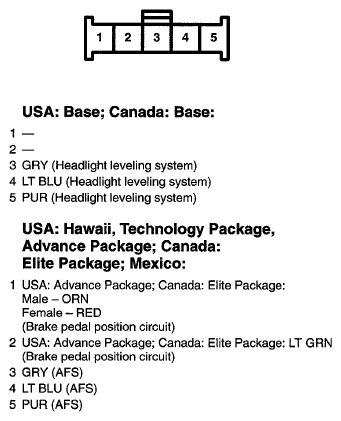

Fig 1: C304 Connector Terminals (View 252)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
