Side Engine Mount Removal and Installation: Removal

  1. Lift and support the engine with a jack and a wood block under the oil pan.
  2. Remove the ground cable (A), then remove the upper half of the side engine mount bracket (B).

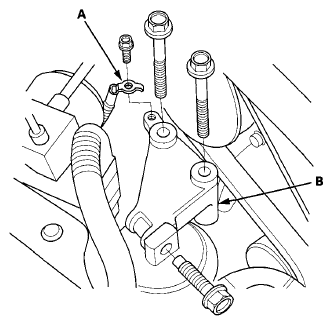

    Fig 1: Removing Upper Half Of Side Engine Mount Bracket
    G07361673Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the side engine mount (A).

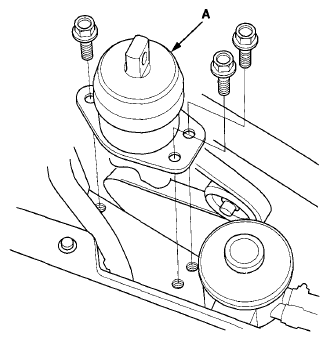

    Fig 2: Removing Side Engine Mount
    G07361674Courtesy of AMERICAN HONDA MOTOR CO., INC.
