Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Power Distribution
>>
Driver's Under-dash Fuse/Relay Box - Fuse 21
Driver's Under-dash Fuse/Relay Box - Fuse 21

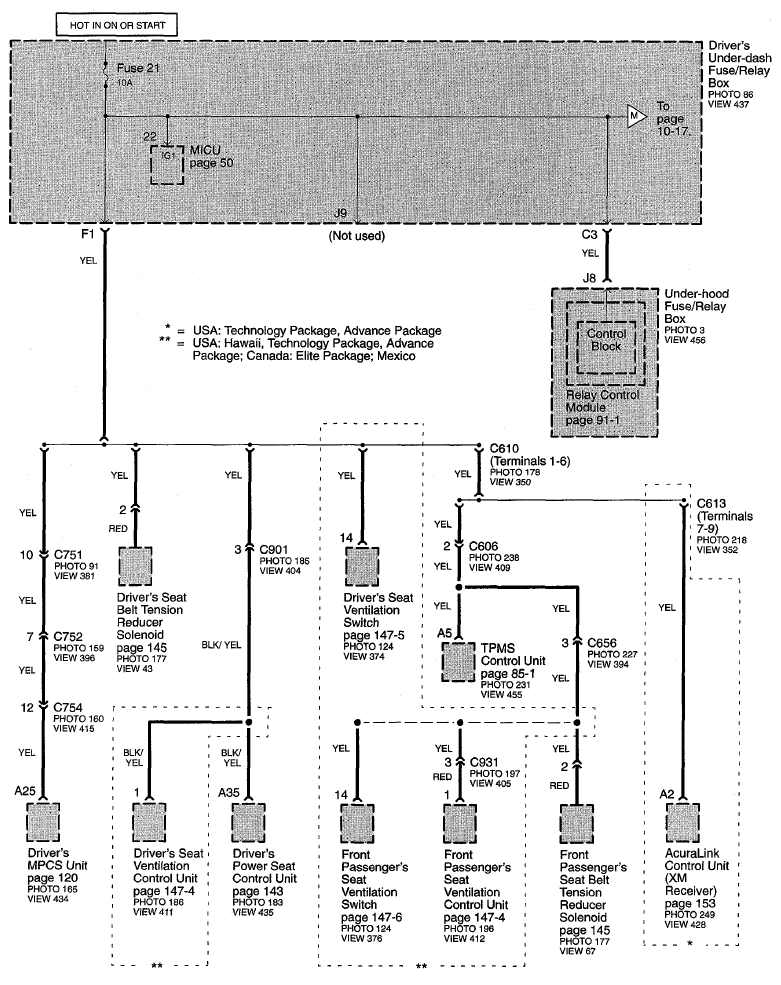

Fig 1: Power Distribution Circuit Diagram (Page 10-16)

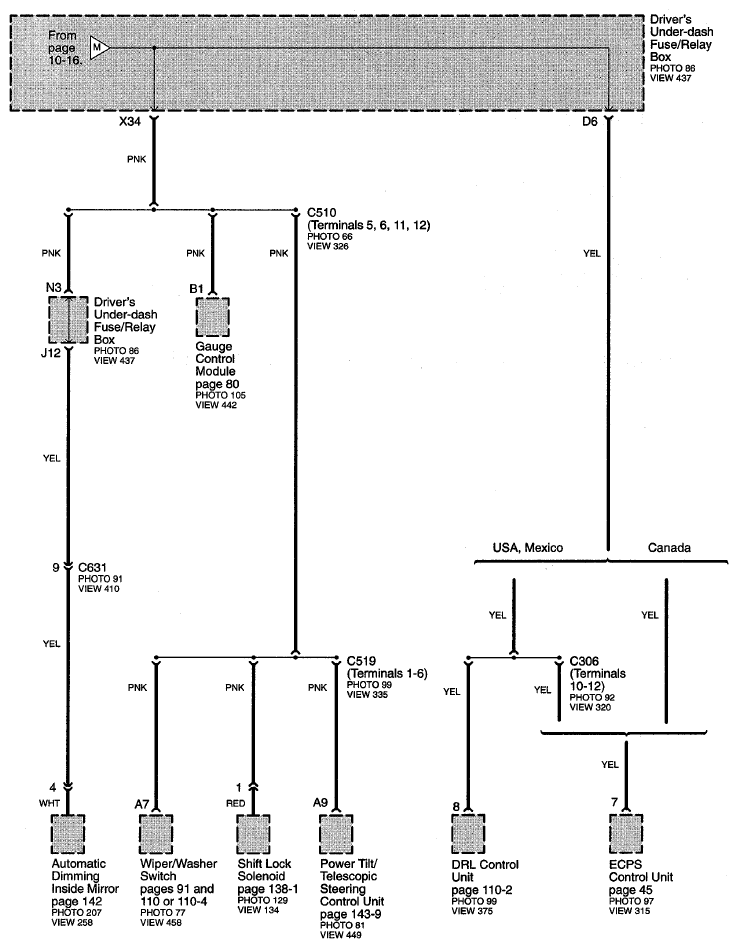

Fig 2: Power Distribution Circuit Diagram (Page 10-17)
