Repair and Diagnosis
>>
Body & Frame
>>
Mirrors
>>
Power Mirrors
>>
Circuit Diagram
Circuit Diagram

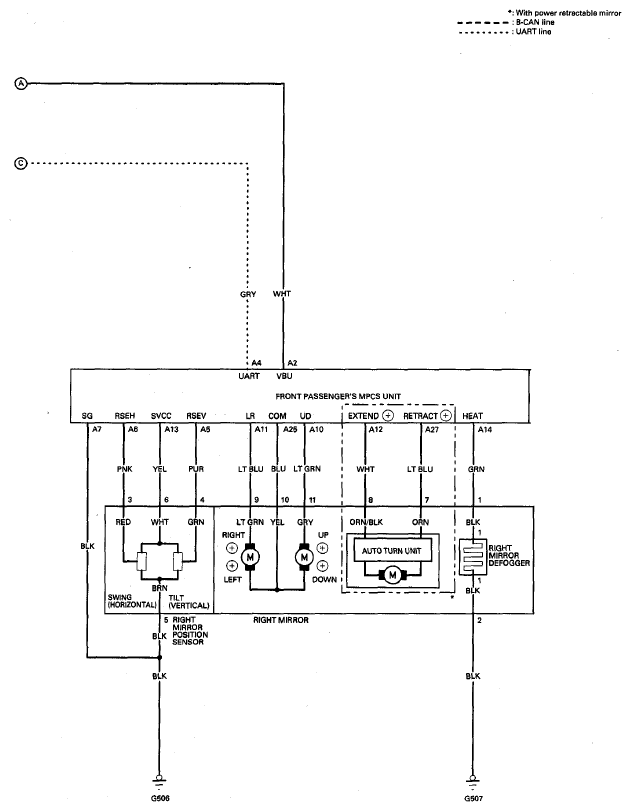

Fig 1: Power Mirror - Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

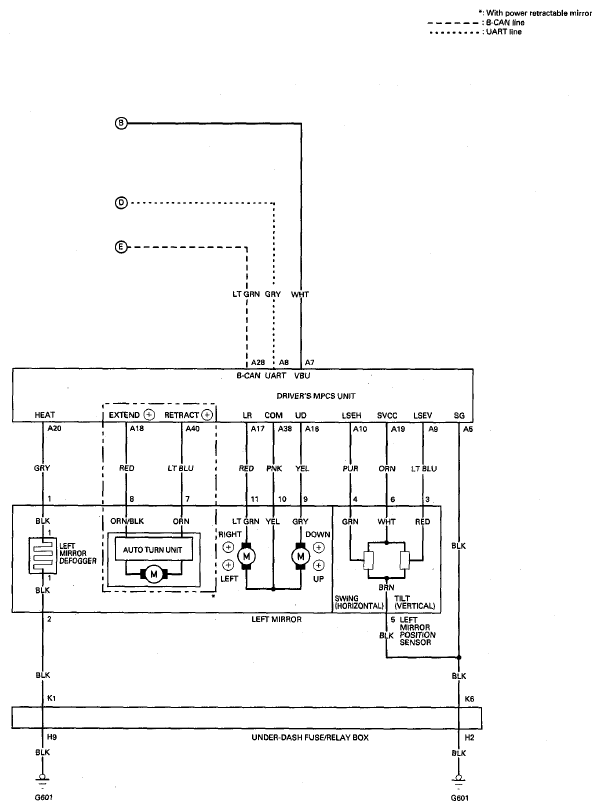

Fig 2: Power Mirror - Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

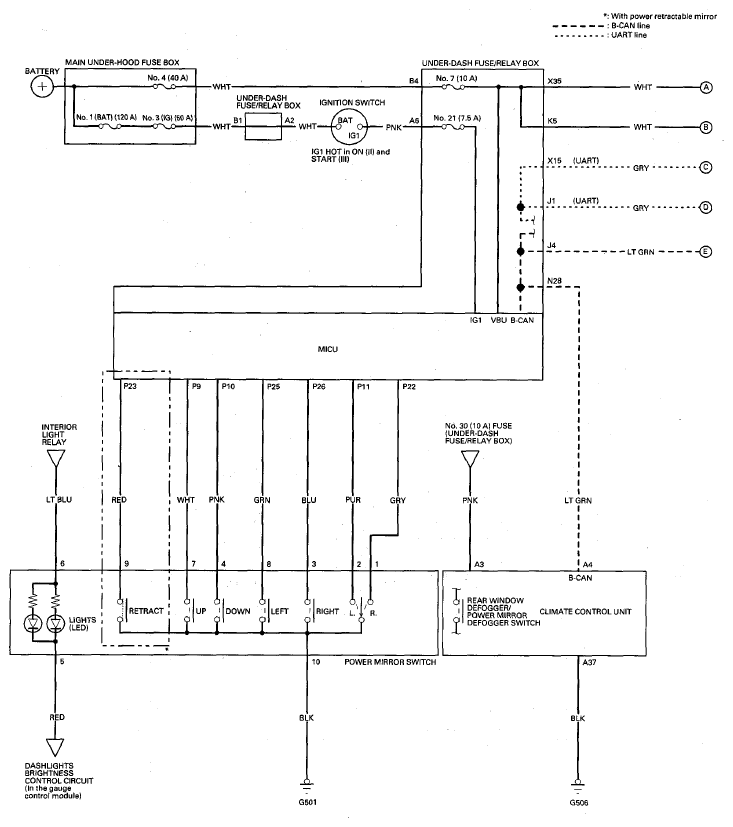

Fig 3: Power Mirror - Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
